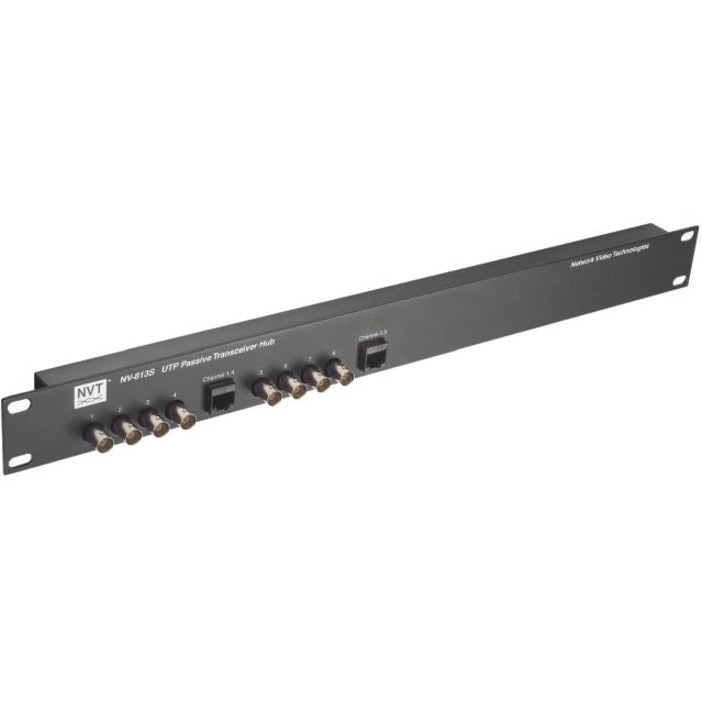

NVT Phybridge 8-Channel Video Transceiver Hub

NVT Phybridge 8-Channel Video Transceiver Hub

SKU: 1058939769      MFR: Phybridge Inc

Product Description

NVT Phybridge 8-Channel Video Transceiver Hub - 3280.84 ft Range - 2 x Network (RJ-45) - Twisted Pair - Category 5 - Rack-mountable Wall Mountable

Manufacturer : Phybridge Inc

Manufacturer Part No : NV-813S

Product Details

Product TypeVideo Extender Transceiver
Twisted Pair Cable StandardCategory 5
Maximum Operating Distance3280.84 ft
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Connectivity TechnologyWired
Brand NameNVT Phybridge
Form FactorRack-mountable
ManufacturerPhybridge Inc
Product ModelNV-813S
Product Name8-Channel Video Transceiver Hub
Manufacturer Part NumberNV-813S
Manufacturer Website Addresshttp://www.phybridge.com
Marketing InformationFeatures:
  • Compact rack mountable 19" 1U high enclosure features 8 channels and only 1.54" (40mm) deep
  • Use with any NVT passive transceiver or hub for full motion CCTV at distances up to 750ft (225m)
  • Use with any NVT DigitalEQTM Hub or active receiver as a rack-mountable passive transmitter for distances up to 3000ft (1km)
  • Use with any NVT StubEQTM for distances up to 1500ft (460m)
  • RJ45 video connectivity with optional NV-RJ45A RJ45-to-screw terminal adaptors included
  • No power required
  • Exceptional interference rejection
  • Built-in transient protection
  • Supports "up-the coax" type control signal up to 750ft (225m)
  • Compatible with qualified UTP cameras
  • Limited lifetime warranty
The NVT Model NV-813S is a compact 8-channel passive transceiver hub that allows transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

"Up-the-coax" type signal may be sent over the same wire pair at distances up to 750ft (225m).
The unparalleled interference rejection ability of the Model NV-813S Hub allows video signals to co-exist in the same wire bundle as telephone datacom or low-voltage power circuits. Perfect for larger CCTV installations where port density and camera number growth are prevalent. With built-in transient protection damaging voltage spike problems are eliminated.
Package Contents
  • 8-Channel Video Transceiver Hub
  • 8 x NV-RJ45A RJ45 to Screw Terminal Adapters
  • Rack Mounting Screws and Screw Driver
Limited WarrantyLifetime
