• 10.5cm x 5.4cm x 3.4cm (LxWxH)
• 4.15" x 2.11" x 1.33" (LxWxH)
• 2? Coax Cable

The NVT Phybridge 1701+ Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch delivering up to 420Mbps and PoE+ over Coax single pair UTP or 2 wire infrastructures with reach of up to 8000ft (2.4km) on RG6. That's 24X the reach of standard Ethernet switches thus removing the costs and disruptions associated with multiple IDF location requirements.

With the 1701+ Extender Solution IP IoT devices can be connected to the existing Coax UTP or 2 wire cabling infrastructure delivering optimal performance while saving cost time and environmental e-waste. Furthermore the cost savings realized by using the 1701+ Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE 802.3at/af compliant IoT devices including IP-enabled phones cameras access control speakers and even facilities lighting.

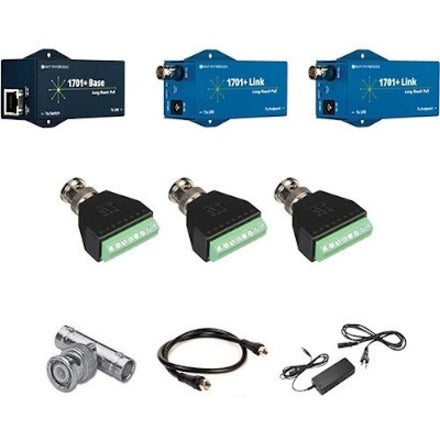

• 1 x 1701+ Base Extender (NV-EC1701PLS-BSE)
• 2 x 1701+ Link Adapter (NV-EC1701PLS-LK)
• 1 x NV-PS55-110W Power Supply with IEC line cord
• 3 x BNC Screw Terminal Adapter (NV-BNCA)
• 1 x BNC "T" Adapter (NV-BNCT)
• 1 x 2? Coax Cable

138g (4.87oz)
