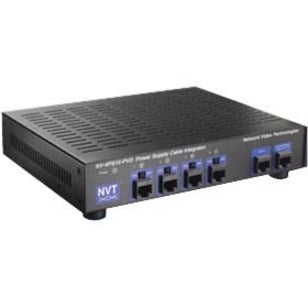

• NVT Phybridge NV-4PS10-PVD PoE Injector Hub
    NVT Phybridge NV-4PS10-PVD PoE Injector Hub
1 1

NVT Phybridge NV-4PS10-PVD PoE Injector Hub

NVT Phybridge NV-4PS10-PVD PoE Injector Hub

SKU: 1018876612      MFR: Network Video Technologies

Product Description

NVT Phybridge NV-4PS10-PVD PoE Injector Hub - 120 V AC 230 V AC Input - 125 W

Manufacturer : Network Video Technologies

Manufacturer Part No : NV-4PS10-PVD

Features

  • Provides Class 2 SELV camera power and pass-through video and telemetry dataconnectivity for up to 4 cameras each via a single RJ45 4-pair UTP cable
  • Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
  • Independently selectable 24 or 28VAC with 1 Amp max per channel
  • Automatic-reset fault protection; transient protection
  • Individually floating outputs ensure total ground-loop immunity
  • Frequency response DC to 10MHz (see Recommended Distance Chart)
  • Diagnostic LEDs show load/no load miswires and overload conditions
  • Use with the NV-216A-PV or NV-218A-PVD transceivers or the NV-226J-PV transmitter at the camera
  • Power cameras via UTP over significant distances (see Power Distance Chart)
  • 1.75" high x 7.25" deep x 9.25" wide wall or desk mount

Product Details

Product TypePoE Injector Hub
Brand NameNVT Phybridge
Compatibility

NVT Products:

  • NV-216A-PV Transceiver
  • NV-218A-PVD Transceiver
  • NV-226J-PV Transmitter
Form FactorDesktop/Wall Mountable
ManufacturerNetwork Video Technologies
Product ModelNV-4PS10-PVD
Product NameNV-4PS10-PVD PoE Injector Hub
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberNV-4PS10-PVD
Manufacturer Website Addresshttp://www.nvt.com
Marketing InformationNV-4PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data for up to 4 cameras all over UTP wire. Designed for installation in the wiring/IDF telecom closet or at the Control/MDF room the NV-4PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts.

At the camera Power Video and Data connections are made using a PVD™ transceiver via an RJ45 connector and a single 4-pair cable. Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. P/T/Z telemetry data if required passes through the NV-4PS10-PVD's data path and is connected to the controller via a second 4-pair RJ45 cable.
Limited WarrantyLifetime
Weight (Approximate)7 lb
Certifications & StandardsCE
cULus
Depth7.3"
Width9.3"
Height1.8"
Maximum Output Power125 W
Environmental CertificationWEEE
Environmentally FriendlyYes
Additional Information
  • Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
  • Independently selectable 24 or 28VAC with 1 Amp max per channel
  • Automatic-reset fault protection; transient protection
  • Individually floating outputs ensure total ground-loop immunity
  • Diagnostic LEDs show load/no load miswires and overload conditions
  • Frequency response DC to 10 MHz
Maximum Frequency60 Hz
Environmental CertificationRoHS
Maximum Input Current1.25 A
View full details
$350.99 USD
$350.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
