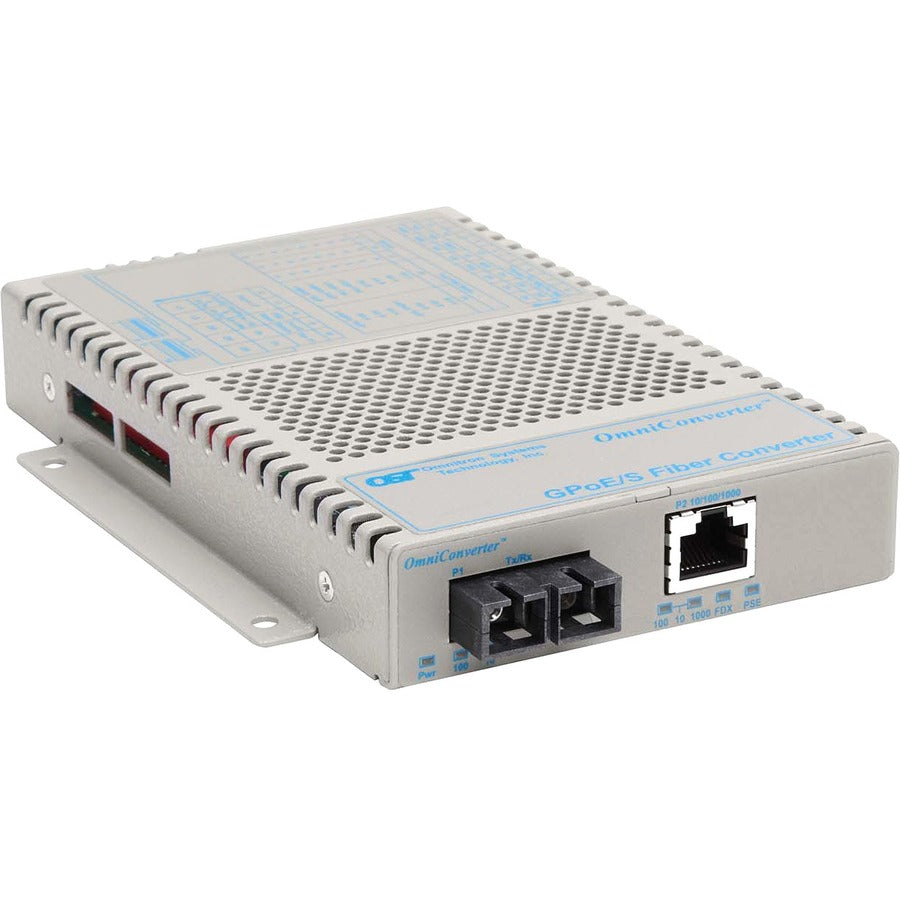

OmniConverter 10/100/1000 PoE Gigabit Ethernet Fiber Media Converter Switch RJ45 SC Multimode 550m

OmniConverter 10/100/1000 PoE Gigabit Ethernet Fiber Media Converter Switch RJ45 SC Multimode 550m

SKU: 1018225916      MFR: Omnitron Systems

GTIN: 0800975024298

Product Description

OmniConverter 10/100/1000 PoE Gigabit Ethernet Fiber Media Converter Switch RJ45 SC Multimode 550m - 1 x 10/100/1000BASE-T; 1 x 1000BASE-SX; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9402-0-11

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyEthernet
Network (RJ-45)Yes
Number of PoE (RJ-45) Ports1
Number of SC Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength850 nm
Country of OriginUnited States
Height1"
Width4.5"
Depth6"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af PoE
Product SeriesGPoE/S
Brand NameOmnitron Systems
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model9402-0-x
Product NameOmniConverter GPoE/S PoE SC Multimode 550m US AC Powered
Network Technology10/100/1000Base-T
Package TypeRetail
Product LineOmniConverter
Input Voltage120 V AC
Input Voltage240 V AC
Manufacturer Part Number9402-0-11
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter GPoE/S are multi-port media converters that convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (802.3af PoE). Classified as Power Sourcing Equipment (PSE) they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations including single or dual RJ-45 and SFP ports.

The RJ-45 ports can power PDs such as VoIP phones wireless access points network cameras building access and automation equipment. The Omniconverter is especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings closets etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.

  • Supports IEEE 802.3af PoE standards on one or two RJ-45 copper ports
  • Supports 1000BASE-X fixed-fiber and 1000BASE-X or 100BASE-FX SFP transceivers
  • Redundant protected fiber link option (using dual SFP ports models)
  • Compatible with legacy pre-IEEE standard powered devices
  • Configurable PoE power reset
  • Available in AC and DC models
  • Integrated wall mount brackets
  • Commercial (0" to 50"C) wide (-40" to 60"C) and extended (-40" to 75"C) operating temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support
Maximum Distance Supported1804.46 ft
Package Contents
  • OmniConverter GPoE/S PoE SC Multimode 550m US AC Powered
  • US Power Supply - 100-240Volt / 50-60Hz
  • US AC Power Cord
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 46-57VDC via 2.1mm barrel (0.46A @ 48VDC)
  • 100-240VAC/50-60Hz (0.24A @ 120VAC)
Weight (Approximate)1 lb
Product FamilyOmniConverter GPoE/S
View full details
$960.99 USD
$960.99
Sale Sold out

Back Order

Get it by Fri, Jul 04 - Wed, Jul 09
