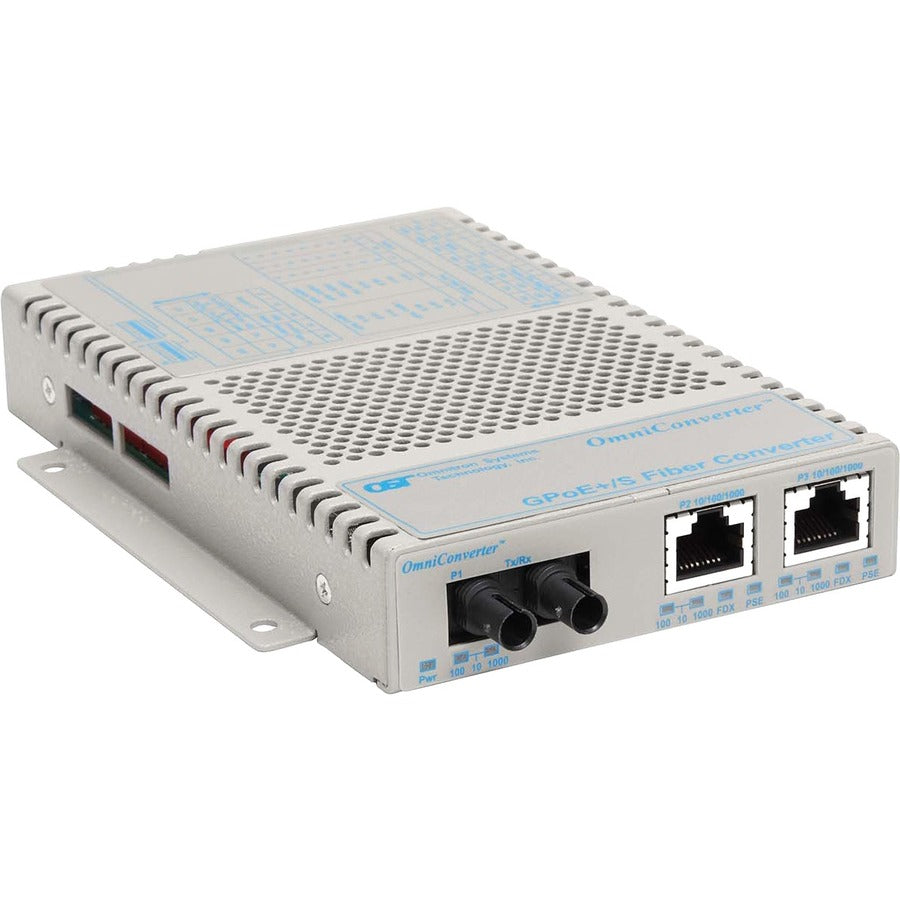

OmniConverter 10/100/1000 PoE+ Gigabit Ethernet Fiber Media Converter

1 1

OmniConverter 10/100/1000 PoE+ Gigabit Ethernet Fiber Media Converter Switch RJ45 ST Multimode 550m Wide Temp

SKU: 1018148584 MFR: Omnitron Systems

GTIN: 0800975024069

Product Description

OmniConverter 10/100/1000 PoE+ Gigabit Ethernet Fiber Media Converter Switch RJ45 ST Multimode 550m Wide Temp - 2 x 10/100/1000BASE-T; 1 x 1000BASE-SX; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9420-0-21W

Features

Expand your network capabilities with this 3 transceiver/media converter
Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
Rackmountable feature for convenient and safe installation of device

Product Details

Product TypeTransceiver/Media Converter

Environmentally FriendlyYes

Environmental CertificationRoHS

Ethernet TechnologyEthernet

Network (RJ-45)Yes

Number of PoE+ (RJ-45) Ports2

Number of ST Ports1

Media Type SupportedTwisted Pair

Fiber Mode SupportedMulti-mode

Total Number of Ports3

ST Port TypeDuplex

Fiber Optic Wavelength850 nm

Country of OriginUnited States

Height1"

Width4.5"

Depth6"

Product SeriesGPoE+/S

Brand NameOmnitron Systems

Form FactorRack-mountable

ManufacturerOmnitron Systems

Product Model9420-0-x

Product NameOmniConverter GPoE+/S 2x PoE+ ST Multimode 550m US AC Powered Wide Temp

Network Technology10/100/1000Base-T

Package TypeRetail

Product LineOmniConverter

Manufacturer Part Number9420-0-21W

Manufacturer Website Addresshttp://www.omnitron-systems.com

Marketing InformationThe OmniConverter GPoE/S and GPoE+/S are multi-port media converters that convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE) they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations are available including single or dual UTP and SFP ports.

The OmniConverter media converters can power PDs such as VoIP phones wireless access points network cameras building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings closets etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.

Maximum Distance Supported1804.46 ft

Package Contents

OmniConverter GPoE+/S 2x PoE+ ST Multimode 550m US AC Powered Wide Temp
US Power Supply - 100-240Volt / 50-60Hz
US AC Power Cord
User Manual

Limited WarrantyLifetime

Weight (Approximate)1 lb

Product FamilyOmniConverter GPoE+/S

Certifications & Standards

EIA/TIA 568A/B

Compliance:

UL
CE
FCC Class A
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-X
IEEE 802.3ab 1000BASE-T
IEEE 802.3af PoE
IEEE 802.3at PoE+

Input Voltage120 V AC

Input Voltage240 V AC

Additional Information

Input Voltage:

46-57VDC via 2.1mm barrel (1.00A @ 48VDC)
100-240VAC/50-60Hz (0.52A @ 120VAC)

Operating Temperature Range:

-40 to +60 deg C
