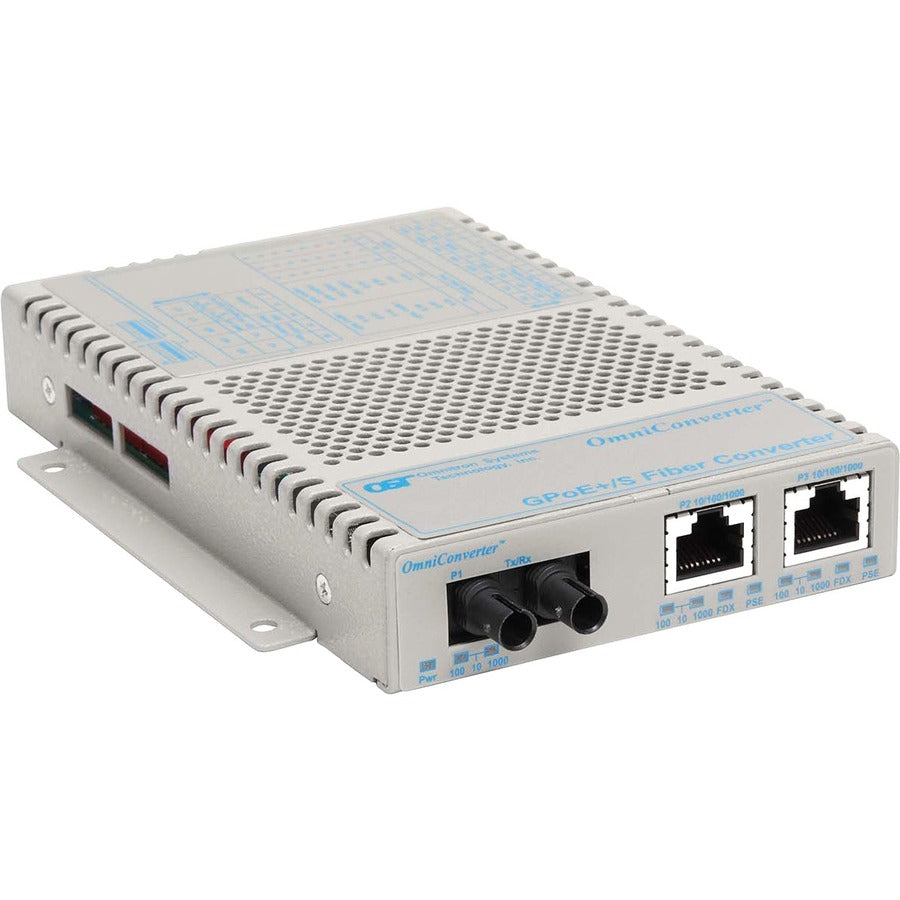

OmniConverter 10/100/1000 PoE+ Gigabit Ethernet Fiber Media Converter Switch RJ45 ST Single-Mode 12km Wide Temp

OmniConverter 10/100/1000 PoE+ Gigabit Ethernet Fiber Media Converter Switch RJ45 ST Single-Mode 12km Wide Temp

SKU: 1020223077      MFR: Omnitron Systems

GTIN: 0800975025646

Product Description

OmniConverter 10/100/1000 PoE+ Gigabit Ethernet Fiber Media Converter Switch RJ45 ST Single-Mode 12km Wide Temp - 2 x 10/100/1000BASE-T; 1 x 1000BASE-LX; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9421-1-21W

Features

  • Expand your network capabilities with this 3 transceiver/media converter
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyEthernet
Network (RJ-45)Yes
Product FamilyOmniConverter GPoE+/S
Number of PoE+ (RJ-45) Ports2
Number of ST Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports3
ST Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network Technology10/100/1000Base-T
Maximum Distance Supported7.46 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width4.5"
Depth6"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
Product SeriesGPoE+/S
ManufacturerOmnitron Systems
Product Model9421-1-x
Product NameOmniConverter GPoE+/S 2x PoE+ ST Single-Mode 12km US AC Powered Wide Temp
Package TypeRetail
Product LineOmniConverter
Input Voltage120 V AC
Input Voltage240 V AC
Manufacturer Part Number9421-1-21W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter GPoE/S and GPoE+/S are multi-port media converters that convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE) they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.

The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations are available including single or dual UTP and SFP ports.

The OmniConverter media converters can power PDs such as VoIP phones wireless access points network cameras building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings closets etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
Package Contents
  • OmniConverter GPoE+/S 2x PoE+ ST Single-Mode 12km US AC Powered Wide Temp
  • US Power Supply - 100-240Volt / 50-60Hz
  • US AC Power Cord
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 46-57VDC via 2.1mm barrel (1.00A @ 48VDC)
  • 100-240VAC/50-60Hz (0.52A @ 120VAC)

Operating Temperature Range:

  • -40 to +60 deg C
Weight (Approximate)1 lb
View full details
$1,383.99 USD
$1,383.99
Sale Sold out

Back Order

Get it by Fri, Feb 20 - Wed, Feb 25


Update


Shipping calculated at checkout.
