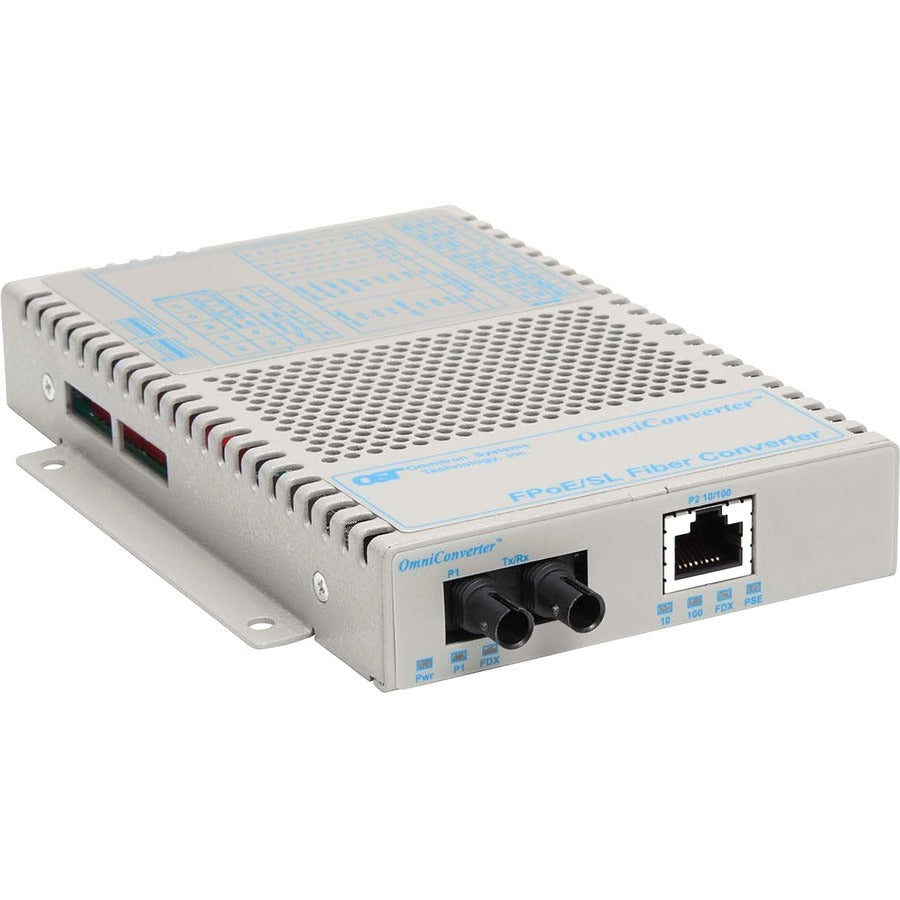

OmniConverter SL 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 ST Multimode 5km Wide Temp

OmniConverter SL 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 ST Multimode 5km Wide Temp

SKU: 1020007624      MFR: Omnitron Systems

GTIN: 0800975025424

Product Description

OmniConverter SL 10/100 PoE Ethernet Fiber Media Converter Switch RJ45 ST Multimode 5km Wide Temp - 1 x 10/100BASE-TX; 1 x 100BASE-FX; US AC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 9340-0-11W

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
  • No hassle of internal installation install externally

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyEthernet
Network (RJ-45)Yes
Product FamilyOmniConverter FPoE/SL
Number of PoE (RJ-45) Ports1
Number of ST Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
ST Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network Technology10/100Base-TX
Maximum Distance Supported3.11 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height1"
Width4.5"
Depth6"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX and 100BASE-FX
  • IEEE 802.3af PoE
Product SeriesFPoE/SL
ManufacturerOmnitron Systems
Product Model9340-0-x
Product NameOmniConverter FPoE/SL PoE ST Multimode 5km US AC Powered Wide Temp
Package TypeRetail
Product LineOmniConverter
Input Voltage120 V AC
Input Voltage240 V AC
Manufacturer Part Number9340-0-11W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe OmniConverter FPoE/SL is a multi-port media converter that converts 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE). Classified as Power Sourcing Equipment (PSE) OmniConverter FPoE/SL can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations including single or dual UTP and SFP ports.

The OmniConverter media converters can power PDs such as VoIP phones wireless access points network cameras building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings closets etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.

  • Supports IEEE 802.3af PoE on one or two RJ-45 copper ports
  • Supports 100BASE-FX fixed-fiber and 100BASE-FX SFP transceivers
  • Redundant protected fiber link option (using dual SFP transceivers)
  • Configurable PoE power reset
  • Available in AC and DC models
  • Integrated wall mount brackets
  • Commercial (0 to 50"C) wide (-40 to 60"C) and extended (-40 to 75"C) operating temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support
Package Contents
  • OmniConverter FPoE/SL PoE ST Multimode 5km US AC Powered Wide Temp
  • US Power Supply - 100-240Volt / 50-60Hz
  • US AC Power Cord
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 46-57VDC via 2.1mm barrel (0.39A @ 48 VDCVDC)
  • 100-240VAC/50-60Hz (0.17A @ 120VAC)

Operating Temperature Range:

  • -40 to +60 deg C
Weight (Approximate)1 lb
