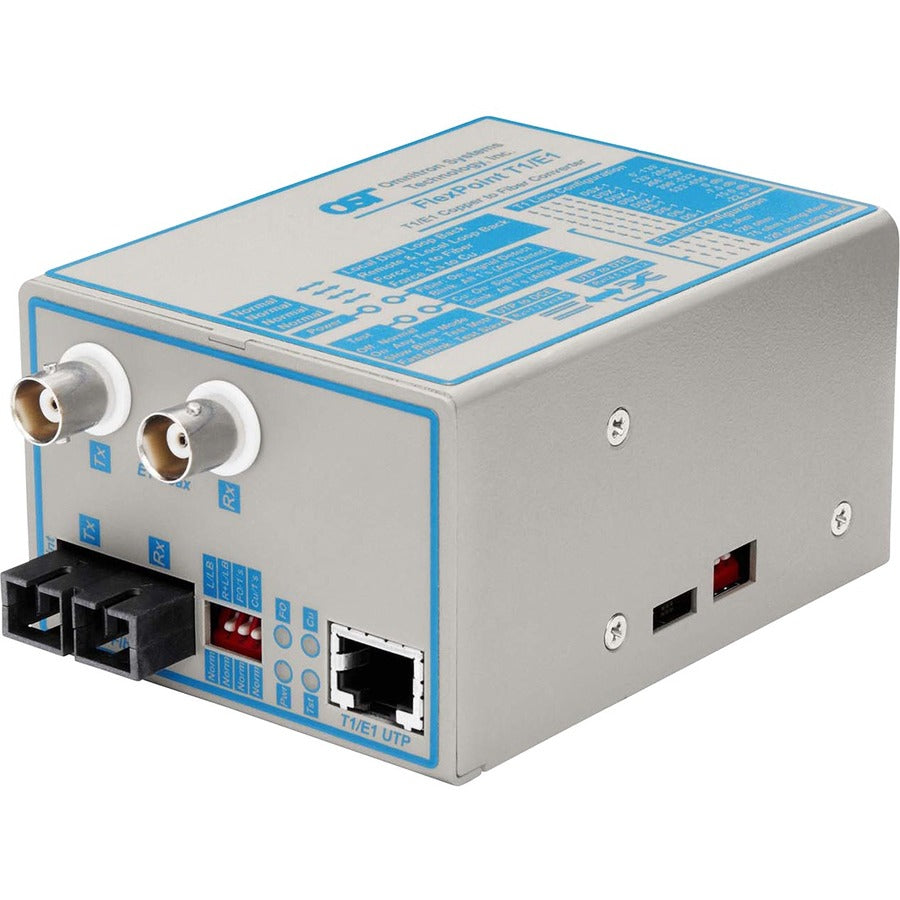

Omnitron Systems FlexPoint T1/E1 Copper to Fiber Media Converter

Omnitron Systems FlexPoint T1/E1 Copper to Fiber Media Converter

SKU: 10047984      MFR: Omnitron Systems

GTIN: 0800975011519

Product Description

Omnitron Systems FlexPoint T1/E1 Copper to Fiber Media Converter - 1 x SC 1 x RJ-48 - T1/E1 - Rack-mountable

Manufacturer : Omnitron Systems

Manufacturer Part No : 4490-1

Features

  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • Coaxial cable for environment requiring moderate coverage and low bandwidth
  • With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link
  • Tuck the device out of the way with its Wall Mounting feature

Product Details

Product TypeTransceiver/Media Converter
Number of SC Ports1
Media Type SupportedCoaxial
Fiber Mode SupportedMulti-mode
Total Number of Ports2
Country of OriginUnited States
Height2.3"
Width2.3"
Depth4"
Brand NameOmnitron Systems
Form FactorWall Mountable
ManufacturerOmnitron Systems
Product NameFlexPoint T1/E1 Copper to Fiber Media Converter
Network TechnologyT1/E1
Product LineFlexPoint
Manufacturer Part Number4490-1
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing Information

The FlexPoint T1/E1 is a twisted pair to fiber media converter and T1/E1 distance extender. It supports ANSI AT&T ITU and ETSI standards. The converter provides support for line codes such as AMI B8ZS and HDB3. The T1/E1 line codes and line lengths are configured using easy to arrange dip switches located on the FlexPoint T1/E1 media converter.

The FlexPoint offers several mounting options. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in the 14-unit FlexPoint Powered Chassis which is available with redundant 110/220V AC or 48V DC power supplies.
Maximum Distance Supported3.11 Mile
Limited WarrantyLifetime
Weight (Approximate)8 oz
Number of RJ-48 Ports1
Carrier SupportedT-carrier/E-carrier
Certifications & Standards
  • ANSI
  • AT&T
  • ITU
  • ETSI
Input Voltage110 V AC
Additional Information
  • Encoding/Decoding: AMI B8ZS and HDB3
  • MTBF: 725000 hours
  • Features a crossover switch on the RJ45/RJ48 port for easy connections to equipment
  • Local and remote fiber loop-back switches with optional all 1's insertion (AIS) facilitate easy installation

Diagnostic Functions:

  • Local loop-back on RJ45/RJ48 and fiber
  • Transmit all 1's into RJ45/RJ48 (AIS)
  • Transmit all 1's into fiber (AIS)
  • Remote loop-back on fiber
Product FamilyFlexPoint
