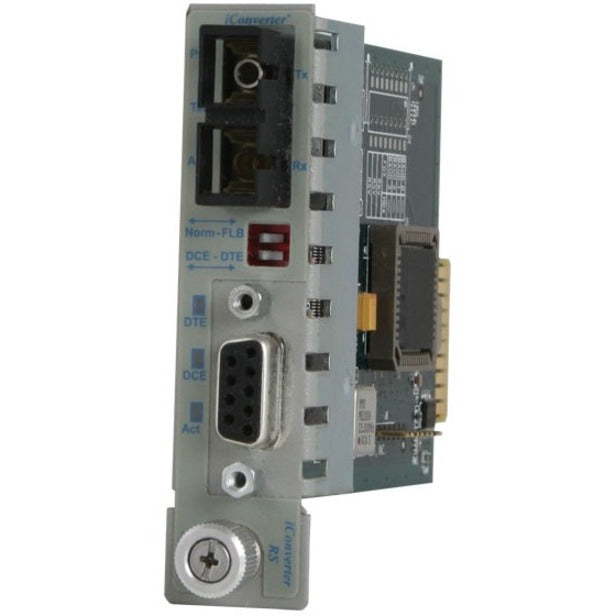

Omnitron Systems Managed Serial RS-232 to Fiber Media Converter

Omnitron Systems Managed Serial RS-232 to Fiber Media Converter

SKU: 1066855991      MFR: Omnitron Systems

GTIN: 800975042490

Product Description

Omnitron Systems Managed Serial RS-232 to Fiber Media Converter - 1 x LC Ports - DuplexLC Port - Multi-mode

Manufacturer : Omnitron Systems

Manufacturer Part No : 8766-0W

Features

  • Managed Serial RS-232 to fiber media converter with automatic data rate detection
  • Supports bit rates ranging from 110 bps to 921600 bps
  • Multimode single-mode dual fiber with ST SC and LC connectors and single-mode single-fiber with SC connectors
  • Supports distances up to 5km on multimode and 120km on single-mode
  • DB-9 and Terminal Block connector options for serial RS-232 interface
  • DIP-switch configuration of DTE or DCE device for easy connection to serial devices
  • Supports RTS CTS DCD DTR and DSR controls
  • Remote fiber loopback switch for easy testing of fiber link even during serial transmission
  • Modules are hot-swappable in 19-Module 5-Module 2-Module or 1-Module chassis
  • Management is available with the addition of a management module to the chassis

Product Details

Product TypeTransceiver/Media Converter
Product FamilyiConverter
Number of LC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports2
LC Port TypeDuplex
Brand NameOmnitron Systems
Maximum Distance Supported3.11 Mile
Power SourceDC
Environmentally FriendlyYes
Environmental CertificationRoHS 2
Fiber Optic Cable Standard50/125 µm
Fiber Optic Wavelength1310 nm
Country of OriginUnited States
Height2.8"
Width0.9"
Depth4.5"
ManufacturerOmnitron Systems
Product Model8766-0
Product NameManaged Serial RS-232 to Fiber Media Converter
Product LineiConverter
Manufacturer Part Number8766-0W
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing InformationThe iConverter RS232 is a managed serial RS-232 to fiber converter that transmits serial protocol over fiber media. The RS232 media converters operate in pairs extending serial distances over fiber up to 120km which improves noise immunity from electrical and magnetic interference.

The RS232 is available with a single-mode dual fiber multimode dual fiber or single-mode single-fiber transceiver. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

The RS232 automatically detects the signal data rate of the connected serial device ranging from 110 bps to 921600 bps. It also automatically adjusts to changes in the connected device's data rate during operation without reconfiguration or interruption of service.

Connection to DTE or DCE devices are configured by an easily accessible DIP-switch on the front-panel of the module. This feature eliminates the need to use a null-modem cable when connecting two serial devices of the same type.

A built-in Fiber Loopback DIP-switch provides easy validation of the entire fiber segment without interrupting fiber operations.

iConverter RS232 modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with redundant AC 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis or in a 1-Module AC or DC powered chassis.

The iConverter Multi-Service Platform consists of Network Interface Devices T1/E1 multiplexers CWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM wavelengths. This flexible architecture supports a wide variety of configurations for scalable and reliable fiber connectivity in Service Provider and Enterprise networks.
Limited WarrantyLifetime
Weight (Approximate)8 oz
View full details
$652.99 USD
$652.99
Sale Sold out

Back Order

Get it by Tue, Jan 27 - Sun, Feb 01
