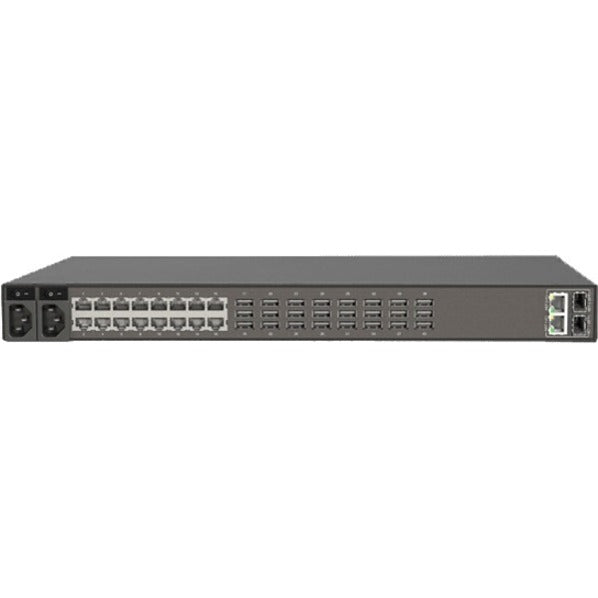

IM7200 Infrastructure Manager

In data centers and large IT deployments the Infrastructure Manager allows network operations staff to securely access critical network devices from the control room or Network Operations Center (NOC).

Smart Out-of-Band provides a physical connection to your network devices managed via a secure remote link. Reduce your reliance on third-party remote-hands for configuration power cycling and many standard processes. And with Lighthouse management software the Out-of-band network can be orchestrated through a centralized portal.

The IM units have 8-48 software-selectable serial console ports dual GbE connections with built-in Fiber SFP 16GB internal storage and available 4G-LTE cellular embedded module. 24 port Gigabit switch and 24 USB console port models are also available.

Interface

• Ethernet Ports: 2 x 10/100/1000 Ethernet/SFP Fiber port with 1500V AC Isolation and ESD Protection
• Console Port: 1 x RJ45 RS-232 Console Port
• Serial Ports: Software Selectable 50 to 230400 bps
• USB: 2 x USB 3.0 console ports
• Remote Access:
• Integrated 4G LTE Cellular Card Integrated V.92 PSTN Dial-in Dual Ethernet aggregation & redundancy
• Automatic Network Failover Easy browser UI IPv6
• Console Management:
• Built-in web terminal
• SSH direct to consoles
• Optional console keystroke logging
• Alert on cable disconnects text pattern match and more
• Inline power control
• Multiple concurrent sessions

Memory & CPU

• CPU: 1 GHz ARM SoC (Marvell 88F6283)
• Memory:
• 256 MB DDR2 SDRAM
• 64 MB Embedded NOR Flash
• Internal Storage 16 GB Memory

Environmental

• Operating Temperature: 5°C to 50°C 41°F to 122°F
• Storage Temperature: -30°C to +60°C -22°F to +140°F
• Humidity: 5% to 90%
• Environmental Monitoring: Serial EMD5000 to support physical smoke water leak and vibration sensors

Security Encryption & Authentication

• SSH
• FIPS-140-2 compliant Open SSL Module
• Strong ciphers -AES encryption
• Cisco-compatible IPsec
• OpenVPN
• AAA - TACACS+ RADIUS Active Directory/OpenLDAP Kerberos with local fallback
• Two factor authentication via remote AAA
• Configurable stateful firewall
• Actively developed & support and security notifications-frequent firmware updates

Automation & Scalability

• ZTP Lighthouse
• RESTful API programmable and extensible
• Auto-Response SNMP LLDP NTP

Emissions

• FCC Part 15 Subpart B (Class A)
• ICES-003 Issue 5 (2014)
• AS/NZS CISPR 22: 200410 (Class A)
• EN 55032:2015 (Class A)
• EN 61000-3-2 Harmonics Current Emissions (2014)
• EN 61000-3-3 Voltage Fluctuation and Flicker (2013)

Immunity

• EN 55024 ITE Immunity (2010)
• IEC 61000-4-2 (2008)
• IEC 61000-4-3 (2006) A1 (2007) A2 (2010)
• IEC 61000-4-4 (2012)
• IEC 61000-4-5 (2014)
• IEC 61000-4-6 (2014)
• IEC 61000-4-8 (2010)
• IEC 61000-4-11 (2004)

Other Agency Approvals

• IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 C-Tick
• FIPS 140-2 validated module Certificate #2473 CCC
