• AK-UC4000
• AK-UC3000

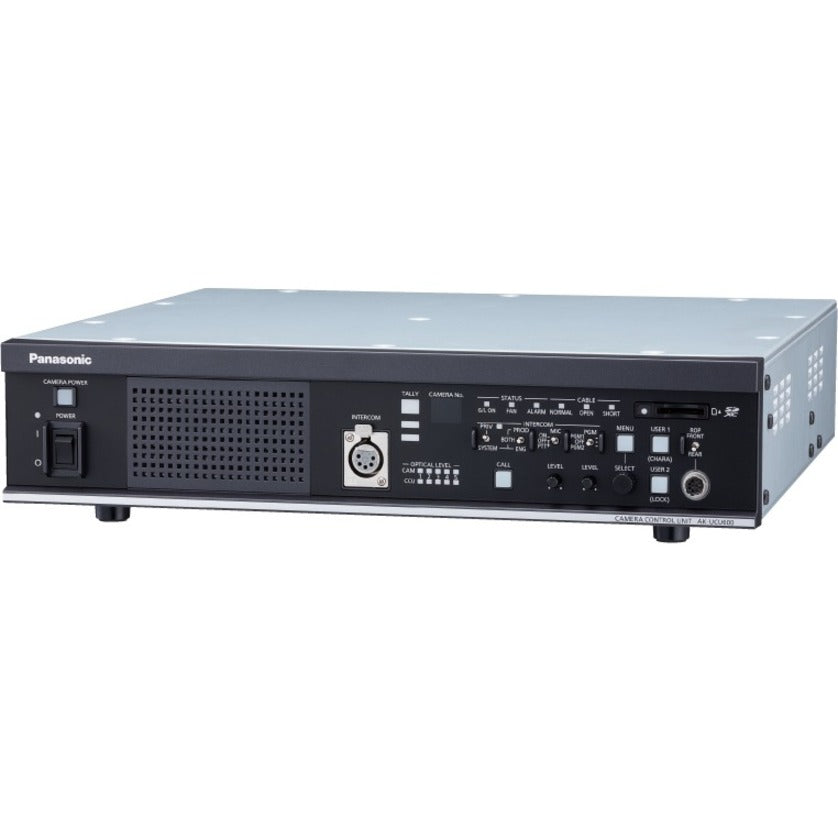

The CCU supports not only UHD and HD simultaneous output but also enables high-speed output up to 240p in HD mode to be performed simultaneously with standard (1x) output while still having a compact size.

• Contains a dual UHD 12G-SDI system and supports 3G-SDI quad link with quadrant or two-sample interleave.
• Optical fiber transmission of uncompressed video signals over a distance of approx. 2000 m between camera and CCU.
• The compact lightweight unit measures 2U in height and is rack-mountable.
• Supports IP streaming (100 Base-T).
• SD memory card can be used for saving user files and updating firmware versions.

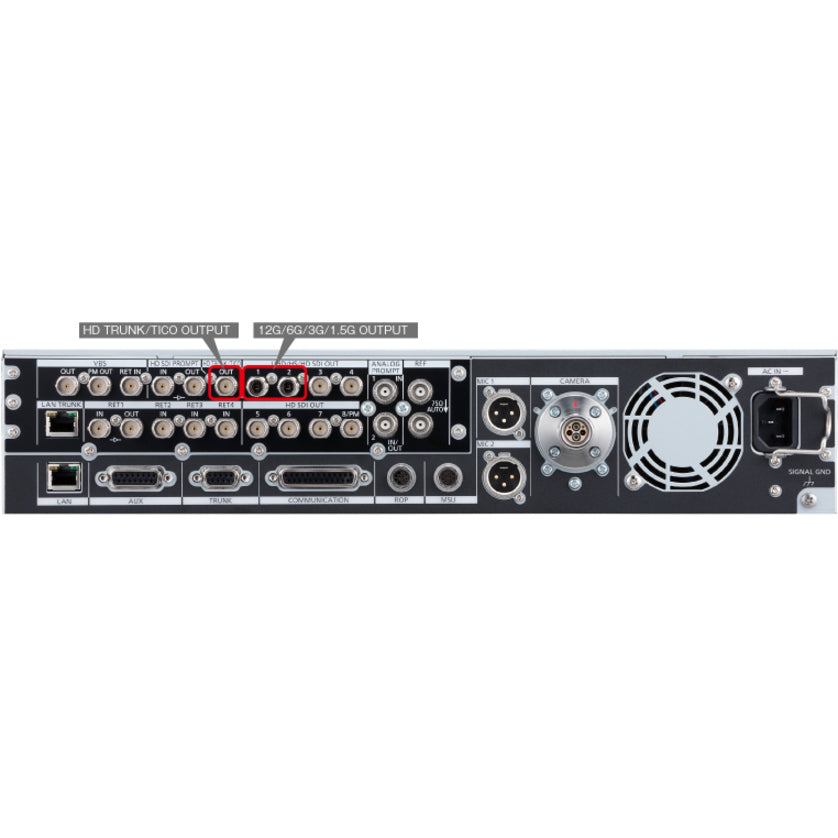

• Dual uncompressed12G-SDI output.
• Supports TICO over SDI (4K over 3G-SDI) output (4K signal can be transferred by a conventional 3G-SDI cable).
• Supports 1080p/i and 720p. In addition to standard output high-speed output at 2x 3x or 4x can be selected according to the specifications of the server.
• Supports HDR/SDR simultaneous output and HDR BT.2020/BT.709 simultaneous output.
• 12G-SDI output and TICO over SDI (4K over 3G-SDI) output are compatible with the AK-UC3000.
