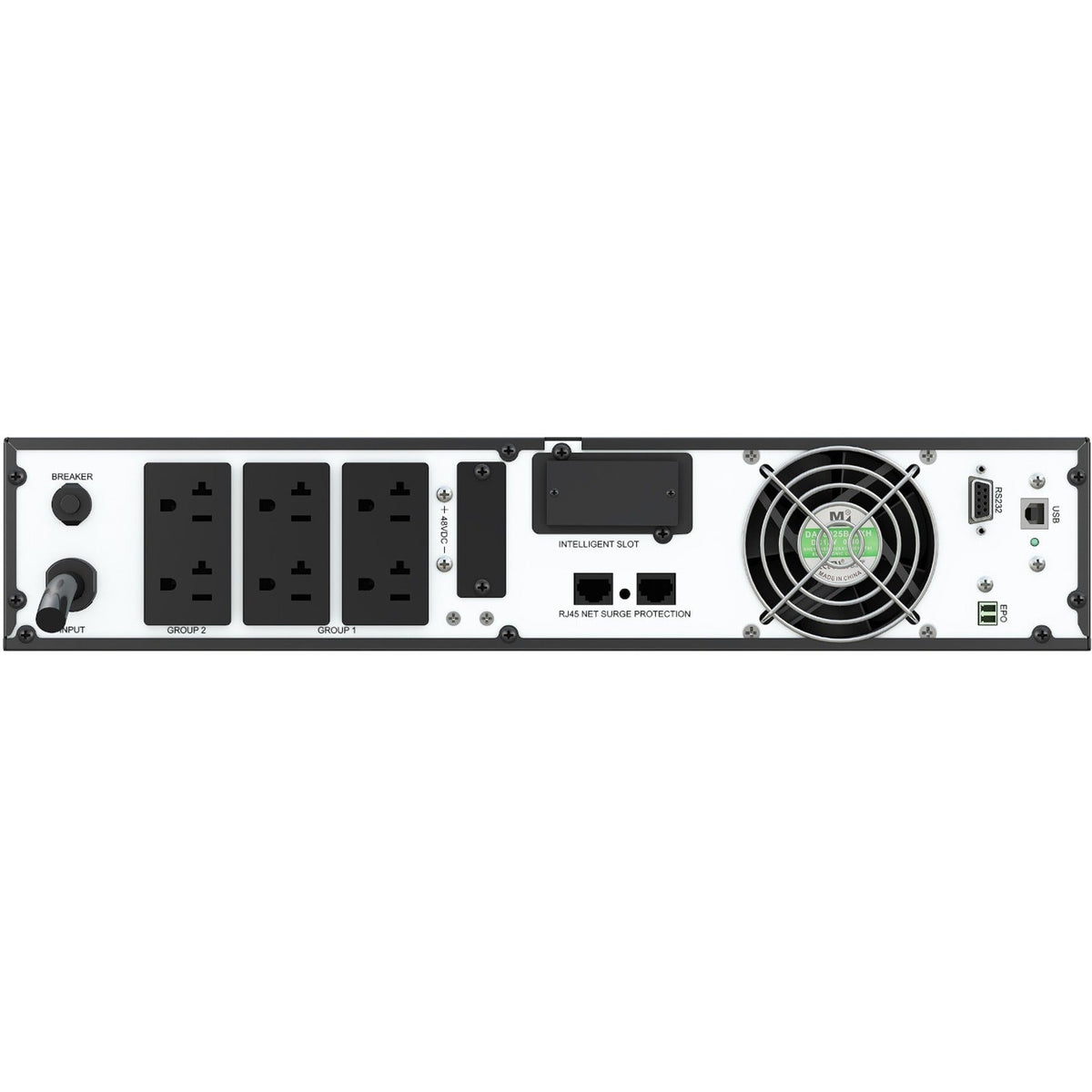

• Panduit SmartZone U02S11V 2000VA Rack/Tower UPS
    Panduit SmartZone U02S11V 2000VA Rack/Tower UPS
  • Panduit SmartZone U02S11V 2000VA Rack/Tower UPS
  • Panduit SmartZone U02S11V 2000VA Rack/Tower UPS
  • Panduit SmartZone U02S11V 2000VA Rack/Tower UPS
1 4

Panduit SmartZone U02S11V 2000VA Rack/Tower UPS

Panduit SmartZone U02S11V 2000VA Rack/Tower UPS

SKU: 1073145625      MFR: PANDUIT CORP

Product Description

Panduit SmartZone U02S11V 2000VA Rack/Tower UPS - 2U Rack/Tower Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC 110 V AC 120 V AC 115 V AC 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-20R

Manufacturer : PANDUIT CORP

Manufacturer Part No : U02S11V

Features

  • Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
  • Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise automatic voltage regulation (AVR) and surge protection
  • Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units covering extended voltage range applicable for severe situation such as large power grid fluctuation
  • High efficiency: Up to 96.5% reducing the energy waste and the cost of electricity
  • Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
  • Green design: RoHS and Reach CE/UL/ENERGY STAR® 2.0 compliant for North America units
  • Output unity power factor: Means more active power for IT equipment load
  • Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
  • Expandable battery packs: Allows to connect maximum four external battery packs extending the UPS backup running time
  • Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life

Product Details

Product TypeDouble Conversion Online UPS
Additional Warranty Information
  • 3 Years for UPS
  • 2 Years for Internal Battery and EBP
Input Frequency70 Hz
PhaseSingle Phase
Battery Size12V
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Battery Capacity9000 mAh
Maximum Operating Temperature104°F (40°C)
Network (RJ-45)Yes
Serial PortYes
Number of Batteries4
Battery CharacteristicsValve-regulated Maintenance-free Hot-swappable
Replaceable BatteryYes
Energy StarYes
AVRYes
DC System Voltage48 V DC
EPO PortYes
USB (HID Compliant) PortYes
Maximum Operating Elevation9842.52 ft
Storage Temperature-13°F (-25°C) - 131°F (55°C)
Transfer Time0 ns
Typical Battery Recharge Time6 Hour
Product ColorBlack
Backup/Run Time With External Battery Cabinet (Full Load)4.28 Minute
Backup/Run Time With External Battery Cabinet (Half Load)13.50 Minute
Receptacle Detail6 x NEMA 5-20R
Height3.4"
Width17.3"
Depth18.1"
Output Frequency60 Hz
AlarmYes
Rack Height2U
Brand NamePanduit
Plug/Connector TypeNEMA 5-20P
Input Voltage Range55 V AC - 150 V AC
Dataline ProtectionRJ-45
Form FactorRack/Tower
Status IndicatorsColorful LCD with four buttons and LED indicators
Load Capacity2000 VA/2000 W
ManufacturerPANDUIT CORP
Product ModelU02S11V
Product NameSmartZone U02S11V 2000VA Rack/Tower UPS
Overload ProtectionYes
Product LineSmartZone
Thermal Dissipation156.50 W
Waveform TypePure Sine Wave
Application/UsageData Center
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberU02S11V
Manufacturer Website Addresshttp://www.panduit.com
Marketing InformationThe Panduit ® SmartZone™ UPS with maintenance free VRLA battery 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR ® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT equipment.
Sound Emission55 dB
Battery Life5 Year
Battery ChemistrySealed Lead Acid (VRLA)
Limited Warranty5 Year
Output Voltage100 V AC
Weight (Approximate)44.09 lb
Product FamilySmartZone
Load Capacity (VA)2000 VA
Load Capacity (W)2000 W
View full details
$1,577.99 USD
$1,577.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Panduit SmartZone U02S11V 2000VA Rack/Tower UPS - 2U Rack/Tower Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC 110 V AC 120 V AC 115 V AC 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-20R

Manufacturer : PANDUIT CORP

Manufacturer Part No : U02S11V

Features

  • Rack/Tower convertible: Supports rack /tower installation with rotatable colorful LCD display
  • Online Double Conversion with fully digital control: Provides stable and clean power with less ripple by filtering noise automatic voltage regulation (AVR) and surge protection
  • Wide input voltage range: 110-300 VAC for EU units and 55-150 VAC for NA units covering extended voltage range applicable for severe situation such as large power grid fluctuation
  • High efficiency: Up to 96.5% reducing the energy waste and the cost of electricity
  • Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
  • Green design: RoHS and Reach CE/UL/ENERGY STAR® 2.0 compliant for North America units
  • Output unity power factor: Means more active power for IT equipment load
  • Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
  • Expandable battery packs: Allows to connect maximum four external battery packs extending the UPS backup running time
  • Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life

Product Details

Product TypeDouble Conversion Online UPS
Additional Warranty Information
  • 3 Years for UPS
  • 2 Years for Internal Battery and EBP
Input Frequency70 Hz
PhaseSingle Phase
Battery Size12V
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Battery Capacity9000 mAh
Maximum Operating Temperature104°F (40°C)
Network (RJ-45)Yes
Serial PortYes
Number of Batteries4
Battery CharacteristicsValve-regulated Maintenance-free Hot-swappable
Replaceable BatteryYes
Energy StarYes
AVRYes
DC System Voltage48 V DC
EPO PortYes
USB (HID Compliant) PortYes
Maximum Operating Elevation9842.52 ft
Storage Temperature-13°F (-25°C) - 131°F (55°C)
Transfer Time0 ns
Typical Battery Recharge Time6 Hour
Product ColorBlack
Backup/Run Time With External Battery Cabinet (Full Load)4.28 Minute
Backup/Run Time With External Battery Cabinet (Half Load)13.50 Minute
Receptacle Detail6 x NEMA 5-20R
Height3.4"
Width17.3"
Depth18.1"
Output Frequency60 Hz
AlarmYes
Rack Height2U
Brand NamePanduit
Plug/Connector TypeNEMA 5-20P
Input Voltage Range55 V AC - 150 V AC
Dataline ProtectionRJ-45
Form FactorRack/Tower
Status IndicatorsColorful LCD with four buttons and LED indicators
Load Capacity2000 VA/2000 W
ManufacturerPANDUIT CORP
Product ModelU02S11V
Product NameSmartZone U02S11V 2000VA Rack/Tower UPS
Overload ProtectionYes
Product LineSmartZone
Thermal Dissipation156.50 W
Waveform TypePure Sine Wave
Application/UsageData Center
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberU02S11V
Manufacturer Website Addresshttp://www.panduit.com
Marketing InformationThe Panduit ® SmartZone™ UPS with maintenance free VRLA battery 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR ® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT equipment.
Sound Emission55 dB
Battery Life5 Year
Battery ChemistrySealed Lead Acid (VRLA)
Limited Warranty5 Year
Output Voltage100 V AC
Weight (Approximate)44.09 lb
Product FamilySmartZone
Load Capacity (VA)2000 VA
Load Capacity (W)2000 W
