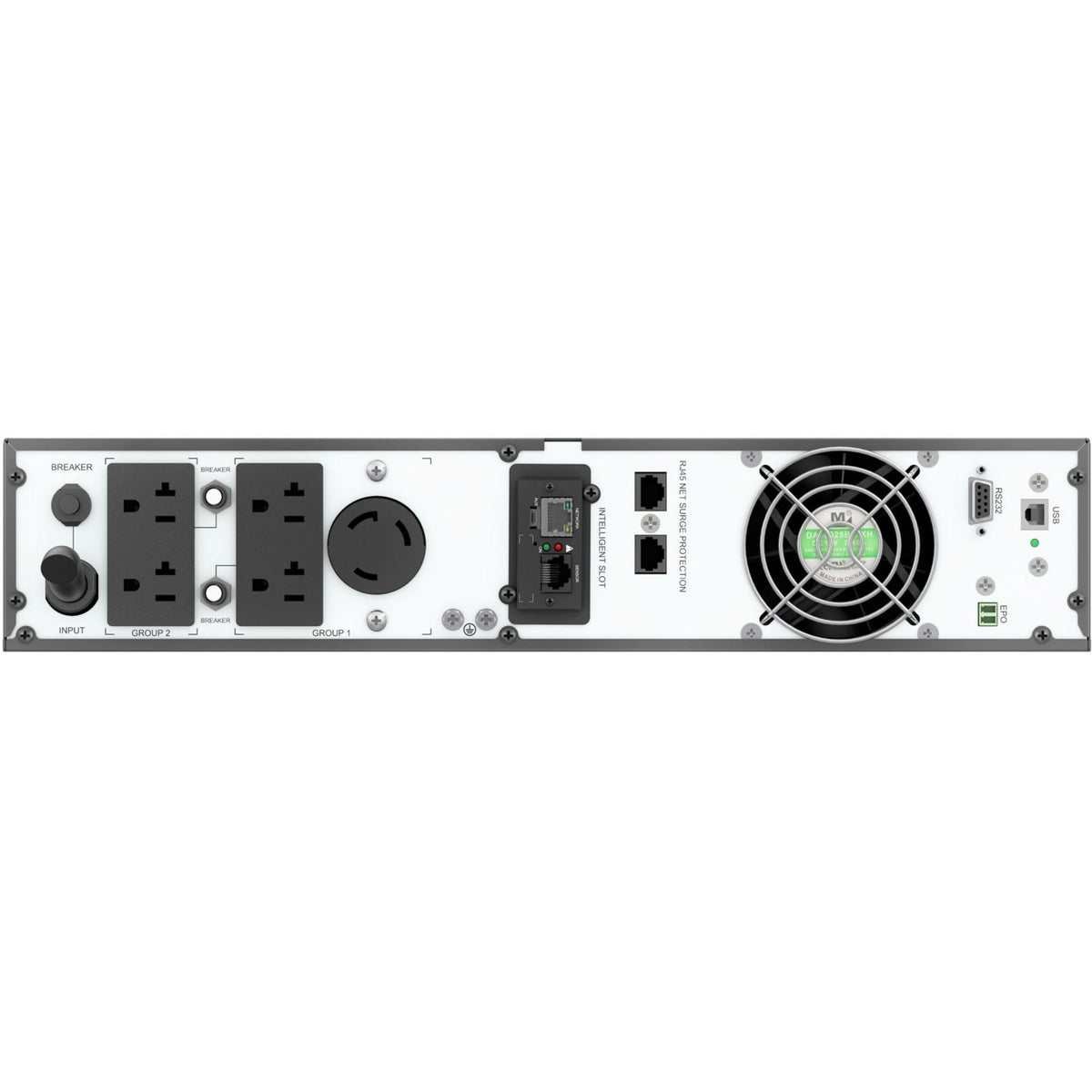

Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS

Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS

SKU: 1073145583      MFR: PANDUIT CORP

Product Description

Panduit SmartZone U03N11L 3000VA Rack/Tower/Compact UPS - 2U Rack/Tower/Compact Rail Mountable - AVR - 4 Hour Recharge - 120 V AC Input - 100 V AC 110 V AC 115 V AC 120 V AC 125 V AC Output - Single Phase - Serial Port - 1 x NEMA L5-30R 2 x NEMA 5-20R

Manufacturer : PANDUIT CORP

Manufacturer Part No : U03N11L

Features

  • Rack/Tower convertible: Support rack/tower installation with rotatable colorful LCD display
  • Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise automatic voltage regulation (AVR) and surge protection
  • Wide input voltage range: (110-300Vac Online models) (75-146Vac Line Interactive models) covering more voltage range applicable for severe situation such as large power grid fluctuation
  • High efficiency: Up to 96.5% for Online models and up to 97% for Line-interactive models reducing the energy waste and the cost of electricity
  • Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
  • Green design: RoHS and Reach CE/UL/ENERGY STAR® 2.0 compliant for North America units
  • Output unity power factor: Means more active power for IT equipment load
  • Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
  • Intelligent Battery Management: The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
  • EPO function (Emergency Power Off): Allows to quickly and easy shut down the UPS when emergency event occurs

Product Details

Product TypeLine-interactive UPS
Additional Warranty Information5 Years (UPS & Battery)
Input Frequency60 Hz
PhaseSingle Phase
Receptacle TypeNEMA L5-30R
Environmentally FriendlyYes
Maximum Operating Temperature104°F (40°C)
Network (RJ-45)Yes
Serial PortYes
Replaceable BatteryYes
Energy StarYes
AVRYes
DC System Voltage76.8 V DC
EPO PortYes
USB (HID Compliant) PortYes
Maximum Operating Elevation9842.52 ft
Storage Temperature-13°F (-25°C) - 131°F (55°C)
Transfer Time6 ms
Typical Battery Recharge Time4 Hour
Product ColorBlack
Backup/Run Time With External Battery Cabinet (Full Load)9 Minute
Backup/Run Time With External Battery Cabinet (Half Load)22 Minute
Receptacle Detail1 x NEMA L5-30R
Height3.4"
Width17.3"
Depth25.2"
Output Frequency60 Hz
AlarmYes
Rack Height2U
Brand NamePanduit
Plug/Connector TypeNEMA L5-30P
Input Voltage Range75 V AC - 146 V AC
Dataline ProtectionRJ-45
Form FactorRack/Tower/Compact
Status IndicatorsColorful LCD with four buttons and LED indicators
Load Capacity3000 VA/2700 W
ManufacturerPANDUIT CORP
Product ModelU03N11L
Product NameSmartZone U03N11L 3000VA Rack/Tower/Compact UPS
Overload ProtectionYes
Product LineSmartZone
Thermal Dissipation97.89 W
Waveform TypePure Sine Wave
Application/UsageData Center
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberU03N11L
Manufacturer Website Addresshttp://www.panduit.com
Marketing InformationThe Panduit ® SmartZone™ Intelligent Rack UPS with compact high capacity and long life Lithium Ion battery 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT equipment.
Sound Emission55 dB
Battery Life10 Year
Battery ChemistryLithium-Ion (LiFePO4)
Package Contents
  • SmartZone U03N11L 3000VA Rack/Tower/Compact UPS
  • Intelligent Network Management Card
Limited Warranty5 Year
Software IncludedSmartZone Cloud Ready
Output Voltage100 V AC
Weight (Approximate)68.34 lb
Product FamilySmartZone
Load Capacity (VA)3000 VA
Load Capacity (W)2700 W
View full details
