    Panorama Antennas DWMM4[G]-6-60 Antenna
  • Panorama Antennas DWMM4[G]-6-60 Antenna
1 2

Panorama Antennas DWMM4[G]-6-60 Antenna

Panorama Antennas DWMM4[G]-6-60 Antenna

SKU: 1072245750      MFR: Panorama Antennas Ltd

Product Description

Panorama Antennas DWMM4[G]-6-60 Antenna - 617MHz - 960MHz 1427MHz - 6000MHz - 26 dB - 7 dBi - Cellular Network Indoor Outdoor - White - Desktop/Wall/Mast - Omni-directional - SMA Connector

Manufacturer : Panorama Antennas Ltd

Manufacturer Part No : DWMM4-6-60-5NP

Features

  • 4×4 MiMo Omnidirectional Antenna
  • Multiple Mounting Options
  • 4G/5G LTE Ready
  • Covers Wideband 600-6000MHz
  • Optional GPS/GNSS
  • IP66 rated

Product Details

Depth14.61"
Connector TypeSMA
Product SeriesDWMM4[G]-6-60
Brand NamePanorama Antennas
Form FactorDesktop/Wall/Mast
ManufacturerPanorama Antennas Ltd
Product NameDWMM4[G]-6-60 Antenna
Application/UsageCellular Network
Manufacturer Part NumberDWMM46605NP
Manufacturer Website Addresshttp://www.panorama-antennas.com
Marketing Information

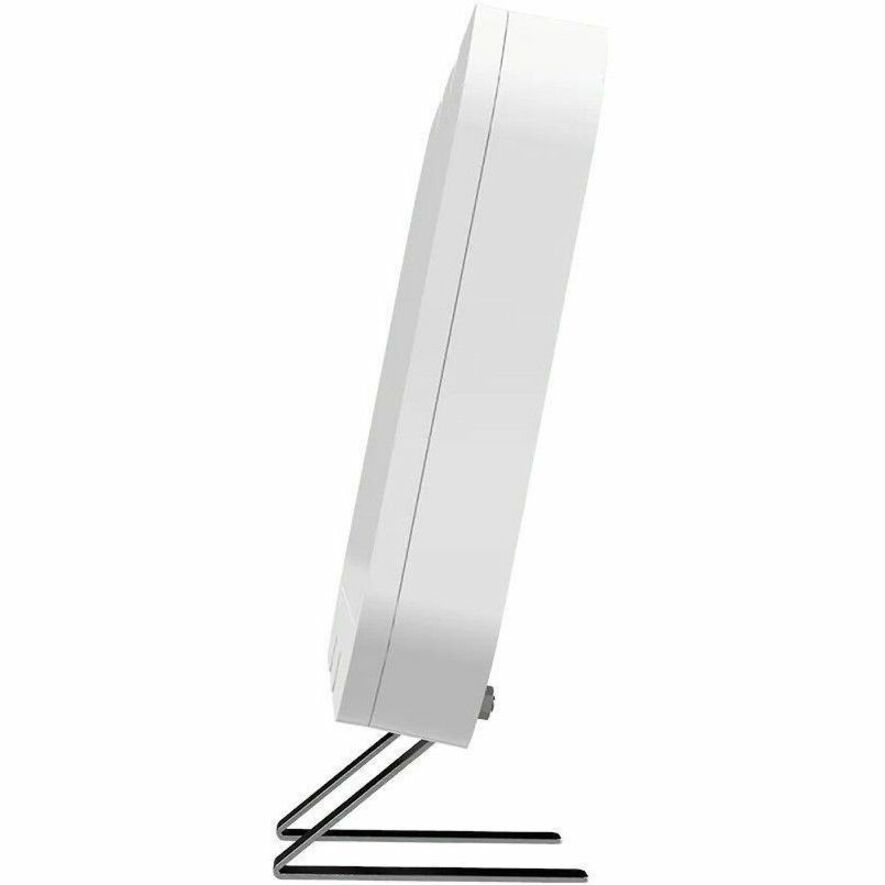

The DWMM4[G]-6-60 | Hammerhead Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.
Package Contents
  • DWMM4[G]-6-60 Antenna
  • Mounting Bracket
  • Screws
  • Wall Plugs
  • Clamps
Width1.57"
Height8.70"
Antenna Gain (Isotropic)7 dBi
Operating Frequency Range1427MHz - 6000MHz
Voltage Standing Wave Ratio (VSWR)<2.5:1
Product ColorWhite
DirectivityOmni-directional
Antenna Gain26 dB
Product TypeAntenna
Product FamilyDWMM4[G]-6-60
Operating Frequency Range617MHz - 960MHz
View full details
$347.99 USD
$347.99
Sale Sold out

Back Order

Get it by Thu, Nov 12 - Tue, Nov 17


Update


Shipping calculated at checkout.

Panorama Antennas DWMM4[G]-6-60 Antenna - 617MHz - 960MHz 1427MHz - 6000MHz - 26 dB - 7 dBi - Cellular Network Indoor Outdoor - White - Desktop/Wall/Mast - Omni-directional - SMA Connector

Manufacturer : Panorama Antennas Ltd

Manufacturer Part No : DWMM4-6-60-5NP

Features

  • 4×4 MiMo Omnidirectional Antenna
  • Multiple Mounting Options
  • 4G/5G LTE Ready
  • Covers Wideband 600-6000MHz
  • Optional GPS/GNSS
  • IP66 rated

Product Details

Depth14.61"
Connector TypeSMA
Product SeriesDWMM4[G]-6-60
Brand NamePanorama Antennas
Form FactorDesktop/Wall/Mast
ManufacturerPanorama Antennas Ltd
Product NameDWMM4[G]-6-60 Antenna
Application/UsageCellular Network
Manufacturer Part NumberDWMM46605NP
Manufacturer Website Addresshttp://www.panorama-antennas.com
Marketing Information

The DWMM4[G]-6-60 | Hammerhead Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.
Package Contents
  • DWMM4[G]-6-60 Antenna
  • Mounting Bracket
  • Screws
  • Wall Plugs
  • Clamps
Width1.57"
Height8.70"
Antenna Gain (Isotropic)7 dBi
Operating Frequency Range1427MHz - 6000MHz
Voltage Standing Wave Ratio (VSWR)<2.5:1
Product ColorWhite
DirectivityOmni-directional
Antenna Gain26 dB
Product TypeAntenna
Product FamilyDWMM4[G]-6-60
Operating Frequency Range617MHz - 960MHz
