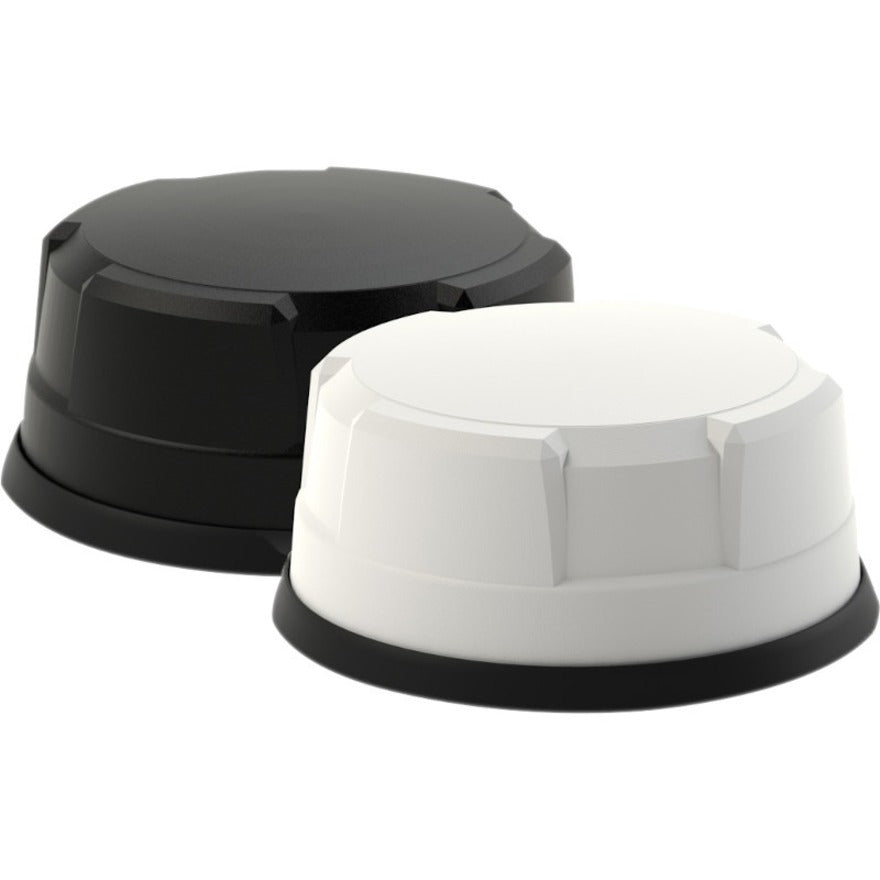

    Panorama Antennas MAKO LGM Antenna
1 1

Panorama Antennas MAKO LGM Antenna

Panorama Antennas MAKO LGM Antenna

SKU: 1067624461      MFR: Panorama Antennas Ltd

Product Description

Panorama Antennas MAKO LGM Antenna - 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 960 MHz 4.9 GHz to 7.2 GHz 1562 MHz to 1612 MHz - 26 dB - Wireless Data Network Cellular Network GPS - Black - Panel Mount - SMA FME Connector

Manufacturer : Panorama Antennas Ltd

Manufacturer Part No : LGMDM4B-6-60-24-58

Features

  • Provides optimized pattern coverage with 617 MHz to 960 MHz operating frequency range
  • Designed for wireless data network
  • Operates at 26 dB gain
  • Can be mounted as panel mount

Product Details

Product TypeAntenna
Antenna Gain26 dB
Antenna TypeDome
Product ColorBlack
Operating Frequency Range617 MHz to 960 MHz
Diameter7.09"
Height3.15"
Connector TypeSMA
Product SeriesLGM
Brand NamePanorama Antennas
Form FactorPanel Mount
ManufacturerPanorama Antennas Ltd
Product NameMAKO LGM Antenna
Product LineMAKO
Application/UsageWireless Data Network
Manufacturer Part NumberLGMDM4B6602458
Manufacturer Website Addresshttp://www.panorama-antennas.com
Marketing Information
  • Low Profile 4x4 4G/5G MiMo
  • Up to 6x6 MiMo Dual Band WiFi
  • Optional GPS/GNSS Active Antenna 26dB LNA
The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS Glonass Galileo QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
Power SourceDC Power
Product FamilyMAKO LGM
View full details
$347.99 USD
$347.99
Sale Sold out

Back Order

Get it by Thu, Nov 12 - Tue, Nov 17


Update


Shipping calculated at checkout.

Panorama Antennas MAKO LGM Antenna - 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 960 MHz 4.9 GHz to 7.2 GHz 1562 MHz to 1612 MHz - 26 dB - Wireless Data Network Cellular Network GPS - Black - Panel Mount - SMA FME Connector

Manufacturer : Panorama Antennas Ltd

Manufacturer Part No : LGMDM4B-6-60-24-58

Features

  • Provides optimized pattern coverage with 617 MHz to 960 MHz operating frequency range
  • Designed for wireless data network
  • Operates at 26 dB gain
  • Can be mounted as panel mount

Product Details

Product TypeAntenna
Antenna Gain26 dB
Antenna TypeDome
Product ColorBlack
Operating Frequency Range617 MHz to 960 MHz
Diameter7.09"
Height3.15"
Connector TypeSMA
Product SeriesLGM
Brand NamePanorama Antennas
Form FactorPanel Mount
ManufacturerPanorama Antennas Ltd
Product NameMAKO LGM Antenna
Product LineMAKO
Application/UsageWireless Data Network
Manufacturer Part NumberLGMDM4B6602458
Manufacturer Website Addresshttp://www.panorama-antennas.com
Marketing Information
  • Low Profile 4x4 4G/5G MiMo
  • Up to 6x6 MiMo Dual Band WiFi
  • Optional GPS/GNSS Active Antenna 26dB LNA
The L[G]M[X]M4[X]-6-60[-24-58] range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MiMo WiFi 2.4/5.0GHz or 4x4 WiFi 6E 2.4/4.9-7.2GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS Glonass Galileo QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
Power SourceDC Power
Product FamilyMAKO LGM
