Jumbo Mounts

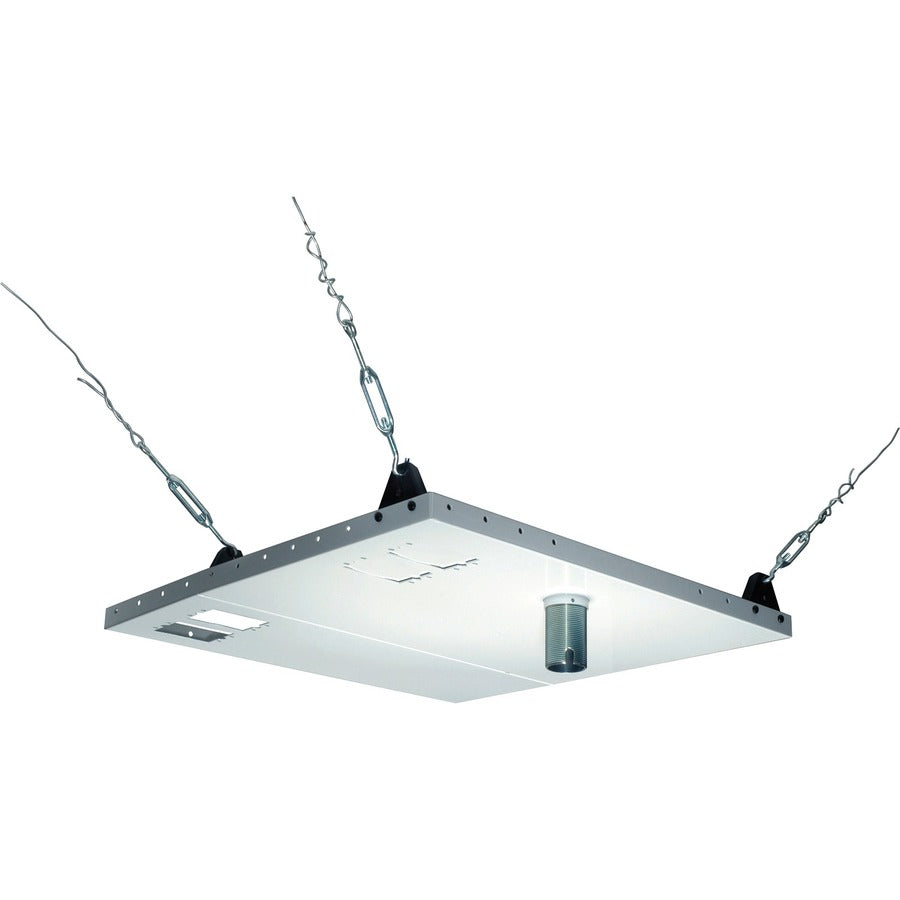

The CMJ453 Suspended Ceiling Plate consists of a two piece 24"(610mm) x 24"(610mm) ceiling tray that offers up to 5 diff points of mount attachment. The unit is suspended by four tie wires from the true ceiling above and a fifth "safety cable" is also provided. The adjustable 1-1/2"-11.5 NPT fitting accommodates an extension column or projector mount.

• 1 x Ceiling Tray
• 1 x Filler Tray
• 8 x 10 mm Long Phillips Screw
• 4 x 20 mm Long Phillips Screw
• 4 x Hanger bracket
• 4 x Hanger Bracket Clamp
• 4 x Turnbuckle
• 1 x 20' (6.1 m) Tie Wire
• 1 x Safety Cable
• 2 x Safety Cable Clamp
• 5 x Eye Bolt
• 5 x Concrete Anchor
• 4 x 1/4"-20 x 3/8" Screws
• 4 x 1/4"-20 Nuts
• 1 x Allen Wrench
• 1 x Flush Mount Tube

UL

• Three position mounting capabilities(off center to left or right and centered)
• Knockout panels for electrical outlet boxes (Raco 445 or Appleton 383 recommended) and antenna leads
• Safety Cable and Cable Clamp
