Plasma and LCD Flat Panel Screens: 32" - 50"

Offer the best view in the room with ability to swing tilt or articulate the most popular sizes of displays. Self-lubricating bushings enable the arms to smoothly extend while adjustable tilt and pivot position the display to the optimal viewing angle. The PLA50 offers versatility for the most popular sizes of display in a wide range of installations in lobbies hotel rooms boardrooms public displays or home theaters.

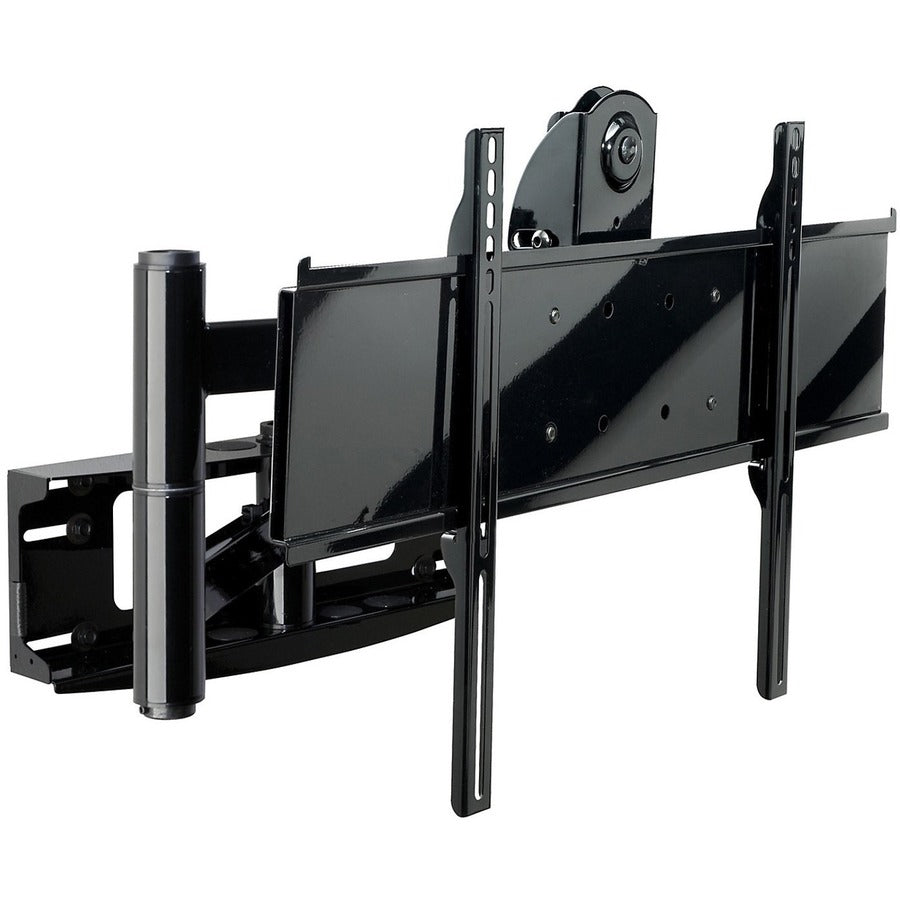

HG PLA50-UNLP-GB Articulating Wall Arm Includes:

• Mesh cord sheath
• Universal adapter plate
• 1 x Wall plate
• 1 x Tilt-roll assembly
• 1 x Arm assembly
• 1 x Wall support arm axle
• 3 x Vinyl trim
• 8 x Screw bolt (M10 x 1.5 x 15 mm)
• 1 x Nylon washer (.505 x .75 x .062" )
• 1 x Tilt adjustment knob
• 1 x Carriage bolt (3/8"-16 x 3.25" )
• 2 x Delrin washer (1.525 x 2 x .062" )
• 1 x Socket Cap screw (#8-32 x .375" )
• 8 x Plastic finishing cap
• 1 x Holding pin
• 1 x Retainer plug
• 6 x Wood screw (5/16 x 3")
• 8 x Washer (.250 x 1 x .068" )
• 1 x Allen wrench (9/64")
• 4 x Cable management clips
• 4 x Cable tie
• 1 x Polyester mesh sleeve (36")
• 6 x Anchor
• 1 x Adapter bracket
• 2 x Shallow adapter bracket
• 2 x Deep adapter bracket
• 1 x 6mm Allen wrench

• Pivot: Up to 180 degree
• Roll: +/-7 degree to level screen horizontally at any position
• Extends out to 30.5" retracts to 5.6"
• Mounts to two wood studs or concrete
• Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts
