cUL

Plasma and LCD Flat Panel Screens: 37" - 60"

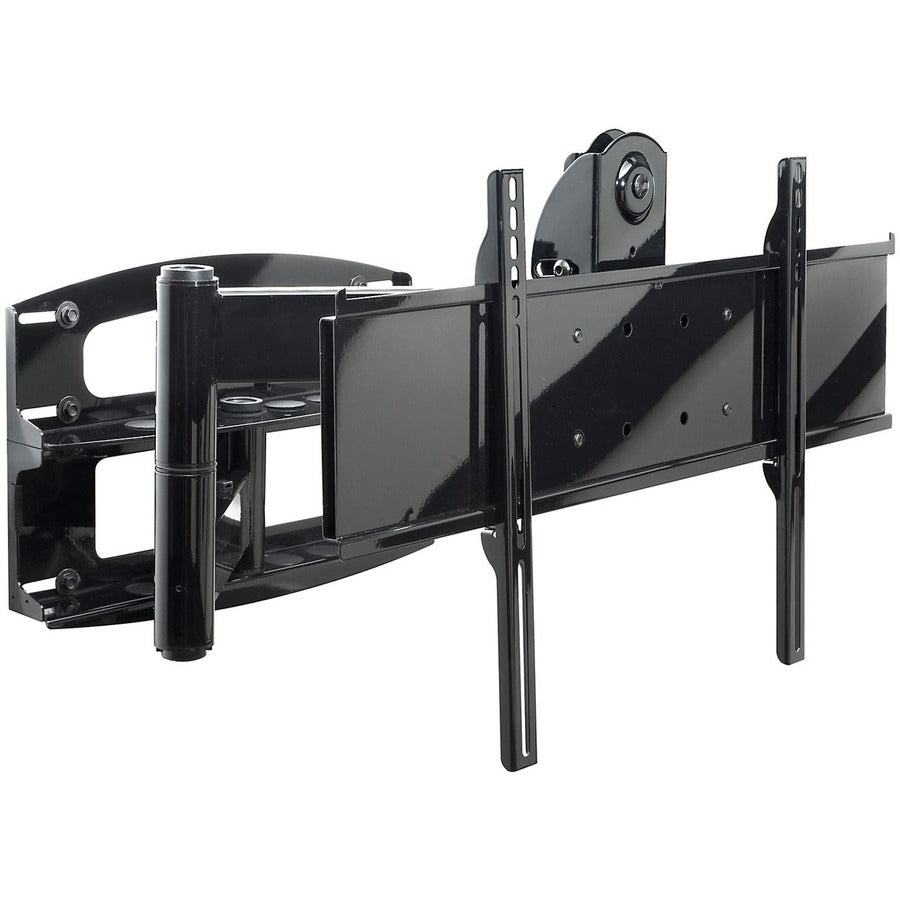

The PLA60 offers a single solution for displays up to 95" in a wide range of installations including lobbies hotel rooms boardrooms public displays or home theaters. Its all-steel construction enables it to hold screens up to 175lb while its self-lubricating bushings enable the arms to smoothly articulate and position your display for optimal viewing. Combined with adjustable tilt and pivot capabilities the PLA60 is the only wall arm you need.

HG PLA60-UNLP-GB Articulating Wall Arm Includes:

• Mesh cord sheath
• Universal adapter plate
• 1 x Wall plate
• 1 x Tilt-roll assembly
• 1 x Arm assembly
• 1 x Wall support arm axle
• 3 x Vinyl trim
• 8 x Screw bolt (M10 x 1.5 x 15 mm)
• 1 x Nylon washer (0.505 x 0.75 x 0.062" )
• 1 x Tilt adjustment knob
• 1 x Carriage bolt (3/8"-16 x 3.25" )
• 2 x Delrin washer (1.525 x 2 x 0.062" )
• 1 x Socket Cap screw (#8-32 x 0.375" )
• 8 x Plastic finishing cap
• 1 x Holding pin
• 1 x Retainer plug
• 8 x Wood screw (5/16 x 3")
• 8 x Washer (0.250 x 1 x 0.068" )
• 1 x Allen wrench (9/64")
• 4 x Cable management clips
• 4 x Cable tie
• 1 x Polyester mesh sleeve (36")
• 1 x Allen wrench (6 mm)
• 1 x Adapter bracket
• 2 x Shallow adapter bracket
• 2 x Deep adapter bracket
• 1 x Allen wrench
• 8 x Anchor

• +10°/-5° tilt
• Pivot: Up to 180 degree
• Roll: +/-7 degree to level screen horizontally at any position
• Extends out to 32.4" retracts to 5.6"
• Mounts to two wood studs or concrete
• Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts
