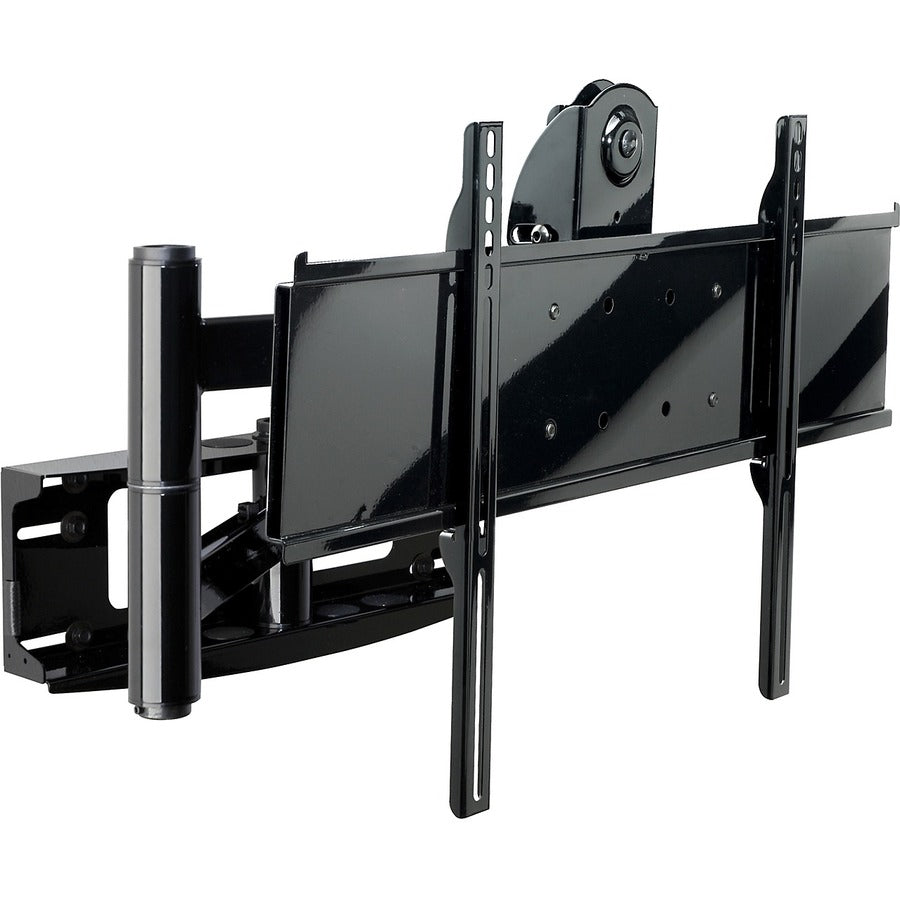

32"- 50" Plasma and LCD Screens

Offer the best view in the room with ability to swing tilt or articulate the most popular sizes of displays. Self-lubricating bushings enable the arms to smoothly extend while adjustable tilt and pivot position the display to the optimal viewing angle. The PLA50 offers versatility for the most popular sizes of display in a wide range of installations in lobbies hotel rooms boardrooms public displays or home theaters.

Articulating Wall Arm Includes:

• 1 x Wall plate
• 1 x Tilt-roll assembly
• 1 x Arm assembly
• 1 x Wall support arm axle
• 3 x Vinyl trim
• 8 x (M10 x 1.5 x 15 mm) Screw bolt
• 1 x (0.505 x 0.75 x 0.062") Nylon Washer
• 1 x Tilt adjustment knob
• 1 x Carriage bolt (3/8"-16 x 3.25")
• 2 x (1.525 x 2 x .062") Delrin washer
• 1 x (#8-32 x 0.375") Socket head cap screw
• 8 x Plastic finishing Cap
• 1 x Holding pin
• 1 x Retainer plug
• 6 x (5/16 x 3") Wood screw
• 6 x (0.250 x 1 x .068") Washer
• 1 x 9/64" Allen wrench
• 4 x Cable management clips
• 4 x Cable tie
• 1 x 36" Polyester mesh sleeve
• 1 x 6 mm Allen wrench
• 6 x Anchor
• 1 x Adapter bracket
• 2 x Shallow adapter bracket
• 2 x Deep adapter bracket
• 1 x Allen wrench
• Mesh cord sheath

cUL

• Mounts to two wood studs or concrete (accessory required)
• Up to 180° pivot
• +/-7° roll to level screen horizontally at any position
• Extends out to 29.3" retracts to 4.5" (plus thickness of required adapter plate)
• Roll feature allows for easy screen leveling
• Folds flat against the wall
• Cord management keeps cords organized and out of sight
