LCD and Plasma Screens

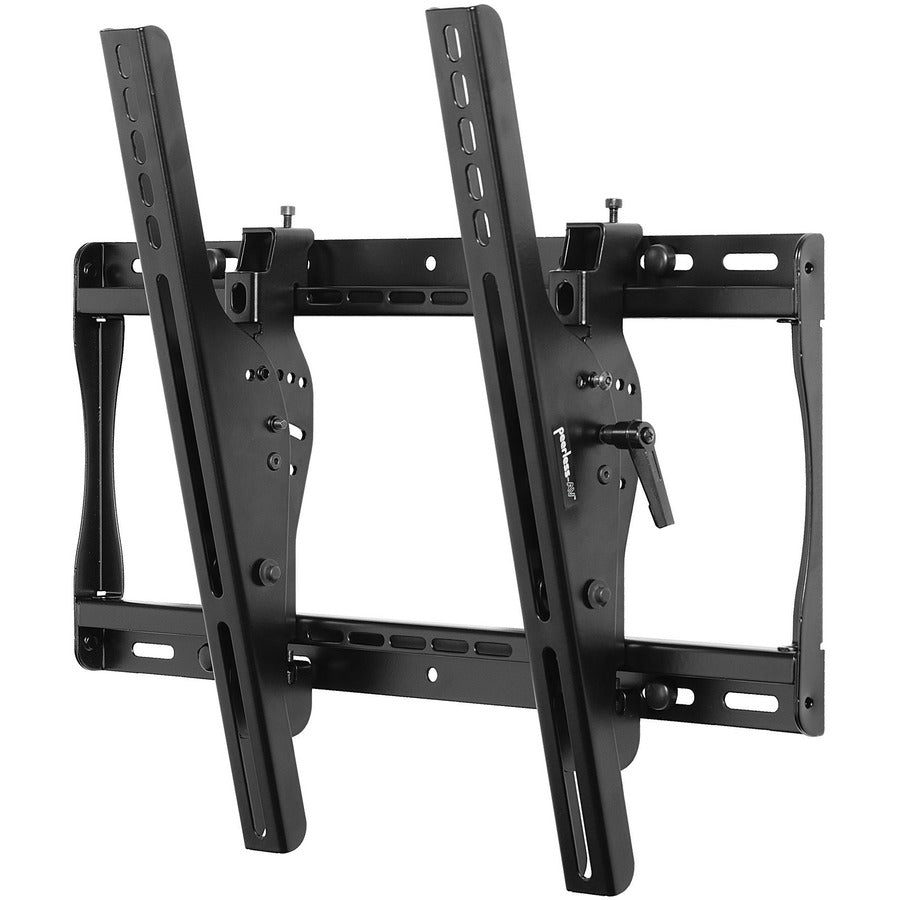

The SmartMount® Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST640 models deter tampering and theft. The open wall plate design offers total wall access increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick simple and secure installation.

• SmartMount Universal Tilt Wall Mount for 32" to 50" Displays
• Wall and Display Installation Hardware
• Installation Instructions

• Universal mount fits displays with mounting patterns up to 458 x 405mm (18.02" W x 15.95" H)
• Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
• Easy-Grip ratcheting handle locks tilt angle into place
• Included IncreLok feature offers fixed tilt lock in 5° increments when used
• Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
• Horizontal display adjustment up to 6.00" (152mm) for centering display on wall
• Landscape to portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in portrait mode
• Mounts to wood studs concrete cinder block or metal studs (metal stud accessory required)
