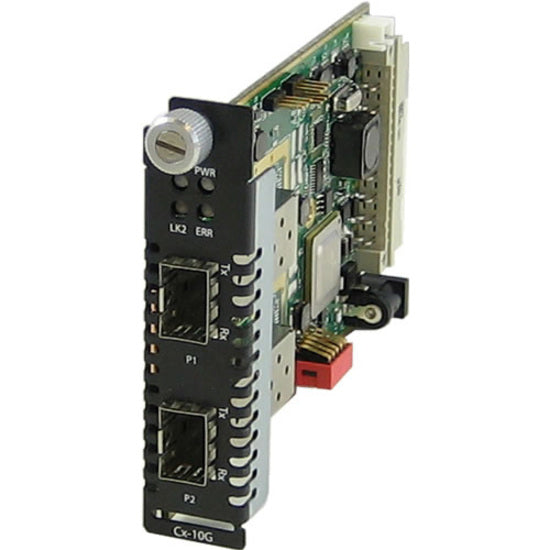

Installed in a high density MCR1900 Media Converter Chassis Perle C-10G Media Converter Modules transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber copper to fiber or copper to copper media conversion.

Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC) also known as twinax or XFP 10Gbase-CX4 transceivers.

Emissions:

• FCC Part 15 Class A
• CISPR 22 Class A
• EN55022 Class A
• EN61000-3-2

Immunity:

• EN55024

Electrical Safety:

• UL 60950-1
• EN60950
• CE

IEEE Protocol:

• 802.3ae
• 802.3ak

Perle Systems MCR1900 Media Converter Chassis
