Daewoo 37" - 63" L710 Flat Panel Display

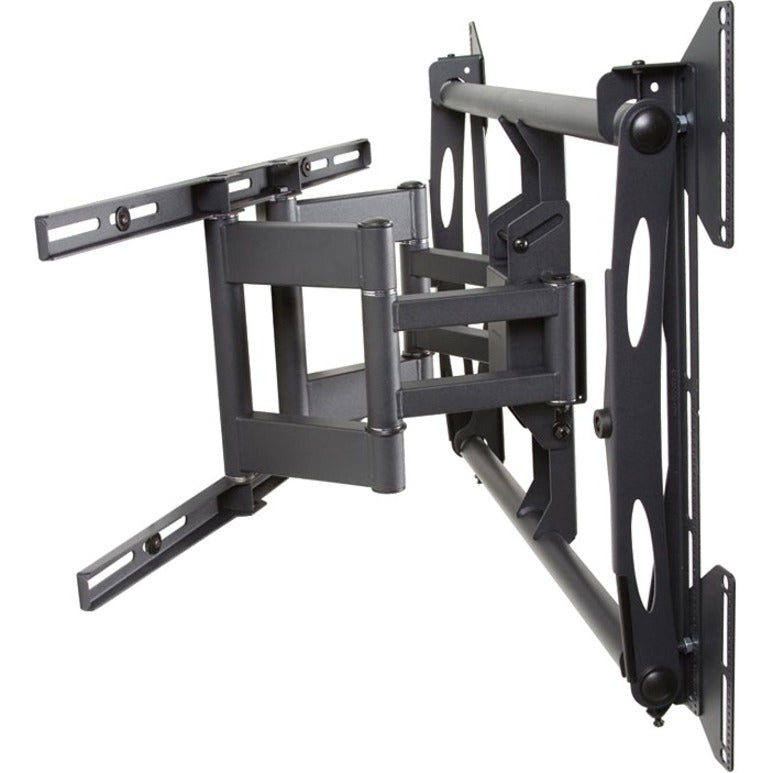

Swing-out mount for flat-panel displays up to 175 lb.

The AM175 is a swingout mount for flat-panel displays up to 175 lb./79.5 kg. With versatility at the core of its design it features 10° of continuous tilt and 45° of swivel that allow for dynamic viewing at a variety of angles. If you need an extension from the wall the AM175 has a scissor-style construction that can bring the display 16 inches from the wall.

Engineered with safety as a top priority the patented Griplates™ (US Patent number 8035757 B2) support the flat-panel and hold the display tight on its mounting brackets. In addition capture screws secure displays to the wall plate. Another great feature that Premier Mounts built into the AM175 is the ability to level the mount post-installation. Fine-tune adjustment knobs help to get the display level either after installation or on maintenance calls.

• Adapters Reach Extra Wide Mounting Patterns
• 4 x 5/16" Flat Washers
• Adapter Plates and Hardware
• 4 x Adapter Plates
• 4 x M8 Nylon Nuts
• 1 x Swingout Arm
• 2 x Universal Mounting Brackets
• 6 x 5/16" Flat Washers
• 8 x Griplate
• 6 x 5/16" x 3" Lag Bolts
• 1 x Thread Depth Indicator
• 1 x Level
• 8 x (M4 x 16mm) Screws
• 4 x (M4 x 25mm) Screws
• 6 x (M5 x 12mm) Screws
• 6 x (M5 x 16mm) Screws
• 4 x (M5 x 25mm) Screws
• 6 x (M5 x 20mm) Screws
• 4 x (M5 x 50mm) Screws
• 8 x (M6 x 12mm) Screws
• 6 x (M6 x 20mm) Screws
• 6 x (M6 x 30mm) Screws
• 6 x (M8 x 20mm) Screws
• 6 x (M8 x 25mm) Screws
• 6 x (M8 x 30mm) Screws
• 4 x (M8 x 35mm) Screws
• 4 x (M8 x 70mm) Screws
• 6 x ¼" Nylon Spacer (Large)
• 12 x ½" Nylon Spacer (Large)
• 6 x 1" Nylon Spacer
• 6 x ¼" Nylon Spacer (Small)
• 6 x 9/16" Nylon Spacer
• 4 x Nylon Sleeve
• 6 x 5/16" Flat Washer (Metal)

• Scissor-style mount extends straight from wall
• Extends from 3.5"-16"
• Lightweight tubular design makes installation easy
• Features patented Griplate System
• Combine with INW-AM325 In-wall box for a "zero profile" installation
• Pivot: +/-45°
• Mounting Pattern: 200mm x 200mm (Min) - 700mm x 500mm (Max)
