Projector

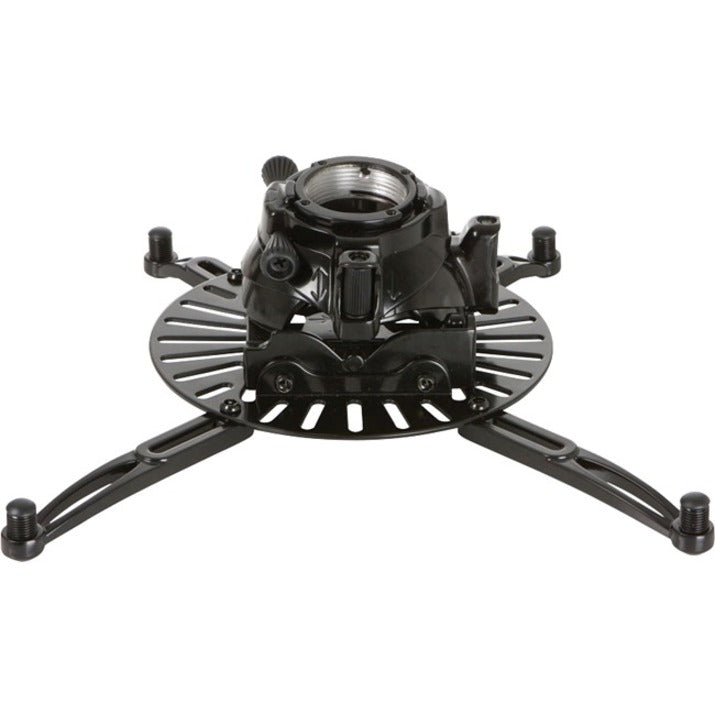

With the ease-of-use and precise adjustability the universal Fine-Tune Projector mount (FTP) becomes a true time saver during installation and service calls. The FTP's enhanced fine-tune features lets the installer adjust pitch roll and yaw independently. After aligning the projectors image to the final projection settings The FTP can be locked in position with one thumb screw.

• 1 x FTP Dome
• 1 x Universal Projector Plate
• 1 x Quick Set Base
• 2 x Short Mounting Legs
• 4 x Long Mounting Legs
• 6 x Barrel Caps
• 2 x (14 x 3") Wood Screws
• 1 x M5 Allen Wrench
• 1 x M3 Security Allen Wrench
• 1 x Installation Disk
• 1 x (M6 x 6mm) Security Set Screw
• 4 x (M6 x 8mm) Security Screw
• 5 x (M5 x 12mm) Security Screw
• 4 x (M2.5 x 10mm) Security Screw
• 4 x (M2.5 x 12mm) Security Screw
• 4 x (M3 x 16mm) Security Screw
• 10 x M3 Flat Washer
• 4 x (M4 x 10mm) Security Screw
• 4 x (M4 x 12mm) Security Screw
• 8 x (M6 x 12mm) Security Screw
• 1 x (¼-20 x 5/16") Security Screw

• Pitch: +5/-15°
• Roll: +/-5°
• Yaw: +/-20°
• Adapts to pipe or ceiling structures
• Easy-to-install quick installation disk
• Detachable base for quick service while maintaining all adjustment settings
