TS-253E | Dual 2.5GbE 8GB RAM and long-term availability

The TS-253E features 2.5GbE connectivity 8GB RAM and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems virtual machines file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E providing a great choice for businesses requiring matching NAS models deployed in multiple locations.

2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.

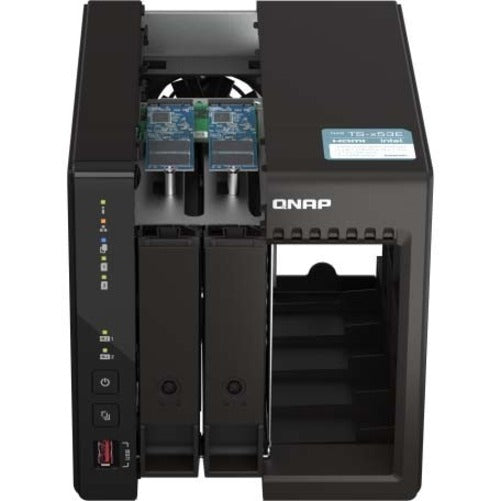

Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.

System performance and multitasking is optimized with 8GB RAM.

The TS-253E will be available and supported by QNAP for an extended period up to 2029.

The dual-screen extension can be used for surveillance or 4K high-resolution video playback.

Supports USB expansion enclosures.

Available Models | TS-253E-8G

Intel® Celeron® J6412 4-core/4-thread processor burst up to 2.6 GHz 8 GB on board

Intel quad-core processor burst up to 2.6 GHz with AES-NI encryption

Processor

Intel® Celeron® J6412 quad-core processor (burst up to 2.6GHz)

RAM

Onboard 8GB (non-expandable)

Encryption

The Intel® AES-NI encryption engine boosts encryption performance while maintaining the confidentiality of NAS data.

USB ports

2 x USB 3.2 Gen2
2 x USB 2.0

Long-term availability

The TS-253E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-253E an ideal choice for MSP SI and other IT-related businesses requiring matching NAS models for long-term projects.

24/7 surveillance solution for stores and branch offices

The TS-253E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices stores and other working spaces.

Record/monitor your environment

QVR Elite is QNAP's subscription-based smart surveillance solution allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated independent storage space for surveillance data on the TS-253E and enjoy simplified camera management storage space allocation camera live viewing and playback.

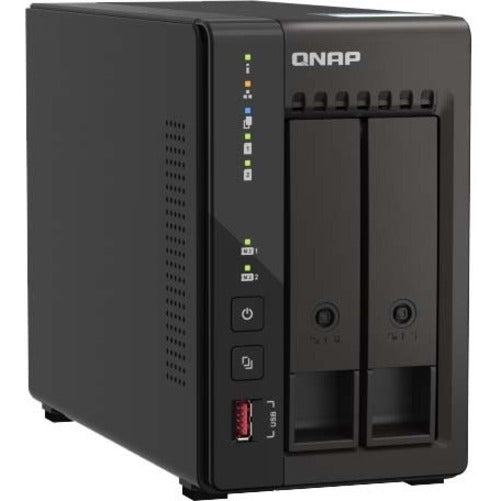

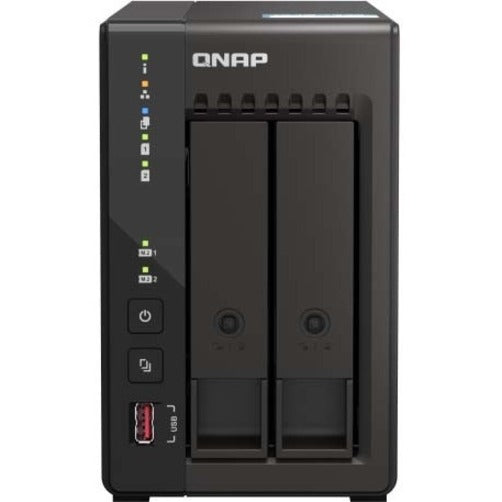

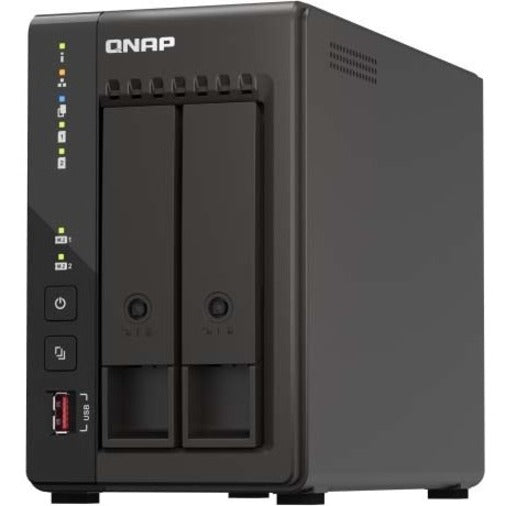

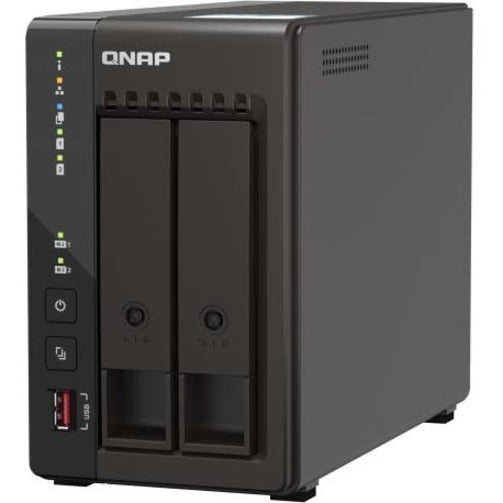

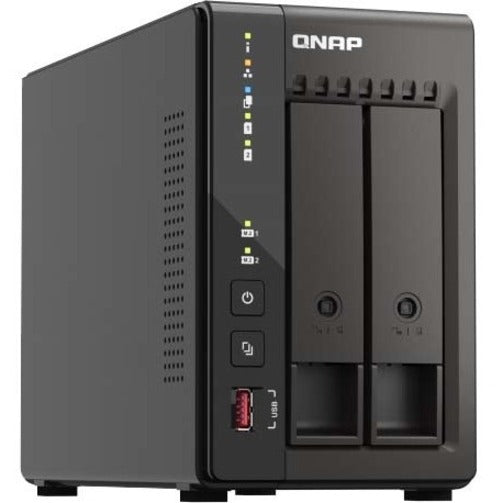

• Turbo NAS TS-253E-8G SAN/NAS Storage System
• 1 x Ethernet Cable
• 1 x Power Cord
• AC Adapter
• 2 x Flat Head Screw (for M.2 SSD)
• 8 x Flat Head Screw (for 3.5" HDD)
• 6 x Flat Head Screw (for 2.5" HDD)
• Quick Installation Guide (QIG)
• 2 x Drive Tray Keys
