TS-664 | Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and Virtualization applications

Powered by an Intel® Celeron® N5095 quad-core processor (burst up to 2.9GHz) the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots the TS-664 provides flexibility in extending NAS functionality allowing you to install a QM2 card for M.2 SSD caching or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 8 GB RAM for running light VMs and Containers and supports multi-cloud backup cloud storage gateways 4K HDMI output and real-time transcoding alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient reliable 2.5GbE NAS.

• 2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

• M.2 SSD caching

  Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance or Edge TPU for AI image recognition.

• PCIe expandability

  Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664 including a Multi-Gig 10GbE/5GbE/2.5GbE network card a QM2 card or a USB 3.2 Gen 2 (10Gbps) card.

• License-free virtualized environment

  Host multiple containerized apps to run a wide range of applications and services.

• Drives Auto-Tiering

  Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

• 4K HDMI

  4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.

Quad-core high performance

The TS-664 is powered by an Intel Celeron N5095 quad-core processor and supports 8 GB DDR4 memory two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI-powered image recognition and caching with TPU and PCIe expansion

The TS-664 has two M.2 PCIe Gen3 slots enabling SSD caching or SSD storage pools for improved performance or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage

The TS-664 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-664 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

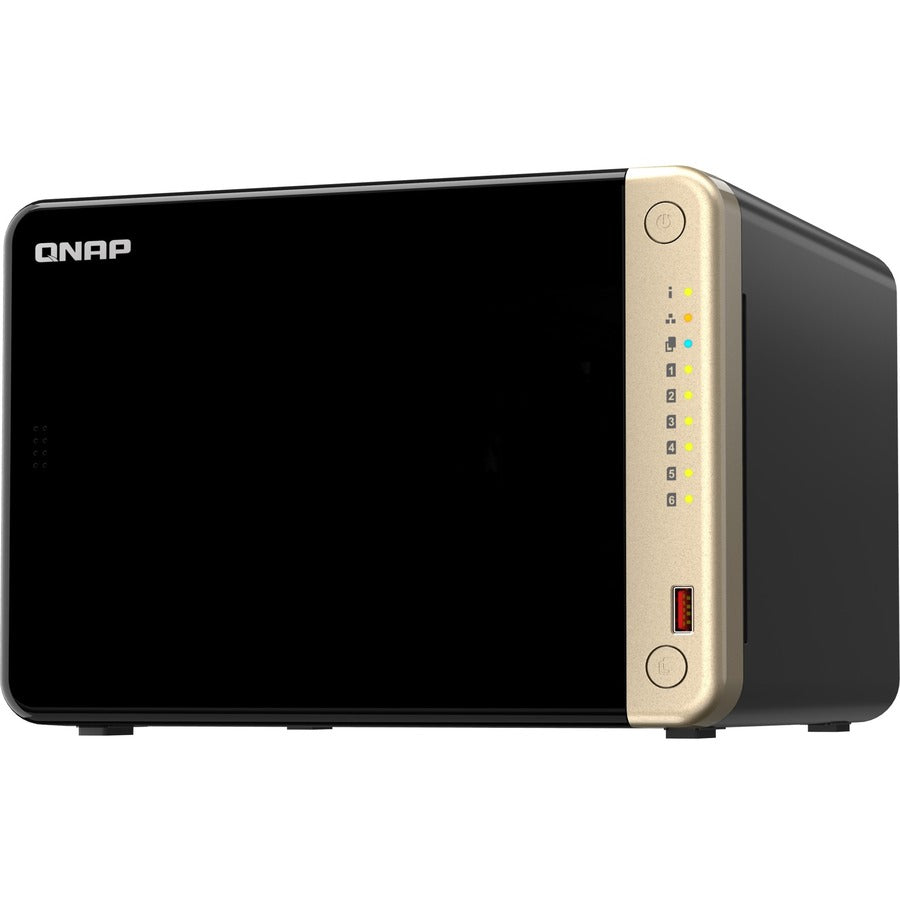

• Turbo NAS TS-664-8G SAN/NAS Storage System
• 1 x Ethernet Cable
• 1 x Power Cord
• 18 x Flat Head Screw (for 3.5" HDD)
• 18 x Flat Head Screw (for 2.5" HDD)
• Quick Installation Guide (QIG)
• AC Adapter
