• EIA-310

Rack Type:

• 4 Post 19" Rack (Server Racks Equipment Racks Cabinet Racks and Open Frame Racks)

Rack Depth:

• Mounting depth range is 15.5" to 31.5" deep (394-800mm)

Square Hole Racks:

• Compatible with the industry standard 3/8" (10mm) square hole racks
• Rack manufacturers including Dell HP-Compaq IBM APC etc.
• Cage nuts included for square hole mounting

Round Hole Racks:

• Compatible with all standard round (non-threaded) holes
• Rack manufacturers including HP and IBM

Threaded Racks:

• Compatible with all standard threads including 10-32 12-24 and Metric M6.
• Rack manufacturers including Chatsworth Shark Great Lakes Middle Atlantic Bud etc.

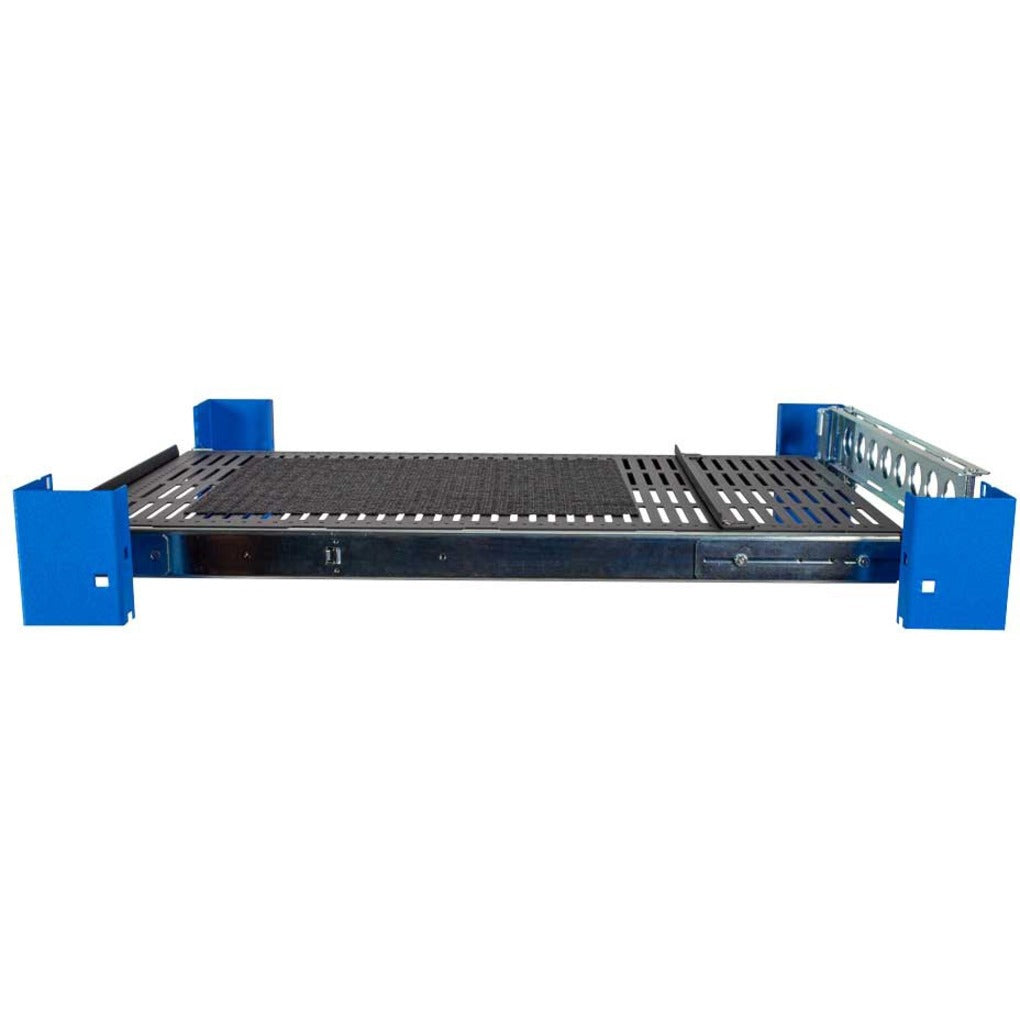

RackSolutions Sliding Equipment Shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lbs (43kgs) weight capacity and will support a wide variety of IT equipment. Computers up to 27" (685mm) deep can be supported on a 19 inch equipment shelf in any 4Post rack. Constructed of 14 GA steel the RackSolutions Sliding Equipment Shelf is designed for storing your non-rack mountable equipment safely. The slide rails extend a full 30" (762mm) on this equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Your purchase includes a removable front equipment stop bar adjustable rear equipment stop bar anti-slip mat and optional straps for securing equipment for transport or seismic applications.
