• The Rack Rails support flange is 23 1/2" (597mm) long
• Rack Rails Minimum Equipment Width: 6 1/4" (413mm)
• Maximum Equipment Width: 17 5/8" (448mm)
• Construction: 0.049" (1mm) steel with a durable zinc plating
• Equipment Mounting: Rack Rails standard thumb screw threads (10-32 12-24 and metric M6)
• Rack Depth: Mounting depth range is 0" to 18" deep
• Compatible with APC CPI Chatsworth Bud and most other racks

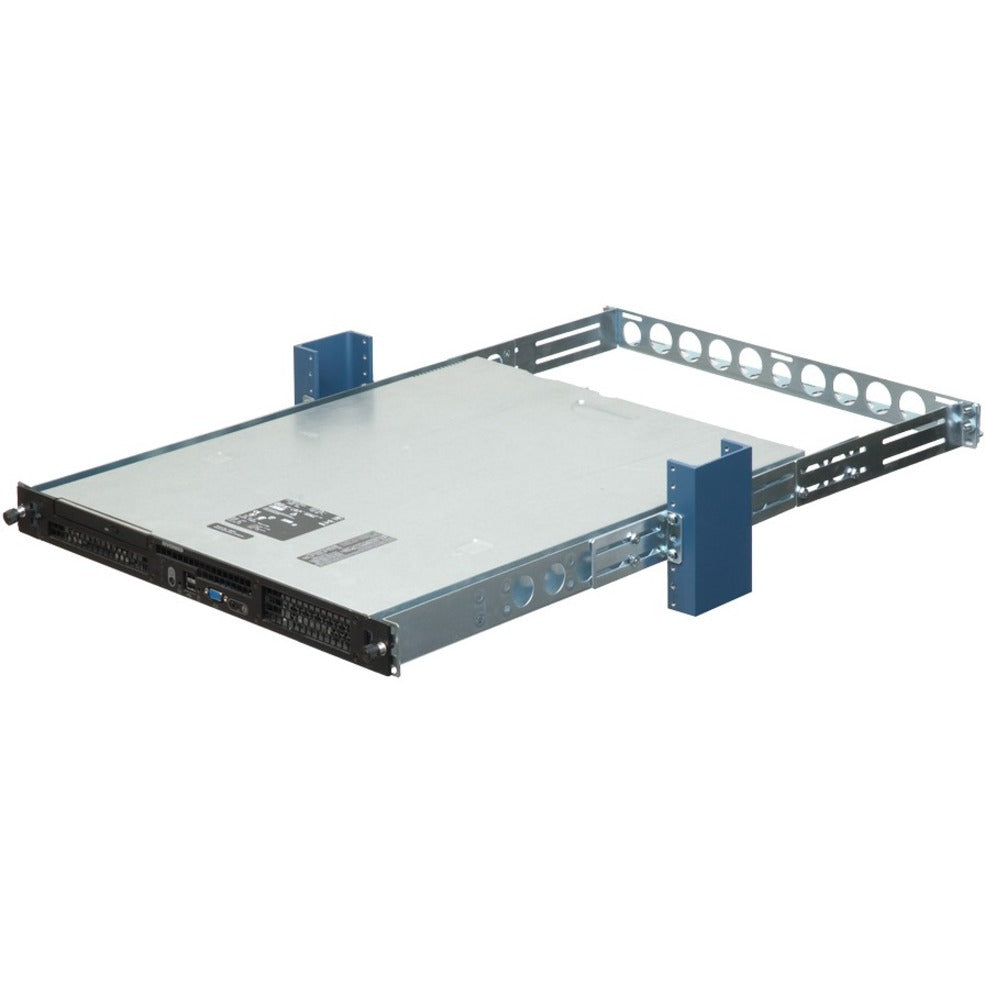

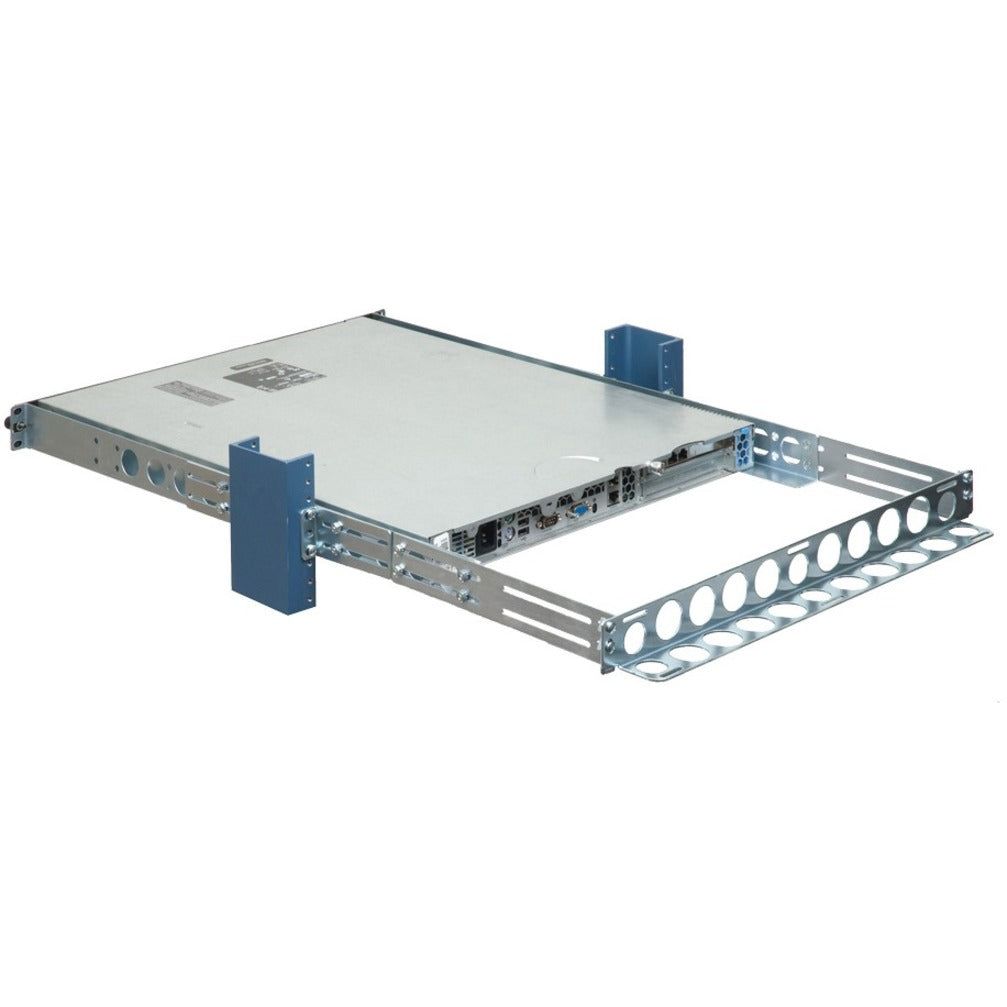

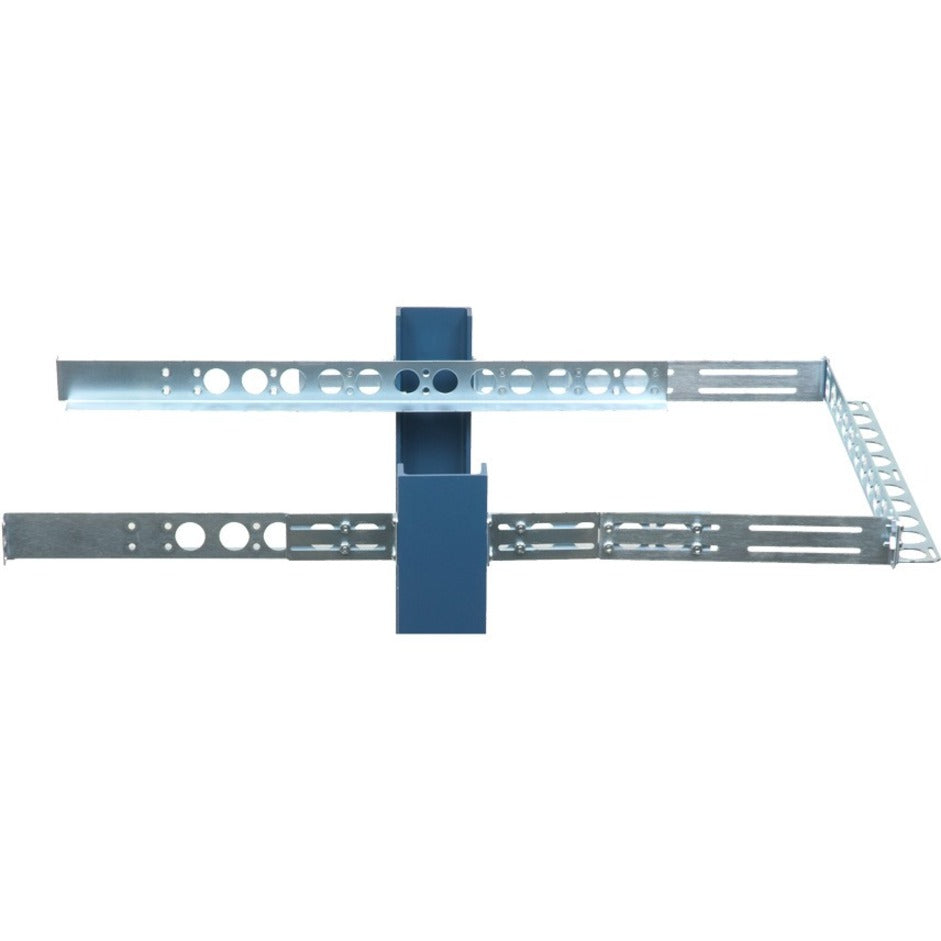

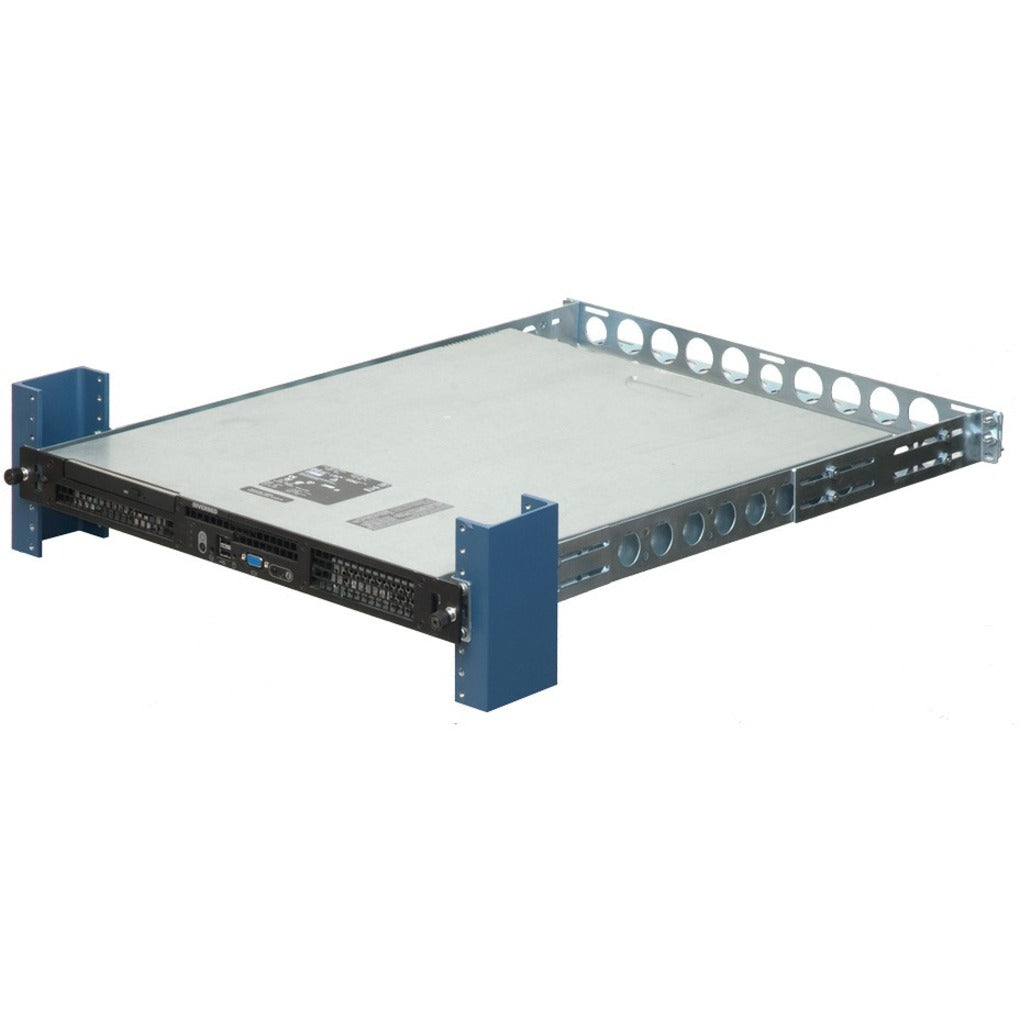

• Support both Center and Flush mount installations
• Velcro straps provided for securing cables

• 1U Rack Mount Rails
• Cabling Crossbar
• Relay Racks
• Screws
• Cage-nuts
• Nuts

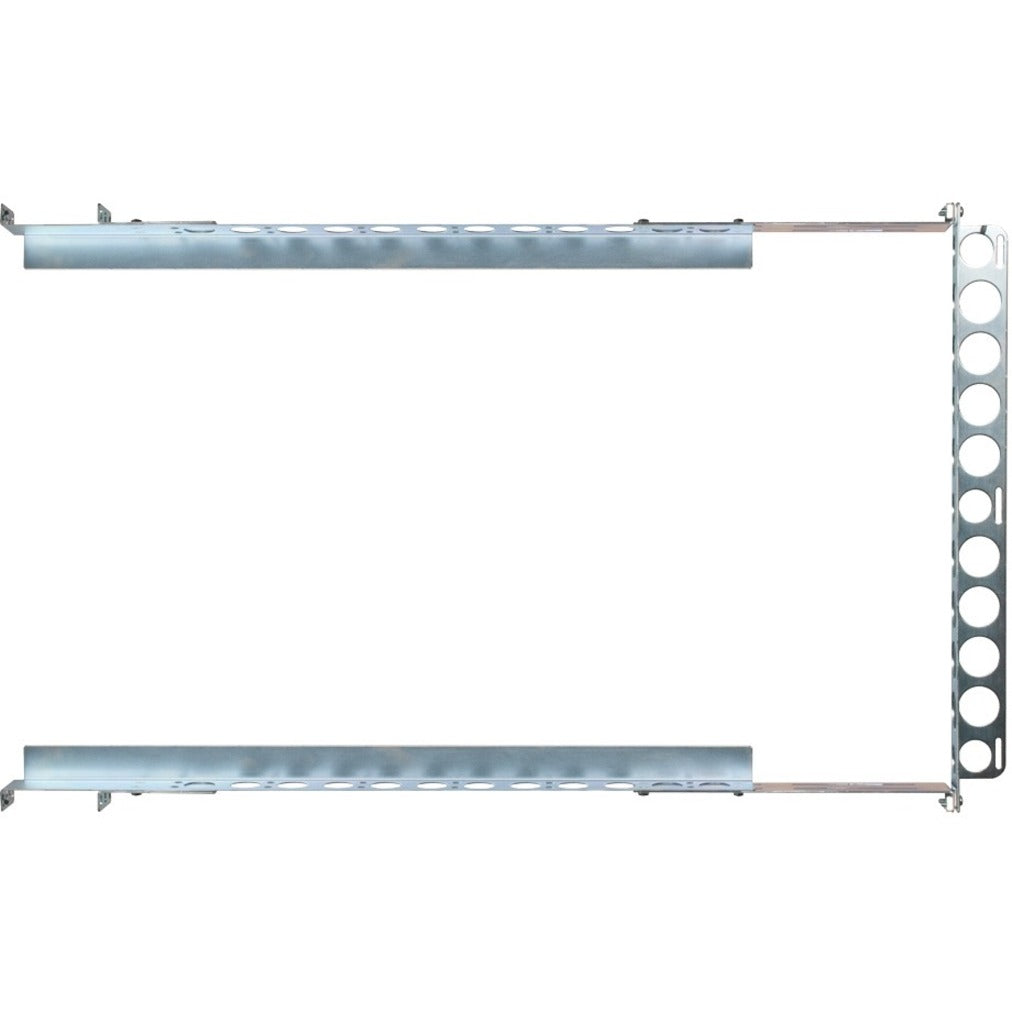

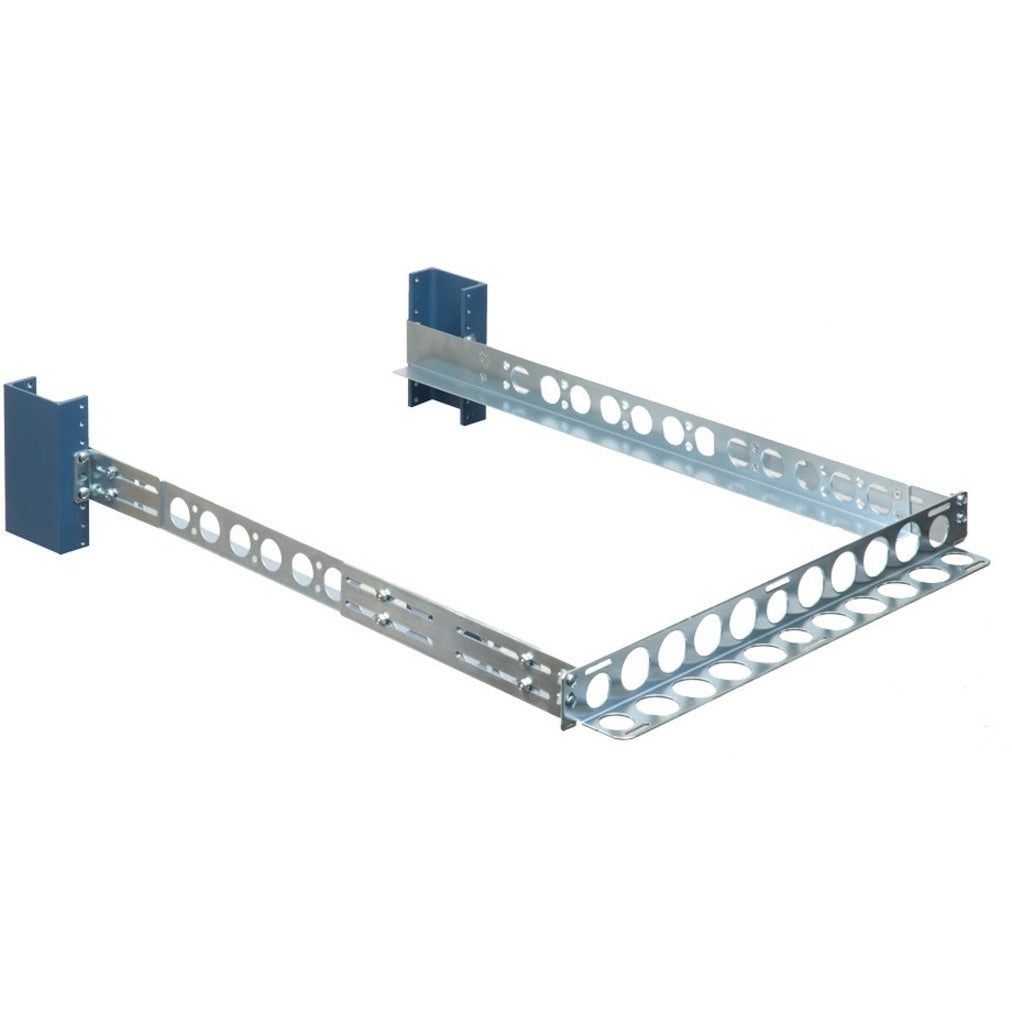

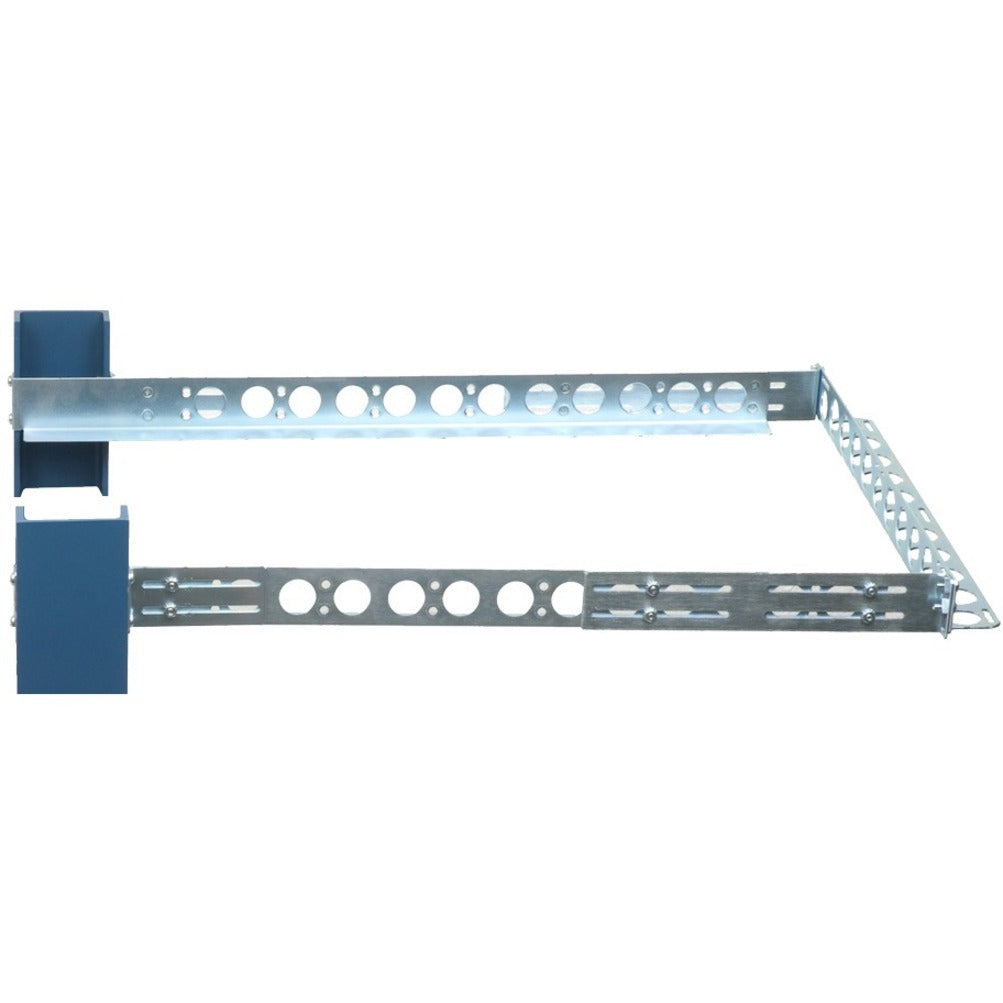

The RackSolutions 2 Post Rack Rails are designed to give users a durable high-performance rail solution for standard 19" server racks. As a result the 2 Post Rack Rails are simultaneously durable and versatile. Durability comes from strong construction principles and a zinc plating finish. This allows the device to support 45 lbs for 1U devices 75 lbs for 2U and a maximum weight of 200 lbs for 3U devices. All of this is achieved in a form factor 24" long with a mounting depth of 10" to 31.75". The 2 Post Rack Rails get their diversity from a form factor compatible with Dell HP and IBM. servers. Furthermore the rails can be mounted in both center and flush settings making them easy to deploy in a variety of settings. This ease is furthered by the rails' compatibility with square round or threaded holes. Besides giving users durability and versatility the rails also offer a reliable professional solution. To make this possible RackSolutions equipped the rails with a built-in cable management bar to ease cable routing and hook-and-loop straps to help keep wires from going astray. The 2 Post Rack Rails ship with screws cage nuts and nuts for all rack types easing installation and ensuring users have all the hardware they need to assemble the server storage solution.

• EIA-310
