• 29in Relay Rack Shelf
• 12-24 and 10-32 screws

• Hole-to-Hole spacing is 18-5/16in
• Shelf depth is measured from front to rear including flanges
• The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges
• The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement
• Rack Shelves can mount up-side-down
• Durable Powder Coated Black finish
• 19in wide at front and back (17.7in Opening in center)
• Equipment Straps Slot
• Flanges Down

• 19" EIA-310 racks
• Almost all 2Post are compatible

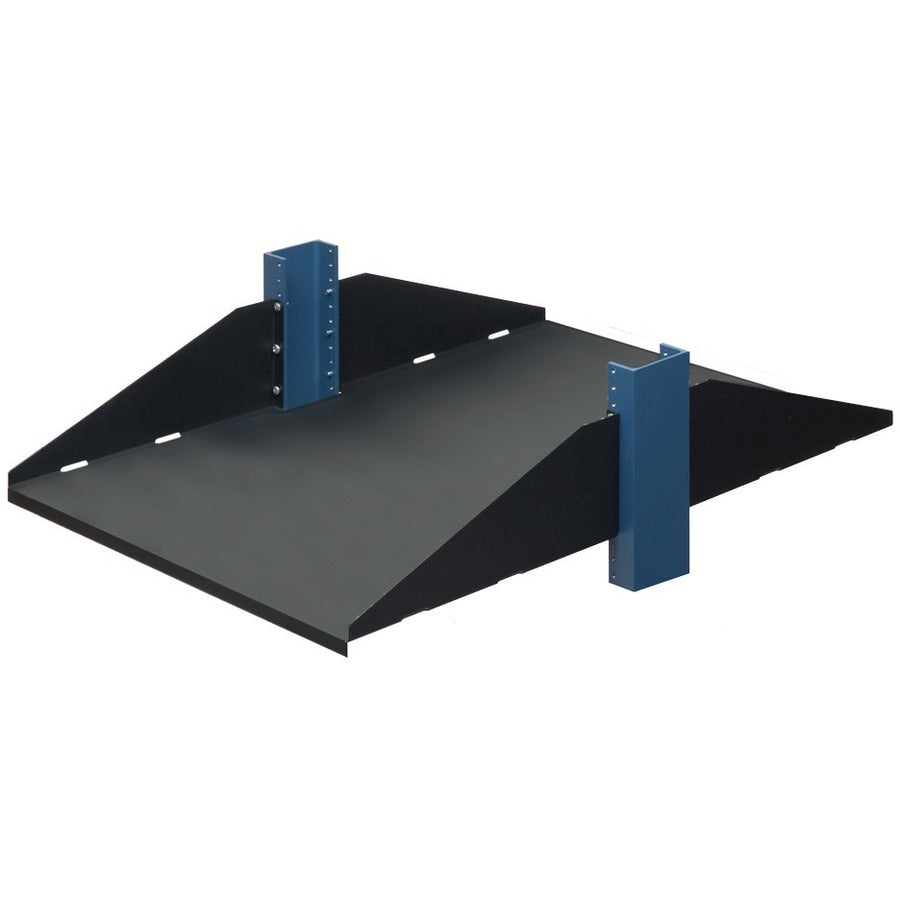

RackSolutions 3U 2 Post Relay Rack Shelf has depth of 29 inches (737 mm) and a 300 pound (136 kgs) weight capacity making it a perfect for solution for mounting large heavy networking IT equipment in a 2Post rack. The shelf features slots along its side used for securing equipment using our equipment straps. Options with flanges also called equipment stops facing either up or down to fit a wider variety of needs. Both vented and solid options are available to assist with airflow. Our 2 Post shelves are compatible with most standard EIA 19" 2 post telco and relay racks.
