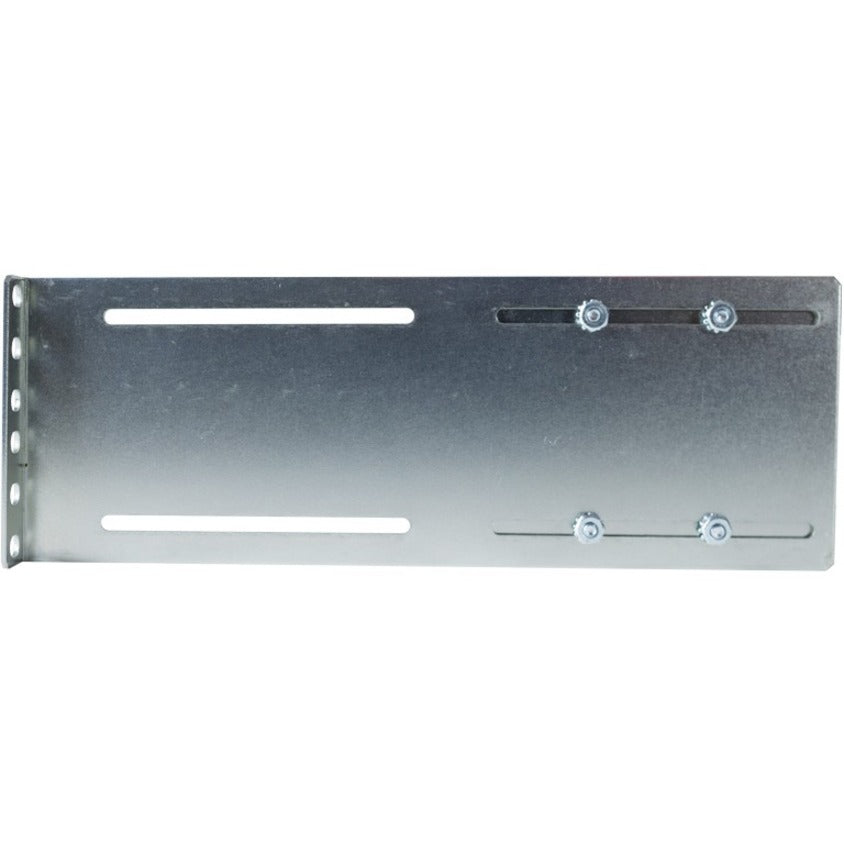

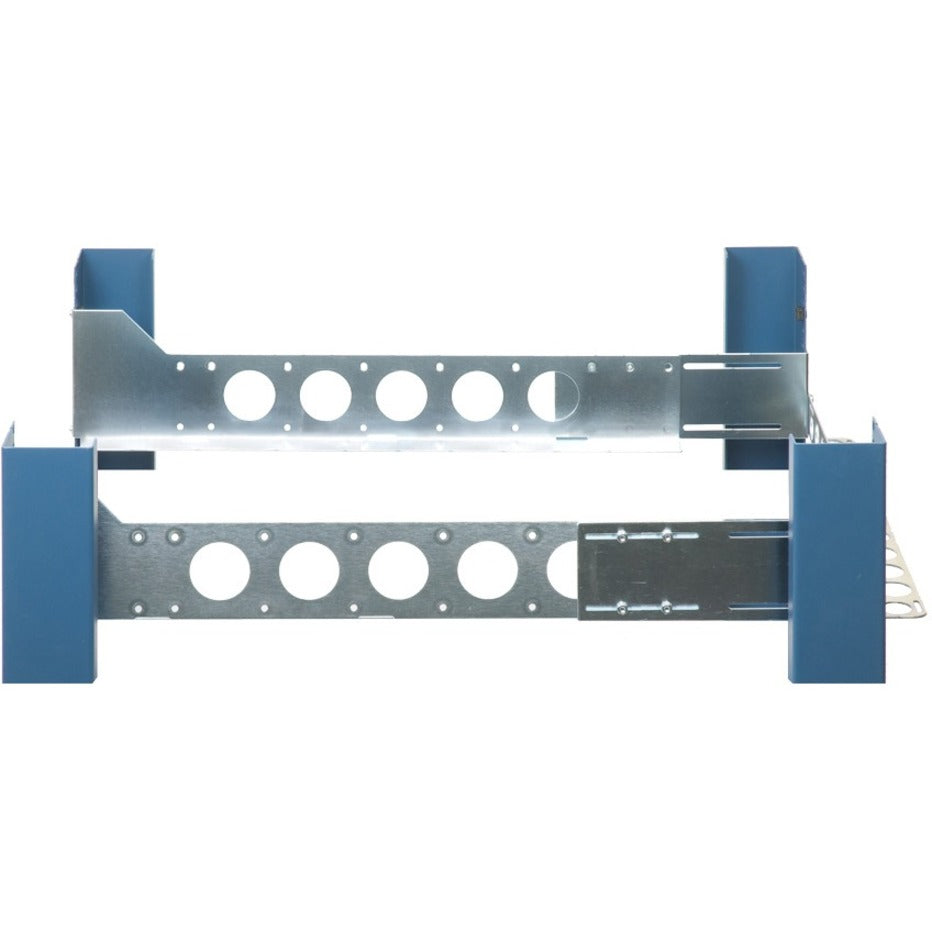

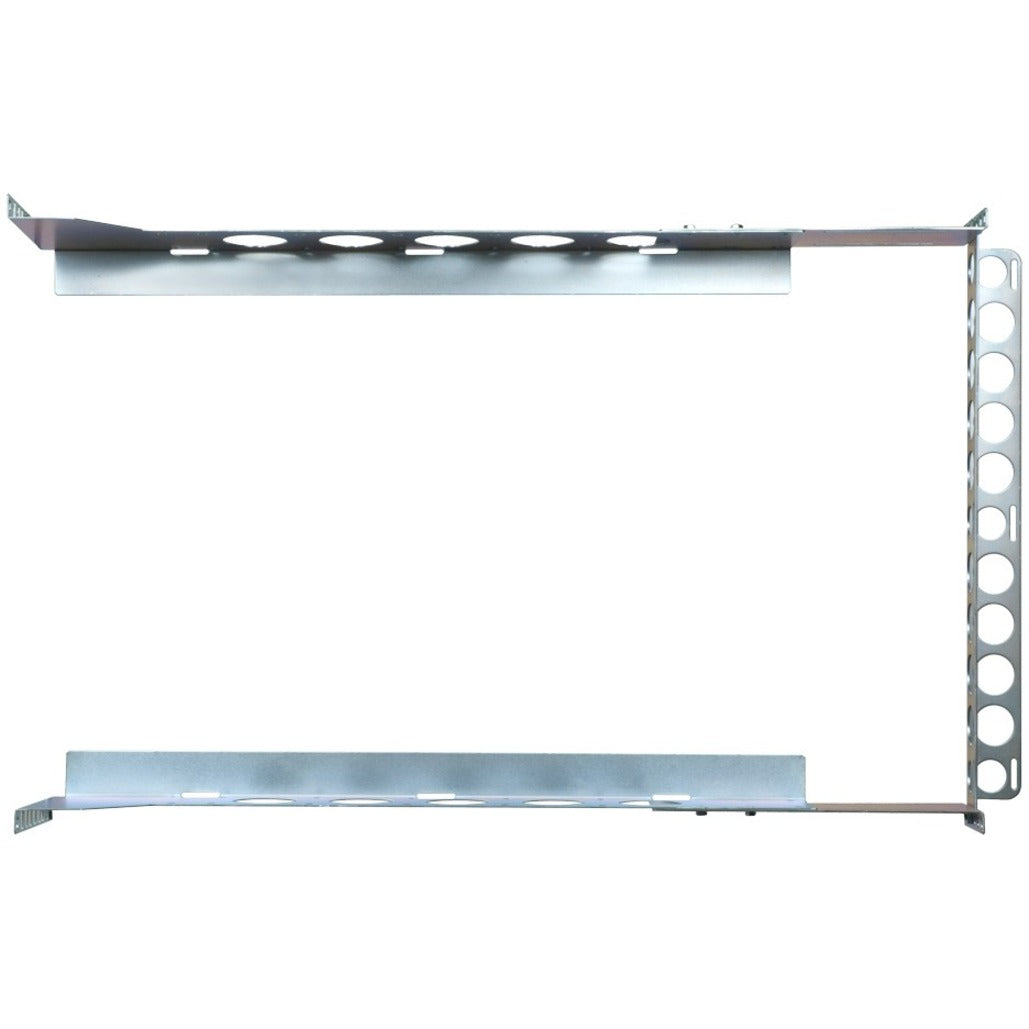

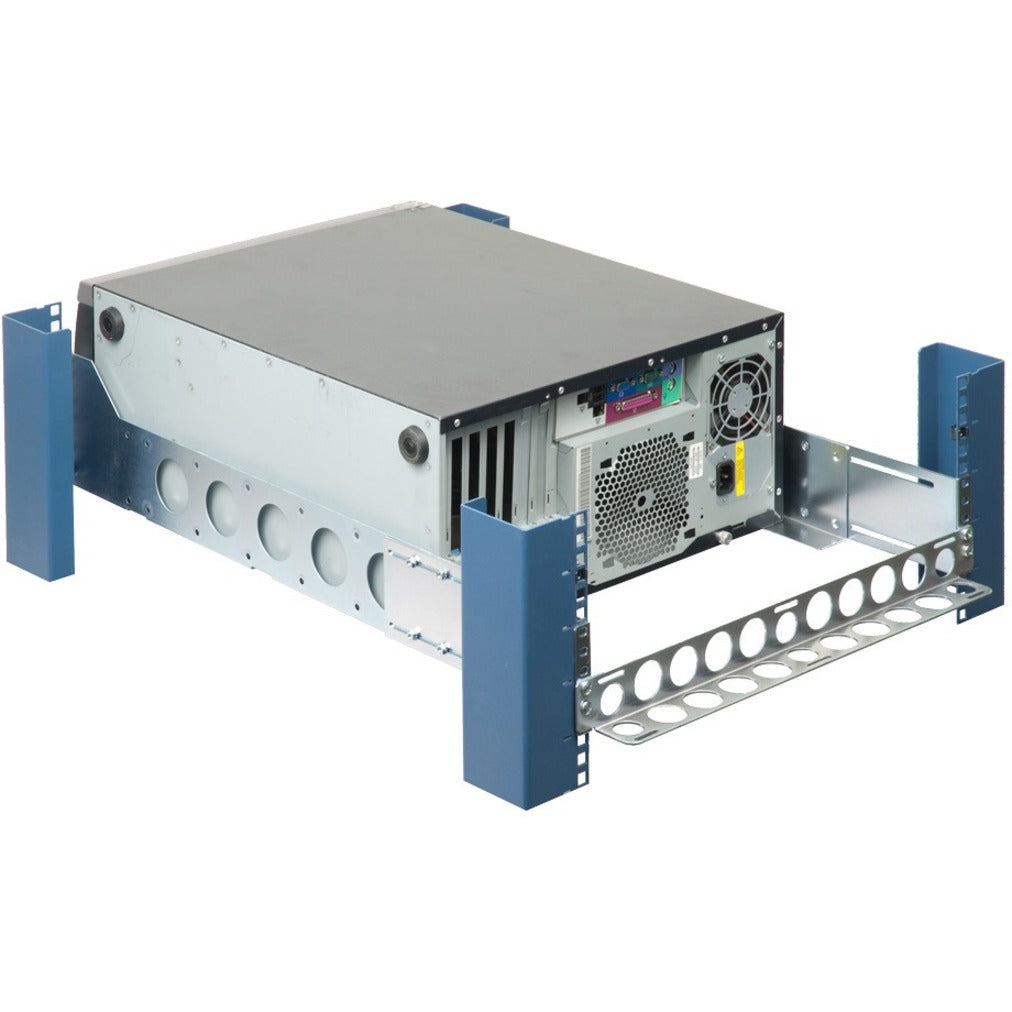

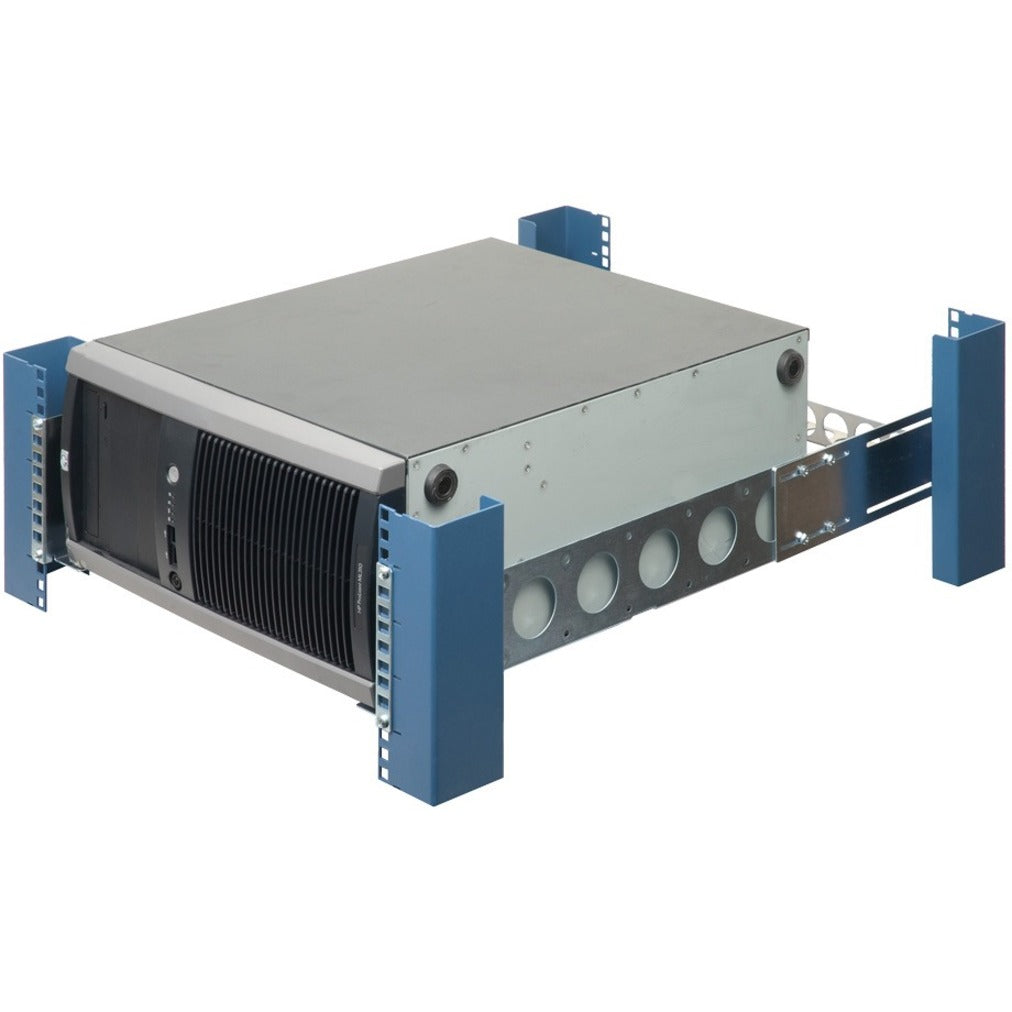

The Rack Solutions Universal Server Rack Rails come in either 1U 2U or 3U+ sizes with weight capacities of 45 75 and 200 pounds respectively. The universal rails are designed to replace OEM rails included with Apple HP IBM and Dell server racks providing a flexible solution for damaged server rack rails or OEM slide rails. The product is designed to support a variety of server racks and is compatible with setups requiring standard square rounded and threaded holes. To further its compatibility with various different devices and server racks the rail rack supports mounting depths between zero and 31.75 inches. The server rack rail ships with a variety of complementary items and hardware to make assembly installation and cable management easier. Hardware items include screws cage-nuts and nuts for all rack types. A cable management bar is also included to assist with routing and hook-and-loop strips come included to keep cords secure. Overall the all-purpose zinc plated fixed Universal Server Rack Rails can meet the needs of a variety of server installation solutions allowing data centers to replace their OEM rails with a high-quality reliable system.

• 3U Rack Mount Rails

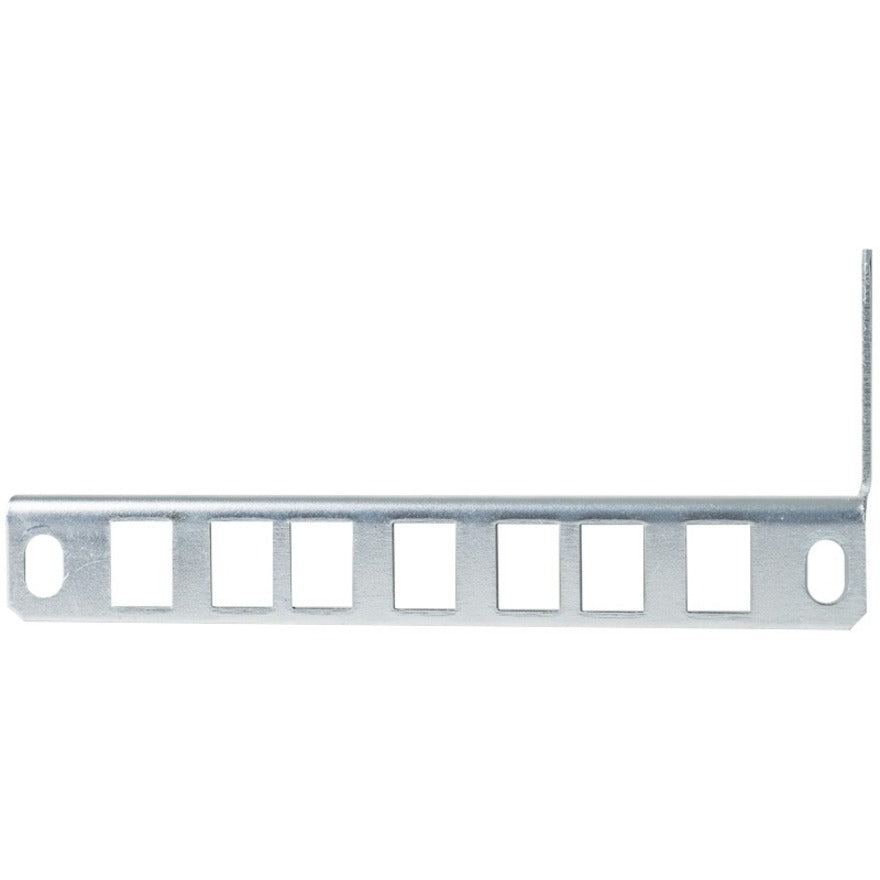

• Cabling Crossbar
• 4 Post Racks
• Screws
• Cage-nuts
• Nuts

• The Rack Rails support flange is 23 1/2" (597mm) long
• Rack Rails Minimum Equipment Width: 16 5/8" (422mm))
• Maximum Equipment Width: 17 5/8" (448mm)
• Construction: 0.090" (2mm) steel with a durable zinc plating
• Square Hole Racks: Industry standard 3/8" (10mm) square hole racks
• Round Hole Racks: All standard round (non-threaded) holes
• Threaded Racks: All standard threads including 10-32 12-24 and Metric M6
• Support both Center and Flush mount installations
• Velcro straps provided for securing cables
• Mounting depth range is 0" to 31 9/16" (802mm) deep
