Blanking Panels also called "filler panels" are used to control the airflow inside of server racks. Without blanking panels the hot exhaust air from the rear of the servers will recirculate through empty spaces in the server rack into the air intakes on the front of the servers. This reused hot air will significantly reduce the cooling efficiency of the system. Filler panels are the easiest and first step towards achieving your Power Usage Effectiveness (PUE) goals. Unlike many products on the market RackSolutions Filler Panels use an innovative stability flange design to prevent airflow from flexing the filler panel. This reduces noise and vibration when a high amount of air is pushed into the filler panel. Along with the increase in airflow efficiency RackSolutions filler panels give your rack a seamless and professional appearance. All our blanking panels are compatible with all EIA Standard 19" racks and cabinets.

All EIA Standard 19" Racks and Cabinets with Square Round and Threaded Holes:

• Dell
• HP
• Compaq
• IBM
• APC NetShelter
• APW
• Liebert
• CPI Chatsworth
• Rittal
• Blackbox

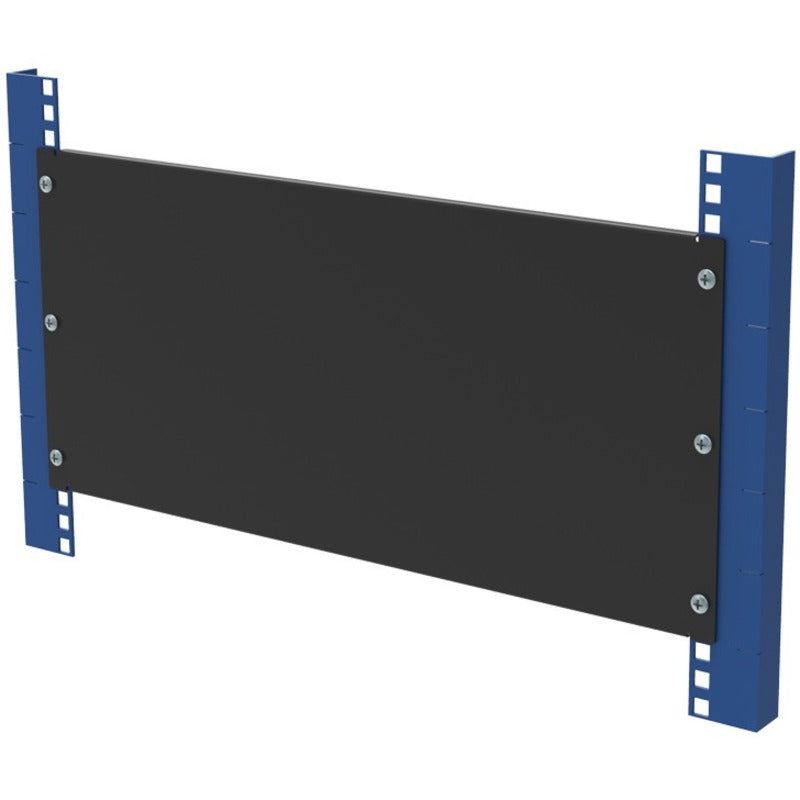

• 5U Filler Panel with Stability Flanges
• 8 x Screws for 10-32 Threaded Holed Racks Cabinets and Enclosures
• 8 x Screws for 12-24 Threaded Holed Racks Cabinets and Enclosures
• 8 x 12-24 Cage Nuts For Square Holed Racks Cabinets and Enclosures
• 8 x 12-24 Square Nuts For Non Threaded Holed Racks Cabinets and Enclosures

• Assembly Notes: Phillips head screwdriver required

Hole Type Compatibility :

• The industry standard 3/8" (10 mm) square hole racks
• All standard round (non-threaded) holes
• All standard threads including 10-32 12-24 and Metric M6
