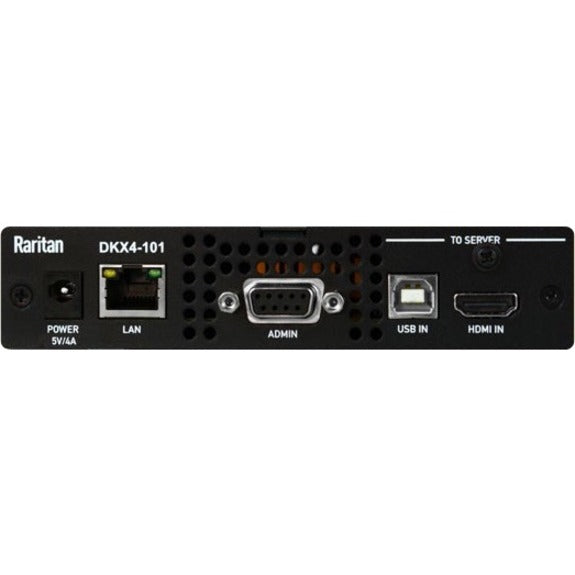

Dominion KX IV-101 - Raritan's fourth generation single-port KVM-over-IP switch Gateway provides a new level of Ultra HD performance for KVM-over-IP remote management. More powerful than any other KVM-over-IP switch it supports unblocked Java-free anytime / anywhere BIOS-level remote access of servers PCs and workstations. The KX IV connects to a single computer providing unblocked access to multiple users via laptop PC or Dominion User Station.

The KX IV-101 supports access to servers with 4K video resolution (3840x2160) up to 30 frames per second with 4:2:2 color. It also supports HD resolutions up to 1920x1080 and 1920x1200 at up to 60 frames per second with high quality 4:4:4 color. The KX IV has an all-digital architecture for ultra fast video performance and high video quality with virtual media transfers up to 3 times faster than the Dominion KX III. The KX IV has user-configurable bandwidth to operate across LAN WAN and Internet.

The KX IV supports many of the popular Dominion features such as: virtual media absolute mouse synchronization LDAP/Radius/AD authentication AES encryption support for up to 8 simultaneous sessions and much more. Users can use the Dominion KVM Clients for Java-free access as well as the Dominion KX User Stations for high performance access in labs studios and control rooms.

Dominion KX IV is incredibly scalable. A large number of KX IV switches can be integrated through the Dominion User Station and/or Raritan's CommandCenter Secure Gateway with convenient single sign-on. The powerful Dominion User Station works standalone or with CommandCenter.

Raritan DKX4-101 Features

• Single-port unblocked BIOS-level KVM-over-IP Access for up to 8 users
• 4K Ultra HD (@30Hz) HDMI Video Performance
• 1080p @ 60 frames-per-second & High Quality 4:4:4 Color
• HDMI input with cables available for VGA DVI DisplayPort Mini-DP & USB-C
• 3X Faster USB Virtual Media
• HDMI Audio support
• Java-Free Anytime/Anywhere Access
• Input / Output Device Control
  • Power on/off PC/Server
• Access from Laptop PC and optional User Station
• New Platform / User Interface
• Pass-through Local Port for local control
• CommandCenter & User Station integration

Raritan DKX4-101 Highlights

The Broadest Array of Video Support in a Single-Port IP KVM

The most compatible IP KVMs in the market the Dominion KX4-101 Over-IP Gateways support:

• Dominion KX IV-101 Ultra High Performance 1-Port 4K KVM-over-IP Switch
• 1 x Locking Power Cord
• 16 x ft HDMI Cable
• 1 x 6ft USB-B to USB-A cable
• 1 x "L" Mounting Bracket Kit
