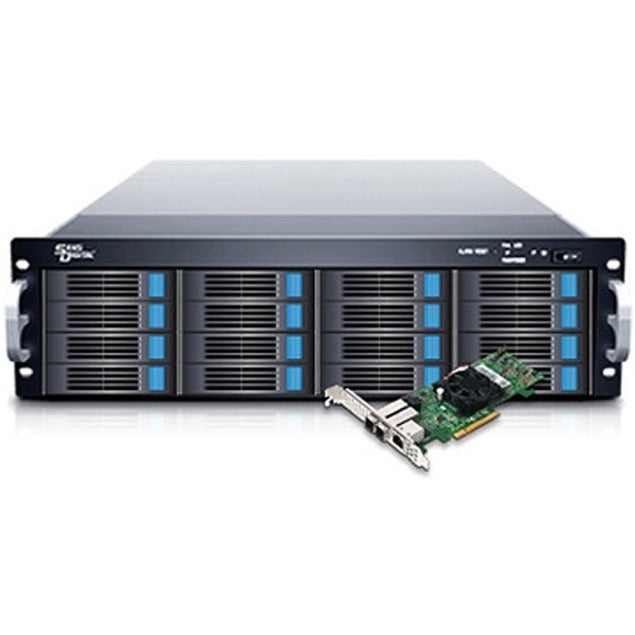

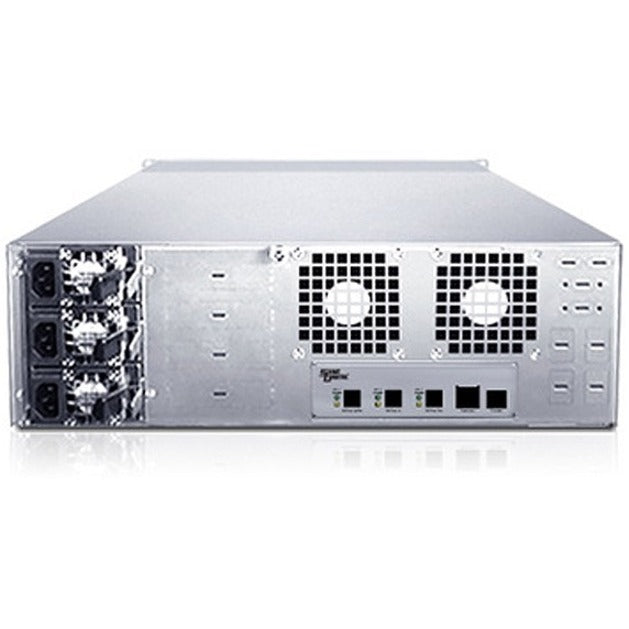

Sans Digital EliteSTOR ES316X12HP - 3U 16 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller

Sans Digital EliteSTOR ES316X12HP - 3U 16 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller

SKU: 1027389996      MFR: Sans Digital

GTIN: 739410735560

Product Description

Sans Digital EliteSTOR ES316X12HP - 3U 16 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller - 16 x HDD Supported - 64 TB Supported HDD Capacity - 16 x SSD Supported - 12Gb/s SAS Serial ATA/600 Controller - RAID Supported 0 1 3 5 6 10 30 50 60 100 1E JBOD 0 00 1 1E 10 10+0 3 3+0 5 50 ... - 16 x Total Bays - 16 x 3.5" Bay - 3U - Rack-mountable

Manufacturer : Sans Digital

Manufacturer Part No : KT-ES316X12HP

Product Details

Product TypeDAS Storage System
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of Power Supplies Installed3
Redundant Power SupplyYes
RAID SupportedYes
Number of Total Expansion Bays16
Number of 3.5" Bays16
Maximum Power Supply Wattage650 W
Total Hard Drive Capacity Supported64 TB
Number of Hard Drives Supported16
Number of Solid State Drive Supported16
Country of OriginTaiwan
Height5.3"
Width19"
Depth23"
Rack Height3U
Brand NameSans Digital
Form FactorRack-mountable
ManufacturerSans Digital
Product ModelES316X12HP
Product NameEliteSTOR ES316X12HP DAS Array
Product LineEliteSTOR
RAID Levels0 1 3 5 6 10 30 50 60 100 1E JBOD
Controller Type12Gb/s SAS
Manufacturer Part NumberKT-ES316X12HP
Certifications & Standards
  • UL
  • FCC
  • CE
Manufacturer Website Addresshttp://www.sansdigital.com
Marketing InformationThe EliteSTOR ES316X12HP is a complete 3U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology the ES316X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES316X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology the ES316X12HP supports up to 16 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card and the ES316X12HP is capable of delivering over in 3000MB/s read and write performance doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0 1 3 5 6 10 50 60 support with enterprises features and performances. System status information is provided by the LED including hard drives power supply and cooling fan status as well as RAID controller's event log and e-mail notification system. All necessary hardware comes standard including RAID controller card mini-SAS cable hard drives tray modules and built-in mounting rail. The ES316X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up Server 2003 or up) Apple (OS X 10.4 or up) Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported.
Platform SupportedPC
Power SourcePower Supply
Package Contents
  • EliteSTOR ES316X12HP DAS Array
  • 12G PCIe 3.0 RAID Controller
  • Bracket
  • HD Mini-SAS Cable
  • Cooling Fan
  • Tray Modules
  • Build-in Mounting Rail
Limited Warranty3 Year
Host InterfaceMini-SAS
Weight (Approximate)46 lb
Product FamilyEliteSTOR
