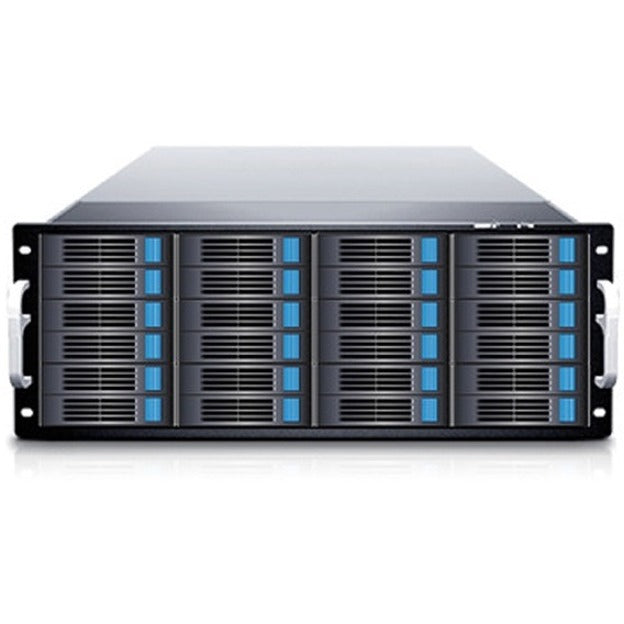

Sans Digital EliteSTOR ES424X12 - 4U 24 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount

Sans Digital EliteSTOR ES424X12 - 4U 24 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount

SKU: 1027389993      MFR: Sans Digital

GTIN: 739410735577

Product Description

Sans Digital EliteSTOR ES424X12 - 4U 24 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount - 24 x HDD Supported - 96 TB Supported HDD Capacity - 24 x SSD Supported - 12Gb/s SAS Serial ATA/600 Controller - RAID Supported JBOD - 24 x Total Bays - 24 x 3.5" Bay - 4U - Rack-mountable

Manufacturer : Sans Digital

Manufacturer Part No : KT-ES424X12

Product Details

Product TypeDAS Storage System
Environmentally FriendlyYes
Environmental CertificationRoHS
Number of Power Supplies Installed3
Redundant Power SupplyYes
RAID SupportedYes
Number of Total Expansion Bays24
Number of 3.5" Bays24
Maximum Power Supply Wattage650 W
Total Hard Drive Capacity Supported96 TB
Number of Hard Drives Supported24
Number of Solid State Drive Supported24
Country of OriginTaiwan
Height7"
Width19"
Depth23"
Certifications & Standards
  • CE
  • FCC
  • UL
Rack Height4U
Brand NameSans Digital
Form FactorRack-mountable
ManufacturerSans Digital
Product ModelES424X12
Product NameEliteSTOR ES424X12 DAS Array
Product LineEliteSTOR
RAID LevelsJBOD
Controller Type12Gb/s SAS
Manufacturer Part NumberKT-ES424X12
Manufacturer Website Addresshttp://www.sansdigital.com
Marketing InformationThe EliteSTOR ES424X12 is a 4U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology the ES424X12 provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES424X12 supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology the ES424X12 supports up to 24 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or LSI MegaRAID 12G RAID controller the ES424X12 is capable of delivering over in 3000MB/s in read and write performance doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED including hard drives power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable hard drives tray modules and built-in mounting rail. The ES424X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
Power SourcePower Supply
Package Contents
  • EliteSTOR ES424X12 DAS Array
  • HD Mini-SAS Cable
  • Cooling Fan

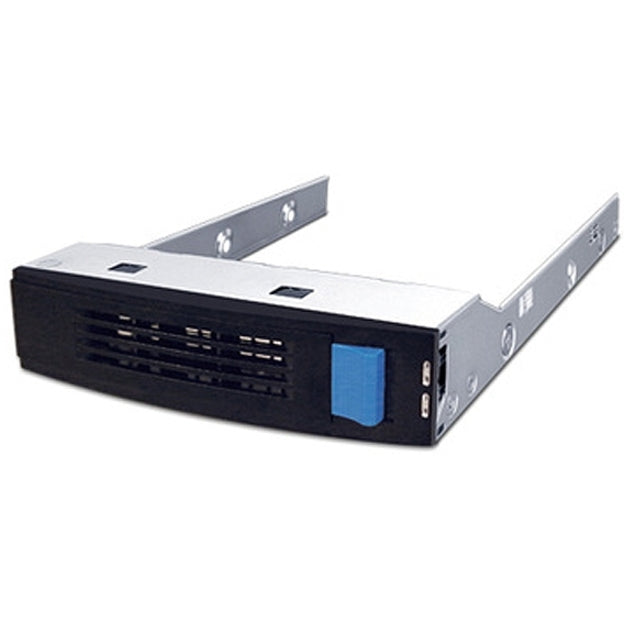

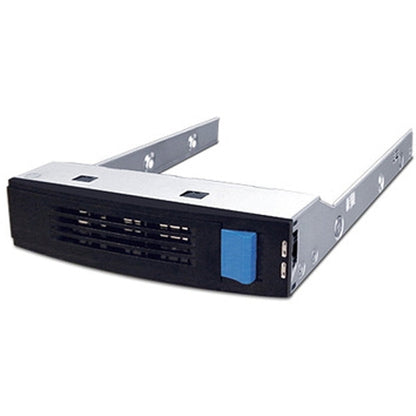

  • Tray Modules
  • Build-in Mounting Rail
Limited Warranty3 Year
Host InterfaceMini-SAS
Weight (Approximate)54 lb
Product FamilyEliteSTOR
