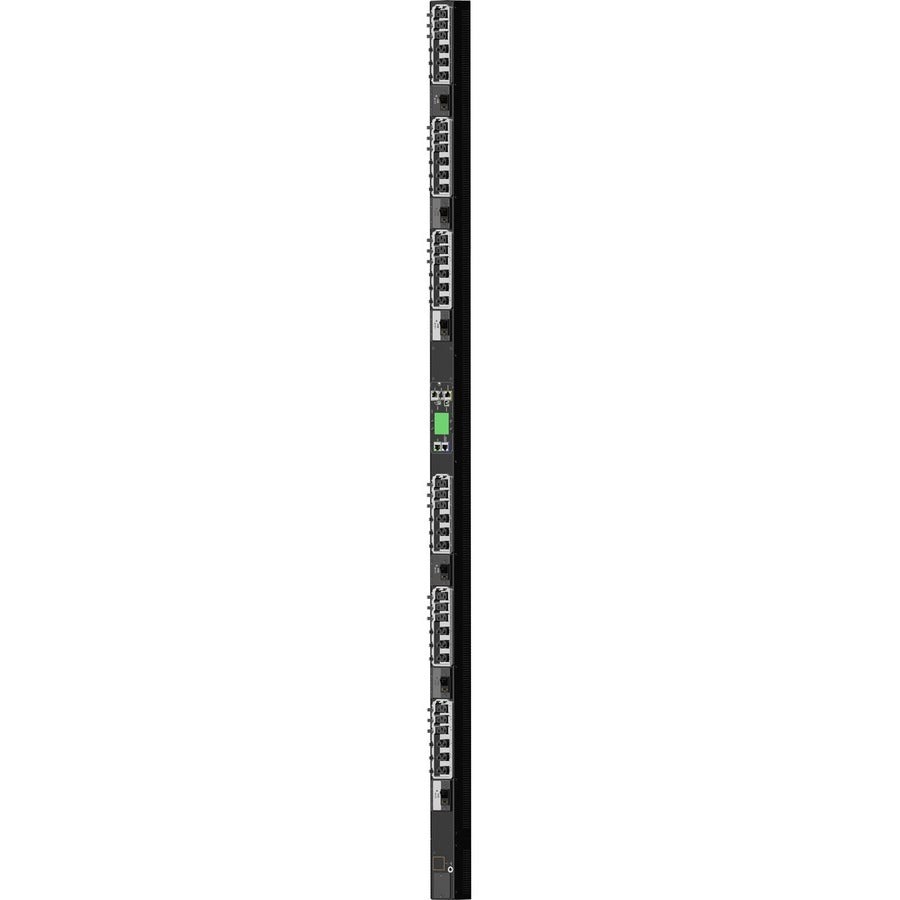

Server Technology Smart PDU - 17.3kW C3S36RL-GPJE2MT2
Server Technology Smart PDU - 17.3kW C3S36RL-GPJE2MT2
SKU: 1068476372 MFR: Server Technology Inc
Product Description
Server Technology Smart PDU - 17.3kW C3S36RL-GPJE2MT2 - Monitored - IEC 60309 3P+N+G 6Hr 30A - 18 x IEC 60320 C13 18 x CX - 230 V AC 400 V AC 415 V AC 380 V AC - Network (RJ-45) - 0U - Rack-mountable Cabinet-mountable
Manufacturer : Server Technology Inc
Manufacturer Part No : C3S36RL-GPJE2MT2
Features
- HDOT CX: Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
- NETWORK MONITORING: Gain access to valuable data through connections including HTTP(S) SSH Telnet SNMP (S)FTP SMTP Syslog LDAP(S) RS-232 serial and more.
- MULTI PRIMARY LINKING: Multi-Linking Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
- COLOR MATRIX LCD DISPLAY: Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
- HOT-SWAP CONTROLLER: 100% Field Replaceable while hot no risk of short circuits finger safe replacement in the unlikely event of an outage.
- RAMLOCK LOCKING OUTLETS: Receptacles have high retention and are compatible with P-Lock type power cords.
- ENVIRONMENTAL MONITORING: PRO3X units support a maximum of 12 daisy-chained Raritan DX2 sensor packages. Receive SNMP-based alerts and e-mail notifications
- PER-INLET POWER SENSING: Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage active power apparent power power factor and energy.
- BRANCH CIRCUIT PROTECTION: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
- HIGH TEMPERATURE RATING: This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
Product Details
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c
- IPv4
- IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
- SMTP
- Syslog
- GET
- SET
- Traps
This all new Server Technology PRO3X Smart PDU features RamLock HDOT outlets running with a Raritan Xerus Technology state of the art network interface module. Server Technology's unique RamLock a self-locking elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring with support for Raritan plug and play sensor types like temperature humidity water dry contact closure airflow air pressure differential and more.
- Smart PDU - 17.3kW C3S36RL-GPJE2MT2
- Button Mounts
Out Of Stock
Update
Server Technology Smart PDU - 17.3kW C3S36RL-GPJE2MT2 - Monitored - IEC 60309 3P+N+G 6Hr 30A - 18 x IEC 60320 C13 18 x CX - 230 V AC 400 V AC 415 V AC 380 V AC - Network (RJ-45) - 0U - Rack-mountable Cabinet-mountable
Manufacturer : Server Technology Inc
Manufacturer Part No : C3S36RL-GPJE2MT2
Features
- HDOT CX: Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
- NETWORK MONITORING: Gain access to valuable data through connections including HTTP(S) SSH Telnet SNMP (S)FTP SMTP Syslog LDAP(S) RS-232 serial and more.
- MULTI PRIMARY LINKING: Multi-Linking Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
- COLOR MATRIX LCD DISPLAY: Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
- HOT-SWAP CONTROLLER: 100% Field Replaceable while hot no risk of short circuits finger safe replacement in the unlikely event of an outage.
- RAMLOCK LOCKING OUTLETS: Receptacles have high retention and are compatible with P-Lock type power cords.
- ENVIRONMENTAL MONITORING: PRO3X units support a maximum of 12 daisy-chained Raritan DX2 sensor packages. Receive SNMP-based alerts and e-mail notifications
- PER-INLET POWER SENSING: Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage active power apparent power power factor and energy.
- BRANCH CIRCUIT PROTECTION: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
- HIGH TEMPERATURE RATING: This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
Product Details
- HTTP/HTTPS
- TLSv1.2
- SSHv2
- Telnet
- SNMPv2c
- IPv4
- IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
- SMTP
- Syslog
- GET
- SET
- Traps
This all new Server Technology PRO3X Smart PDU features RamLock HDOT outlets running with a Raritan Xerus Technology state of the art network interface module. Server Technology's unique RamLock a self-locking elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring with support for Raritan plug and play sensor types like temperature humidity water dry contact closure airflow air pressure differential and more.
- Smart PDU - 17.3kW C3S36RL-GPJE2MT2
- Button Mounts
