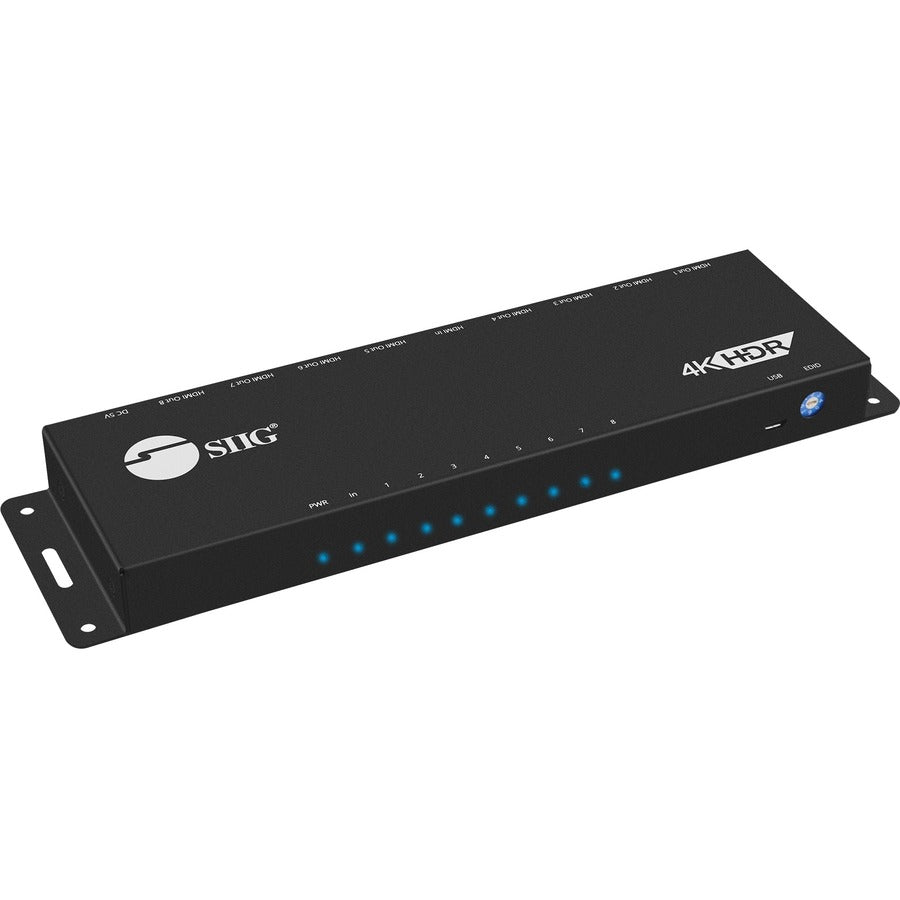

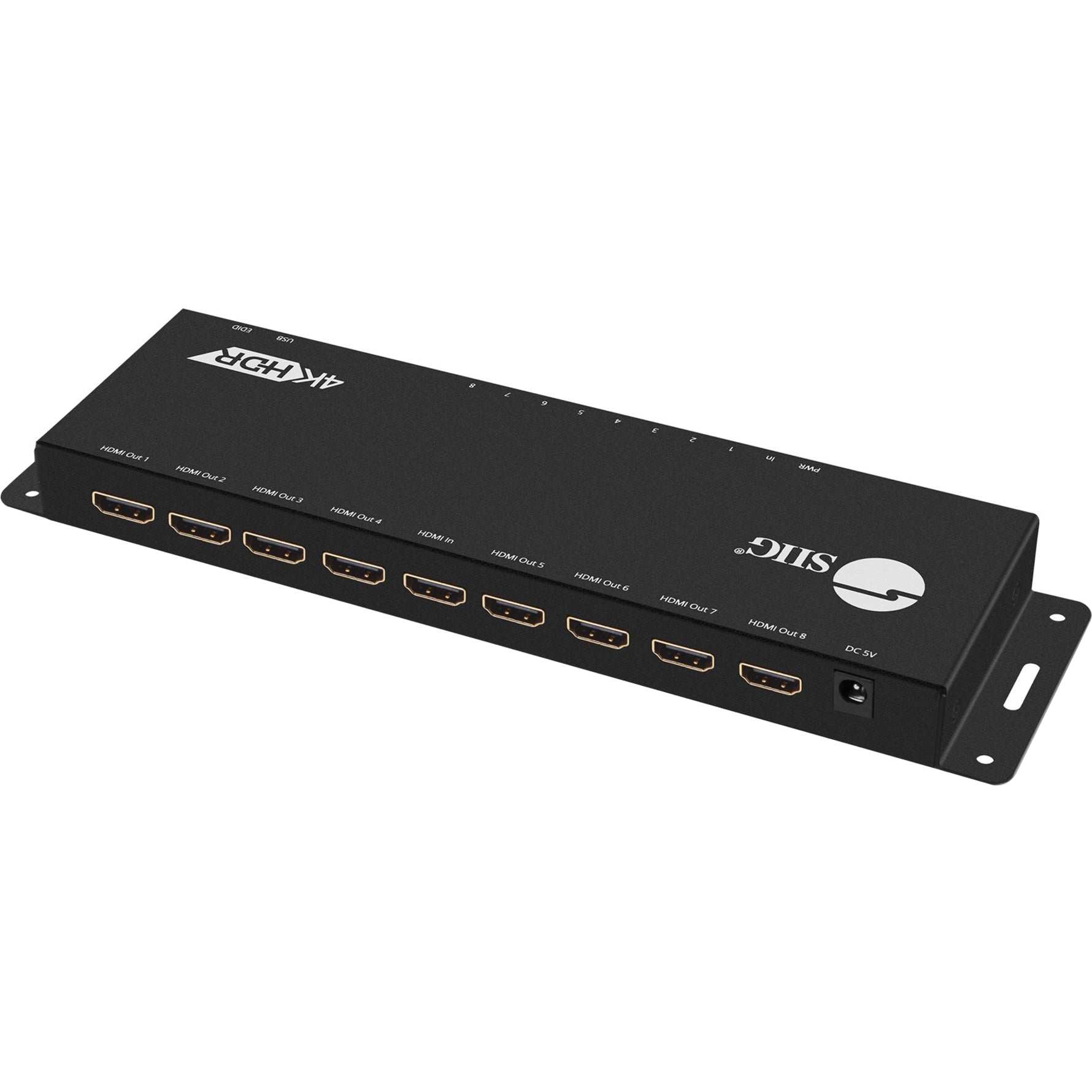

SIIG 1x8 HDMI 2.0 HDR Splitter Distribution Amplifier with EDID Management - 4Kx2K 60Hz

SIIG 1x8 HDMI 2.0 HDR Splitter Distribution Amplifier with EDID Management - 4Kx2K 60Hz

SKU: 1048835453      MFR: SIIG Inc

GTIN: 662774041292

Product Description

SIIG 1x8 HDMI 2.0 HDR Splitter Distribution Amplifier with EDID Management - 4Kx2K 60Hz - Cascade up to 10 Layers - TAA Compliant

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H23D11-S1

Features

  • This Audio/Video Distribution Amplifier split audio and video signals so that they can run from a single source towards multiple systems
  • 3840 × 2160 resolution for high-quality video delivery
  • HDMI interface allows you to connect to a variety of HD devices for the ultimate true high-definition video
  • HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort

Product Details

Product TypeAudio/Video Distribution Amplifier
Number of HDMI Inputs1
Number of HDMI Outputs8
TAA CompliantYes
Brand NameSIIG
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution3840 × 2160
Maximum Operating Distance49.21 ft
HDMI InYes
HDMI OutYes
Maximum Video Bandwidth600 MHz
Country of OriginTaiwan
Height0.9"
Width2.7"
Length9.1"
ManufacturerSIIG Inc
Product ModelCE-H23D11-S1
Product Name1x8 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
Input Voltage5 V DC
Manufacturer Part NumberCE-H23D11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information

Distributes HDMI video/audio signals from one HDMI source to 8 HDMI displays while maintaining signal quality

  • Distributes HDMI video and audio from a single source to up to 8 HDMI displays simultaneously while maintaining signal quality
  • Compliant with HDMI 2.0a HDCP 2.2/1.4 with 18Gbps bandwidth
  • Supports up to 4K@60Hz (YUV 4:4:4 8-bit) HDR 4K@60Hz (YUV 4:2:0 10-bit) 3D xvYCC x.v.Color & Deep Color
  • Supports Dolby Digital DTS-HD and Dolby TrueHD audio

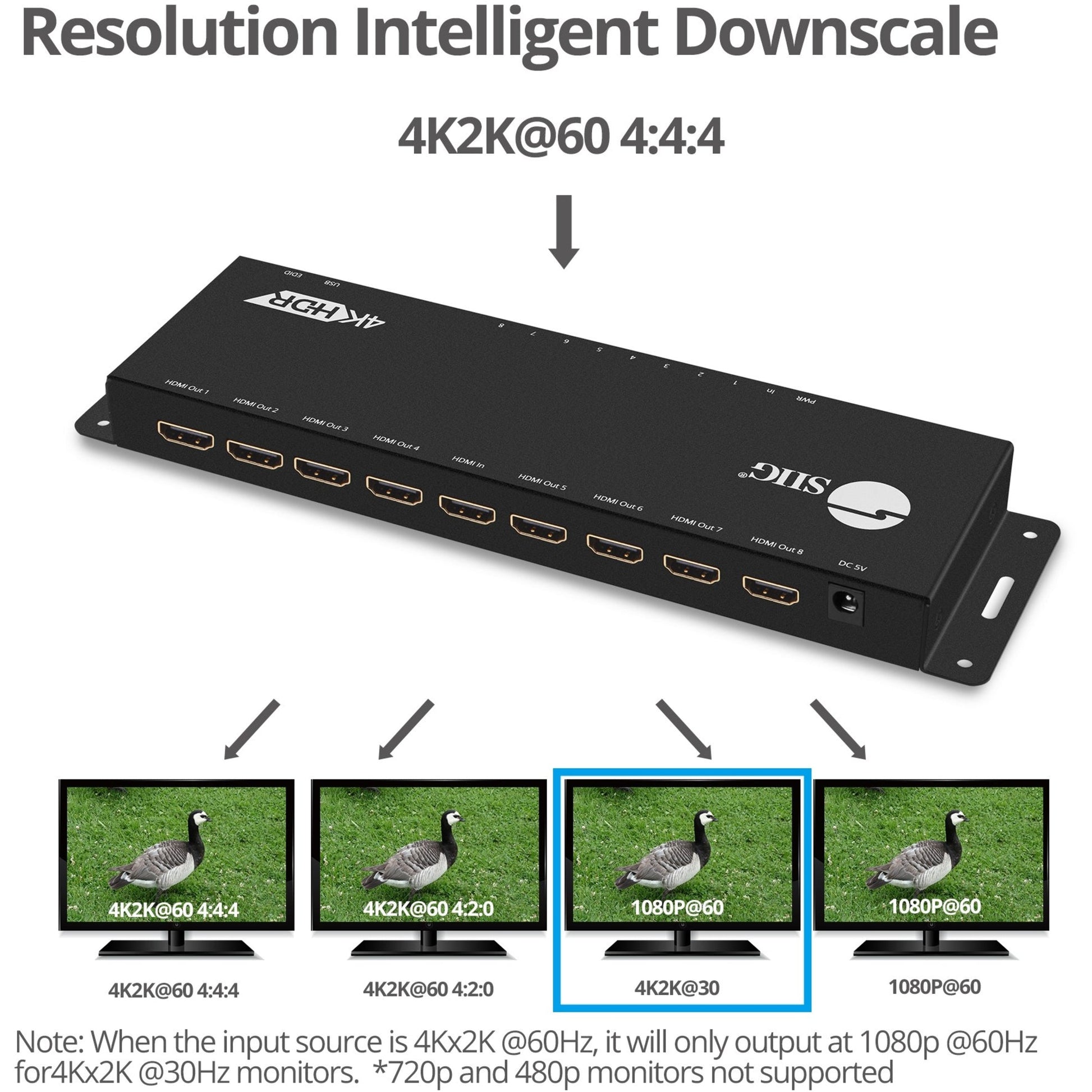

  • Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
  • Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
  • EDID and firmware management feature for maximum compatibility now and into the future offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
  • Low heat generation with sturdy metal housing provides excellent heat dissipation durability and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
  • Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Package Contents
  • 1x8 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
  • Power Adapter
  • Screw Kit
  • User Reference Guide
MaterialAluminum
Limited Warranty3 Year
Weight (Approximate)1.85 lb
