SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management

SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management

SKU: 1064793201      MFR: SIIG Inc

GTIN: 662774044163

Product Description

SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management - Multi-level Cascading - Supports 180° HDMI image rotation

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H26E11-S1

Features

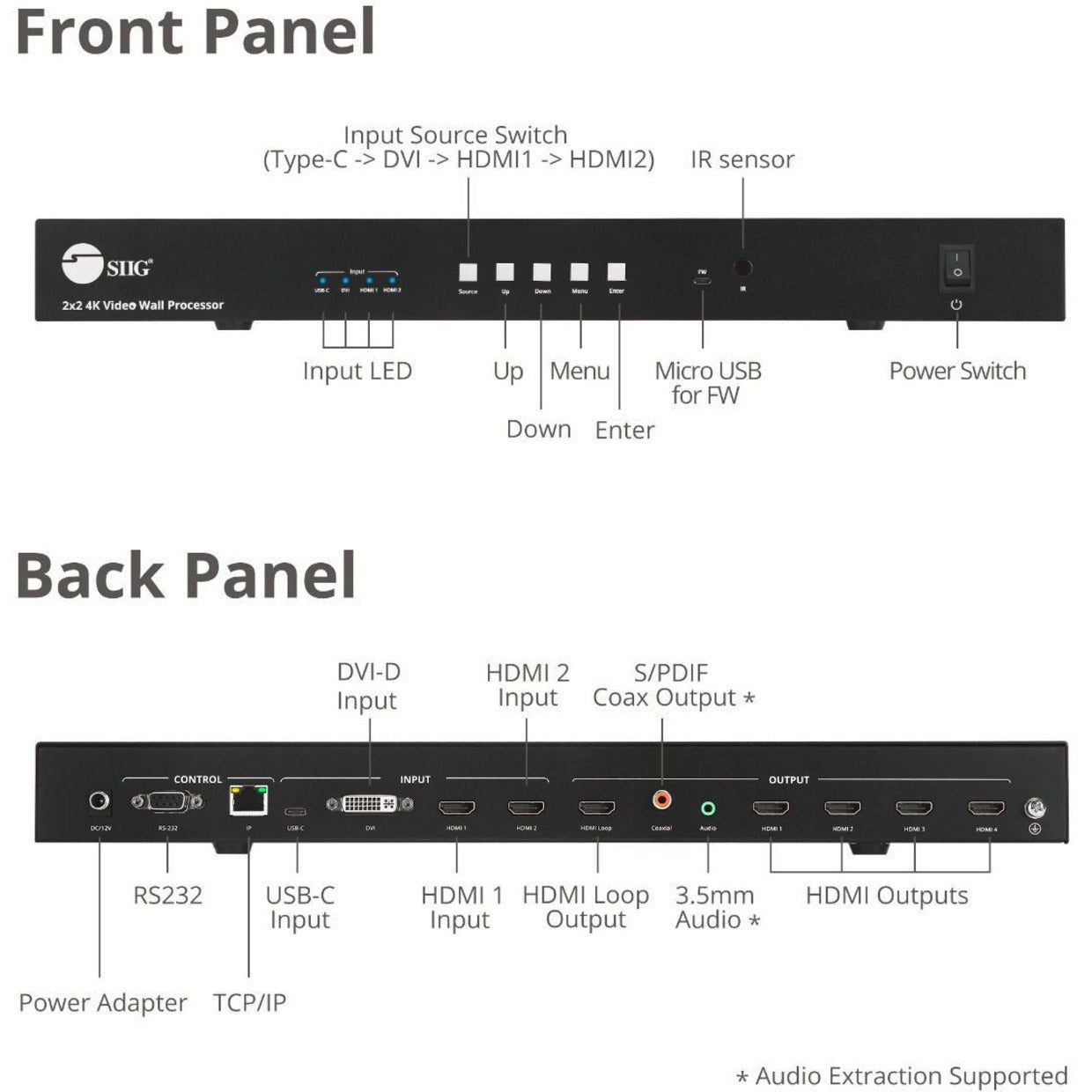

  • Allows you to select and switch between 4 source devices (2 HDMI 1 USB-C and 1 DVI-D) to display on 4 HDMI displays
  • Create a 2x2 Video Wall using any source device to four displays
  • Supports multi-level cascading to create 2x2 1x2 2x1 1x3 3x1 1x4 4x1 and 10x10 (max) video walls
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p copy the EDID of the HDMI loop out or any output port
  • Supports resolution up to 4K@30Hz for USB-C and HDMI inputs 1920x1200 for DVI-D input
  • SupportsSource device switching via front panel button remote control RS232 command and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
  • Mounting brackets included for various installation options

Product Details

Product TypeVideo Wall Controller
Environmentally FriendlyYes
Environmental CertificationRoHS
EthernetYes
USBYes
HDMIYes
DVIYes
Number of HDMI Inputs2
Number of HDMI Outputs5
SerialYes
Number of DVI Ports1
Video Wall CompatibleYes
Country of OriginChina
Height1.7"
Width17.2"
Depth7.5"
ColorBlack
Brand NameSIIG
ManufacturerSIIG Inc
Product ModelCE-H26E11-S1
Product Name2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage12 V DC
Manufacturer Part NumberCE-H26E11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information2x2 4K Video Wall Processor with USB-C / DVI / HDMI Input
  • Allows you to select and switch between 4 source devices (2 HDMI 1 USB-C and 1 DVI-D) to display on 4 HDMI displays
  • Create a 2x2 Video Wall using any source device to four displays
  • Supports multi-level cascading to create 2x2 1x2 2x1 1x3 3x1 1x4 4x1 and 10x10 (max) video walls
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p copy the EDID of the HDMI loop out or any output port
  • Supports resolution up to 4K@30Hz for USB-C and HDMI inputs 1920x1200 for DVI-D input
  • SupportsSource device switching via front panel button remote control RS232 command and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
  • Mounting brackets included for various installation options
Package Contents
  • 2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs
  • DC 12V/2A output power adapter
  • Remote control
  • Mounting bracket kit (6x screws 2x mounting ears)
  • Driver CD
  • USB cable
  • User manual
Limited Warranty2 Year
Weight (Approximate)5.51 lb
View full details
$1,159.99 USD
$1,159.99
Sale Sold out

In Stock - 2 (Available by Mon, Dec 09 - Fri, Dec 13)


Update


Shipping calculated at checkout.

SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management - Multi-level Cascading - Supports 180° HDMI image rotation

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H26E11-S1

Features

  • Allows you to select and switch between 4 source devices (2 HDMI 1 USB-C and 1 DVI-D) to display on 4 HDMI displays
  • Create a 2x2 Video Wall using any source device to four displays
  • Supports multi-level cascading to create 2x2 1x2 2x1 1x3 3x1 1x4 4x1 and 10x10 (max) video walls
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p copy the EDID of the HDMI loop out or any output port
  • Supports resolution up to 4K@30Hz for USB-C and HDMI inputs 1920x1200 for DVI-D input
  • SupportsSource device switching via front panel button remote control RS232 command and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
  • Mounting brackets included for various installation options

Product Details

Product TypeVideo Wall Controller
Environmentally FriendlyYes
Environmental CertificationRoHS
EthernetYes
USBYes
HDMIYes
DVIYes
Number of HDMI Inputs2
Number of HDMI Outputs5
SerialYes
Number of DVI Ports1
Video Wall CompatibleYes
Country of OriginChina
Height1.7"
Width17.2"
Depth7.5"
ColorBlack
Brand NameSIIG
ManufacturerSIIG Inc
Product ModelCE-H26E11-S1
Product Name2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs
Input Voltage120 V AC
Input Voltage230 V AC
Input Voltage12 V DC
Manufacturer Part NumberCE-H26E11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information2x2 4K Video Wall Processor with USB-C / DVI / HDMI Input
  • Allows you to select and switch between 4 source devices (2 HDMI 1 USB-C and 1 DVI-D) to display on 4 HDMI displays
  • Create a 2x2 Video Wall using any source device to four displays
  • Supports multi-level cascading to create 2x2 1x2 2x1 1x3 3x1 1x4 4x1 and 10x10 (max) video walls
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p copy the EDID of the HDMI loop out or any output port
  • Supports resolution up to 4K@30Hz for USB-C and HDMI inputs 1920x1200 for DVI-D input
  • SupportsSource device switching via front panel button remote control RS232 command and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AV equipment
  • Mounting brackets included for various installation options
Package Contents
  • 2x2 4K Video Wall Processor with USB-C/DVI/HDMI Inputs
  • DC 12V/2A output power adapter
  • Remote control
  • Mounting bracket kit (6x screws 2x mounting ears)
  • Driver CD
  • USB cable
  • User manual
Limited Warranty2 Year
Weight (Approximate)5.51 lb
