SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management - Multi-level Cascading - Supports 180° HDMI image rotation

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H26F11-S1

Features

• Allows you to select and switch between 4 source devices (1 HDMI 1 DisplayPort 1 USB-C and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
• Create a 3x3 Video Wall using any source device to 9 displays
• Supports multi-level cascading to create 3x4 4x5 5x6 and 10x10 (max) video walls
• Compliant with HDCP 2.2/1.4 specification

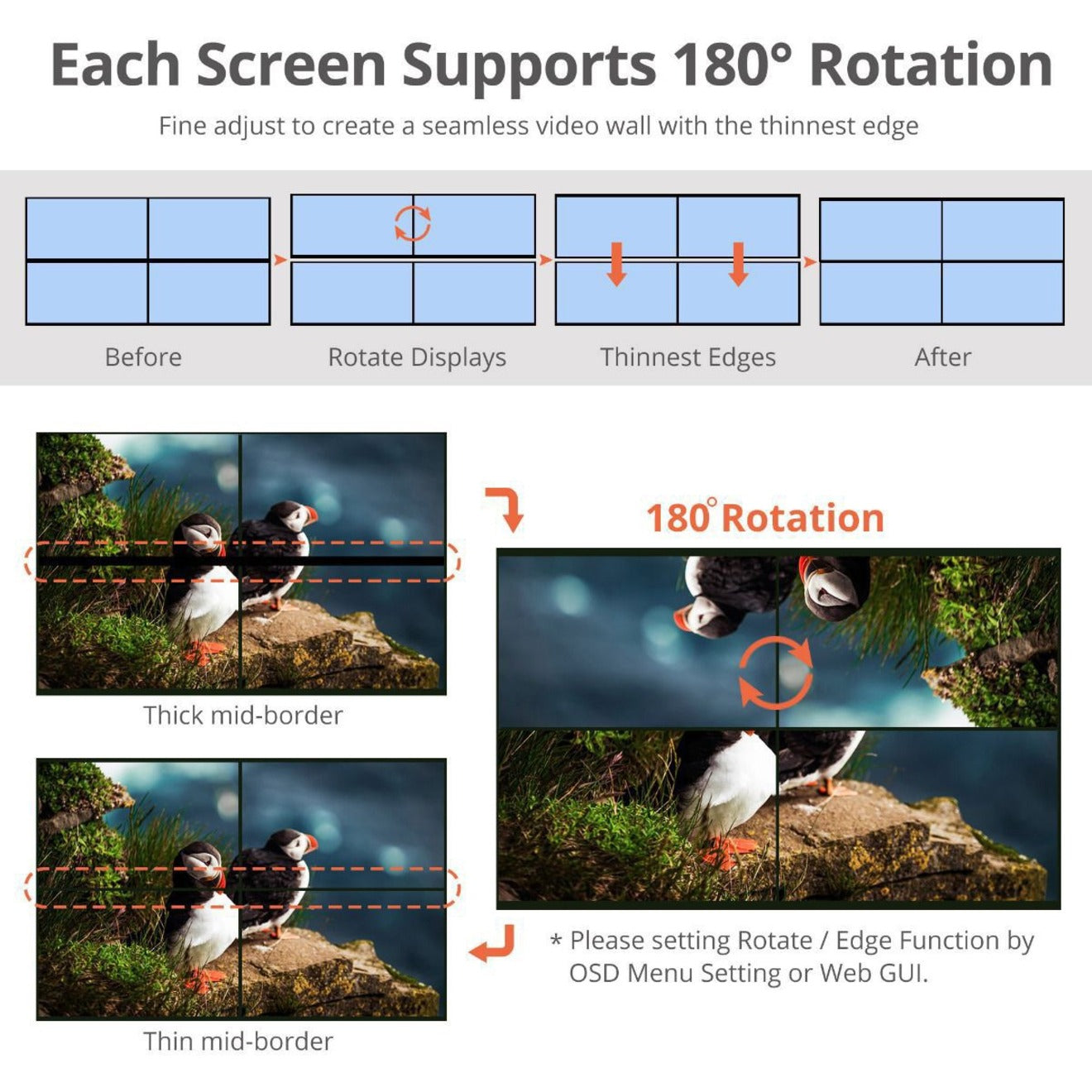

• Supports 180° HDMI image rotation
• Supports EDID management: Two default EDID: 4K30Hz & 1080p
• Supports resolution up to 4K@30Hz for USB-C DisplayPort and HDMI inputs 1080p for the VGA input
• OSD allows more than 10 splicing modes video wall setup by single click
• Supports monitor edge adjustment
• Supports source device switching via front panel button remote control RS232 command and TCP/IP control
• USB port allows firmware upgrades when needed
• Supports SPDIF and analog audio extraction to connect external speakers or AVRs
• Mounting brackets included for various installation options
