• SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant

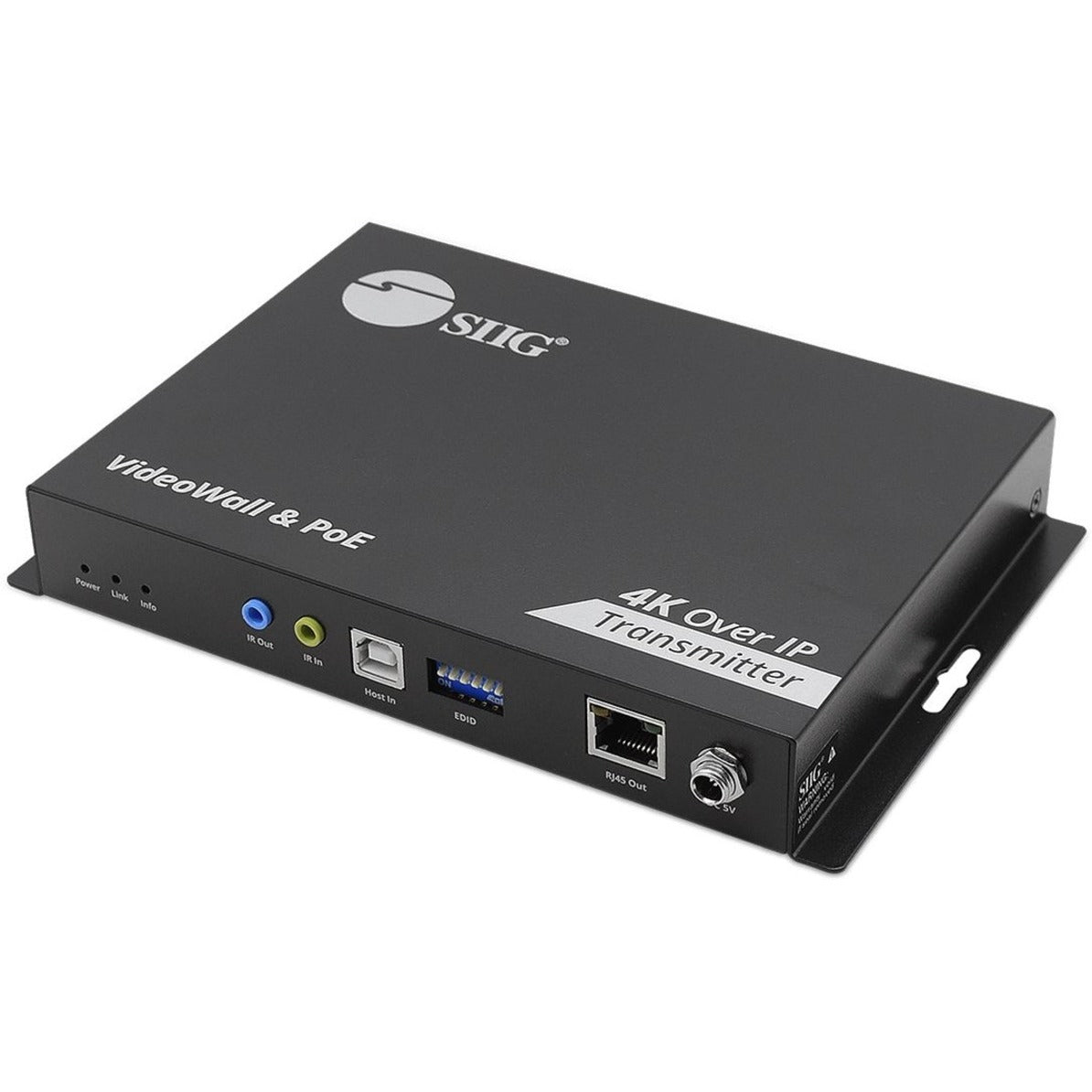

    SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant
  • SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant
  • SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant
1 3

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant

SKU: 1076563320      MFR: SIIG Inc

GTIN: 662774045566

Product Description

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant - Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 transmitter units - 5x5 VideoWall - KVM - USB - HDCP 2.2 - HDR 10 - 3.5mm Stereo - S/PDIF - Bi-directional IR - RS-232 Control - ESD Protection - TAA Compliant - 3 years warranty - Kit (CE-H28A11-S1) - Decoder (RX) (CE-H27G11-S1) - Controller (CE-

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H27F11-S1

Product Details

Product TypeVideo Extender Transmitter
Maximum Operating Distance393.70 ft
Number of Network (RJ-45) Ports1
Number of USB Ports2
Number of HDMI Inputs1
Media Type SupportedTwisted Pair
Number of Input Devices Supported1
TAA CompliantYes
Power over Ethernet (PoE)Yes
Connectivity TechnologyWired
Brand NameSIIG
Form FactorWall Mountable
Application/UsageShopping Center
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS 2
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 7
USBYes
Network (RJ-45)Yes
HDMI InYes
Transmitter Height1.09"
Transmitter Width5.19"
Transmitter Depth6.81"
Transmitter Weight (Approximate)1.41 lb
Product ColorBlack
Supported Video Modes1080p
Country of OriginTaiwan
ManufacturerSIIG Inc
Product Name4K 60Hz HDMI over IP Matrix- Transmitter
Manufacturer Part NumberCE-H27F11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing InformationOverview

HDMI over IP Matrix - Encoder (TX) transmits 4K@60Hz HDMI signal up to 394Ft (120m) over a single Cat6/7 cable PoE One to One One to Many Multi-casting Video Wall KVM 18Gbps HDCP 2.2 HDR 10 7.1ch Bi-directional IR RS-232 Control TAA Compliant Kit (CE-H28A11-S1) Decoder (RX) (CE-H27G11-S1)

Features

Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

Highly Scalable
Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65536 total units limited to 1023 transmitter units the additional Encoder (TX)unit (CE-H27F11-S1) Decoder (RX)unit (part#- CE-H27G11-S1) and Kit (part#- CE-H28A11-S1) are sold separately

PoE Technology
Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units making it easy to construct and improve system robustness. No additional power adapter required

Long Distance
This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch

4K UHD Resolution
Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2 4:4:4 HDR 10 Deep Color and 3D. Image rotation supports clockwise 90° 180° and 270° in video wall only

IR Extension/RS-232 Control
Bi-directional IR pass back function and RS-232 control source devices from remote RX locations allowing you to select and switch between HDMI source devices

High Performance
Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound

Extract Audio
Audio extraction via digital S/PDIF (Toslink) 3.5mm stereo audio or HDMI output ports. Digital S/PDIF audio format: PCM 2.0 Dolby 5.1 and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1 Dolby 5.1/7.1 and DTS 5.1/7.1

Multiple Connectivity Ports
Comes with one HDMI video input port one USB-B 2.0 port for Host- WebCam one USB-B 2.0 port for Host-KM and flash drive one Gigabit Ethernet network port one 3.5mm IR emitter port one 3.5mm IR receiver port one 3.5mm microphone jack one 3.5mm audio jack one S/PDIF output port one DIP switch for video channel selection one RS-232 port for control one DC power jack (5V/2A)
Package Contents
  • 4K 60Hz HDMI Over IP Matrix- Transmitter
  • 1x 3.5mm IR Emitter Extension Cable
  • 1x DC Power Adapter 5V/2A
  • 1x Mounting Kit
  • 1x User Reference Guide
        Limited Warranty3 Year
        Frequency50 Hz
        Frequency60 Hz
        View full details
        $569.99 USD
        $569.99
        Sale Sold out

        In Stock - 13 (Available by Sun, Dec 08 - Thu, Dec 12)


        Update


        Shipping calculated at checkout.

        SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant - Transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable - DIP Switch - AV Over IP - PoE - One-to-One / One-to-Many / N to M Multi-casting - Up to 1023 transmitter units - 5x5 VideoWall - KVM - USB - HDCP 2.2 - HDR 10 - 3.5mm Stereo - S/PDIF - Bi-directional IR - RS-232 Control - ESD Protection - TAA Compliant - 3 years warranty - Kit (CE-H28A11-S1) - Decoder (RX) (CE-H27G11-S1) - Controller (CE-

        Manufacturer : SIIG Inc

        Manufacturer Part No : CE-H27F11-S1

        Product Details

        Product TypeVideo Extender Transmitter
        Maximum Operating Distance393.70 ft
        Number of Network (RJ-45) Ports1
        Number of USB Ports2
        Number of HDMI Inputs1
        Media Type SupportedTwisted Pair
        Number of Input Devices Supported1
        TAA CompliantYes
        Power over Ethernet (PoE)Yes
        Connectivity TechnologyWired
        Brand NameSIIG
        Form FactorWall Mountable
        Application/UsageShopping Center
        Graphics Modes4K
        Environmentally FriendlyYes
        Environmental CertificationRoHS 2
        Maximum Video Resolution4096 x 2160
        Twisted Pair Cable StandardCategory 7
        USBYes
        Network (RJ-45)Yes
        HDMI InYes
        Transmitter Height1.09"
        Transmitter Width5.19"
        Transmitter Depth6.81"
        Transmitter Weight (Approximate)1.41 lb
        Product ColorBlack
        Supported Video Modes1080p
        Country of OriginTaiwan
        ManufacturerSIIG Inc
        Product Name4K 60Hz HDMI over IP Matrix- Transmitter
        Manufacturer Part NumberCE-H27F11-S1
        Manufacturer Website Addresshttp://www.siig.com
        Marketing InformationOverview

        HDMI over IP Matrix - Encoder (TX) transmits 4K@60Hz HDMI signal up to 394Ft (120m) over a single Cat6/7 cable PoE One to One One to Many Multi-casting Video Wall KVM 18Gbps HDCP 2.2 HDR 10 7.1ch Bi-directional IR RS-232 Control TAA Compliant Kit (CE-H28A11-S1) Decoder (RX) (CE-H27G11-S1)

        Features

        Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

        Highly Scalable
        Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65536 total units limited to 1023 transmitter units the additional Encoder (TX)unit (CE-H27F11-S1) Decoder (RX)unit (part#- CE-H27G11-S1) and Kit (part#- CE-H28A11-S1) are sold separately

        PoE Technology
        Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units making it easy to construct and improve system robustness. No additional power adapter required

        Long Distance
        This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch

        4K UHD Resolution
        Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2 4:4:4 HDR 10 Deep Color and 3D. Image rotation supports clockwise 90° 180° and 270° in video wall only

        IR Extension/RS-232 Control
        Bi-directional IR pass back function and RS-232 control source devices from remote RX locations allowing you to select and switch between HDMI source devices

        High Performance
        Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound

        Extract Audio
        Audio extraction via digital S/PDIF (Toslink) 3.5mm stereo audio or HDMI output ports. Digital S/PDIF audio format: PCM 2.0 Dolby 5.1 and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1 Dolby 5.1/7.1 and DTS 5.1/7.1

        Multiple Connectivity Ports
        Comes with one HDMI video input port one USB-B 2.0 port for Host- WebCam one USB-B 2.0 port for Host-KM and flash drive one Gigabit Ethernet network port one 3.5mm IR emitter port one 3.5mm IR receiver port one 3.5mm microphone jack one 3.5mm audio jack one S/PDIF output port one DIP switch for video channel selection one RS-232 port for control one DC power jack (5V/2A)
        Package Contents
        • 4K 60Hz HDMI Over IP Matrix- Transmitter
        • 1x 3.5mm IR Emitter Extension Cable
        • 1x DC Power Adapter 5V/2A
        • 1x Mounting Kit
        • 1x User Reference Guide
              Limited Warranty3 Year
              Frequency50 Hz
              Frequency60 Hz
