SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR

SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR

SKU: 1073986945      MFR: SIIG Inc

GTIN: 662774045382

Product Description

SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR - HDMI 4K60Hz 4:4:4 8-bit / 4K60Hz HDR 4:2:0 10-bit Extender - Extends HDMI signals up to 230ft (70m) over a single Cat6/7 cable with a local HDMI output for monitoring the extended display - 18Gbps video bandwidth - Nearly zero latency - 3.5mm audio extraction - 21:9 wide monitor 3440x1440 resolution support - Auto Downscaling 4K60Hz to 1080p 60Hz - IR / EDID passthrough - ESD/Lightning/Surge protection - Metal housing - 2 years warran

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H27D11-S1

Features

  • Extends HDMI signals from DVD players game consoles or HDMI-equipped computers up to 230ft via Cat6/7 networking cable ideal for home theater conference room or other audio/video applications that require remote location setup
  • Delivers video content up to UHD 4K@60Hz with zero latency up to 230ft/70m through a Cat6/7 network cable support HDR 10
  • The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to another display device
  • Supports PCM / DTS-HD/ Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver
  • Supports EDID passthrough and auto downscaling
  • Lightning Protection Surge Protection ESD Protection provides durability and minimizes EMI/RFI noise interference.
  • Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
  • Plug-n-Play installation no software installation or hardware setup is required

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance230 ft
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs2
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported2
Number of Input Devices Supported1

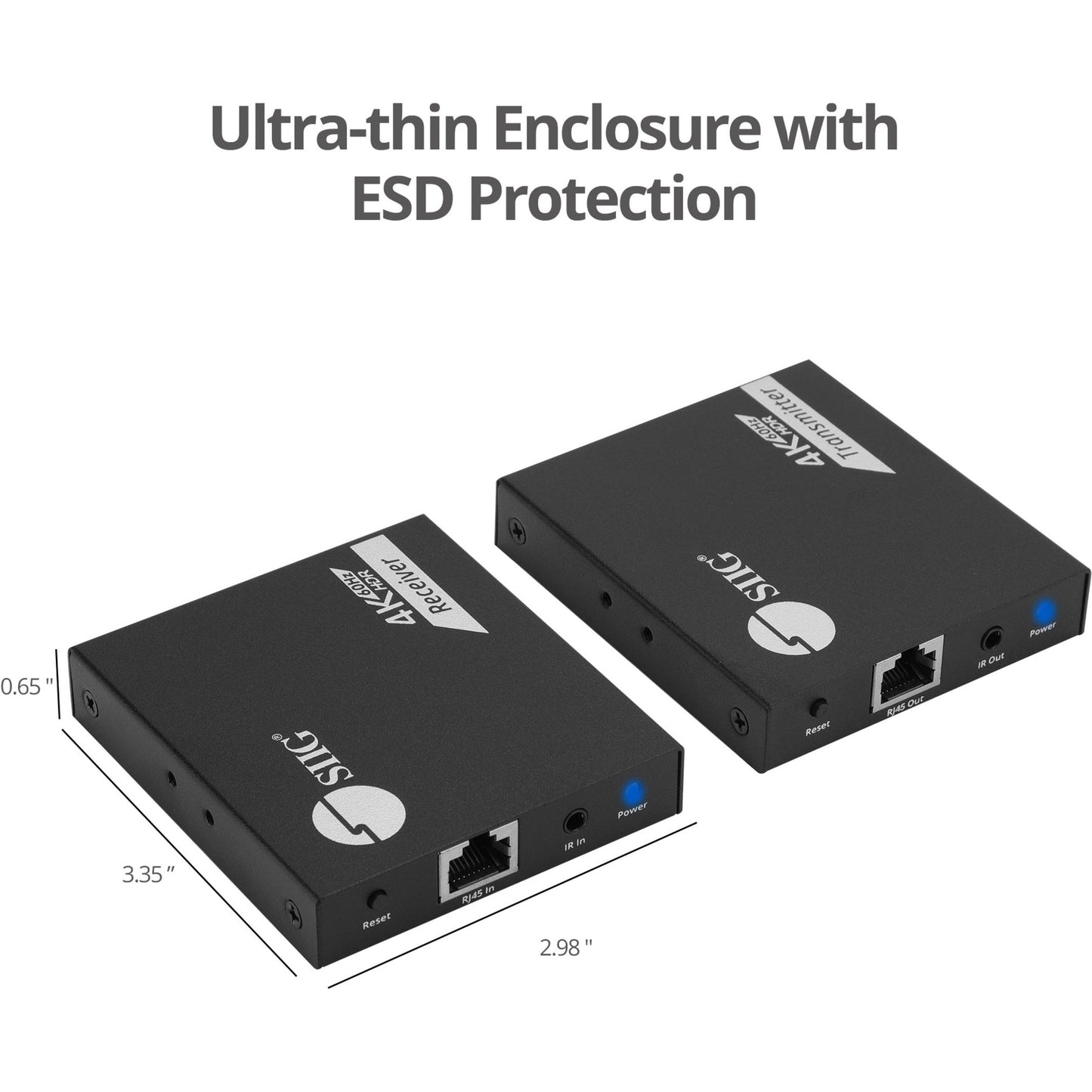

Transmitter Height0.65"
Transmitter Width3.35"
Transmitter Depth2.97"
Receiver Height0.65"
Receiver Width3.35"
Receiver Depth2.97"
Transmitter Weight (Approximate)4.80 oz
Receiver Weight (Approximate)4.80 oz
Product ColorBlack
Country of OriginChina
Connectivity TechnologyWired
Brand NameSIIG
Frequency50 Hz
Frequency60 Hz
ManufacturerSIIG Inc
Product Name4K 60Hz HDMI Over Cat6 Extender with Loopout & IR
Manufacturer Part NumberCE-H27D11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information

Multiple Connectivity Ports
Comes with one HDMI video input port one HDMI video loop-out port one HDMI video output port two RJ45 network ports one 3.5mm IR emitter port one 3.5mm IR receiver port one 3.5mm stereo audio port two reset buttons two DC power jacks (5V/1A)

Applications

  • Lecture hall
  • Educational facilities
  • Multimedia education
  • Home theater
  • Restaurant
  • Shopping center
  • Digital signage
  • Meeting room
  • Trade show
  • Library
  • Show room
  • Church
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x Power Adapter
  • IR Blaster extension cable
  • IR Receiver extension cable
  • 4 x Mounting Ears
  • 8 x Screws
  • User Manual
Limited Warranty2 Year
