Extends HDMI 1.4 audio and video signals RS232 control IR control and Power over Cable (PoC) up to 60 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

• Extends HDMI 1.4 audio and video signal from your HDMI source to a remote HDMI display up to 196ft (60m) at Full HD 1080p up to 114ft (35m) at UHD 4K (3840x2160) @30Hz through a single premium quality CAT5e/6 cable
  Note: The transmission distance will vary depending on cable quality 100% copper and IEEE-568B wiring standard recommended
• Delivers crystal clear picture quality with resolution up to 3840x2160@30Hz (YUV 4:4:4 8-bit and YUV 4:2:0 10-bit)
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter connected to either unit
• Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
• Slim profile design easily adopts into versatile application environment wall mountable housing for easy and varied installation requirements

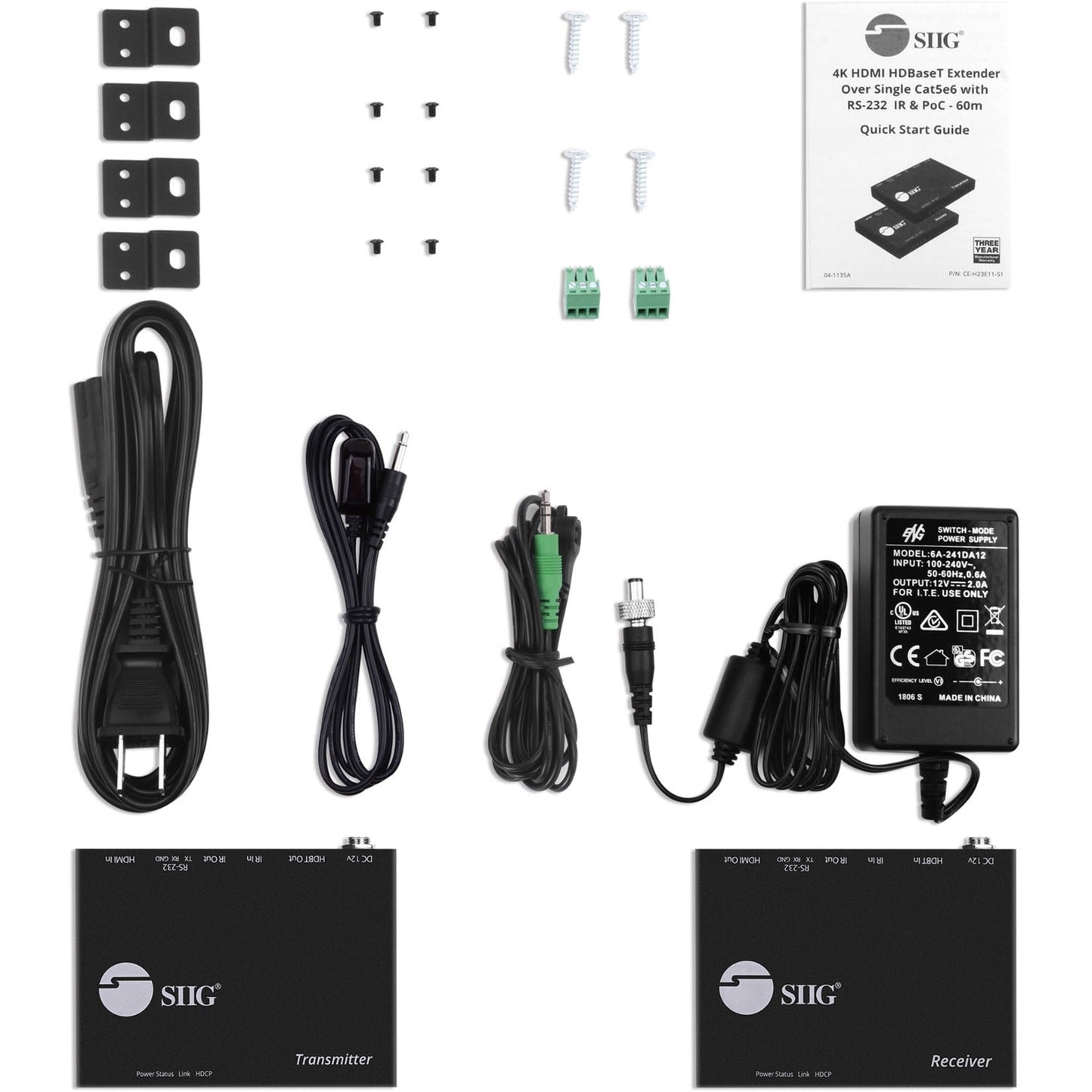

• 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232 IR & PoC - 60m
• Power Adapter
• IR Blaster Extension Cable & IR Receiver Extension Cable
• 4 x Mounting Ears
• 8 x Screw kit
• 2 x Terminal Block kit
• User Reference Guide
