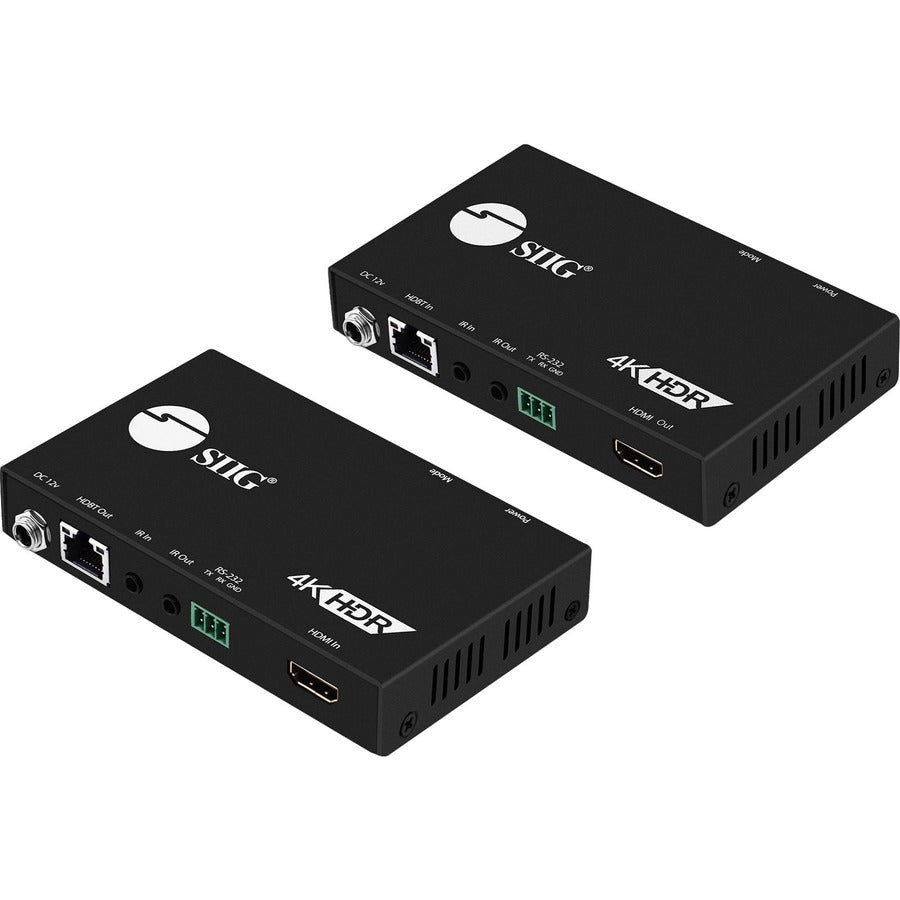

Extends HDMI audio and video signals RS232 control IR control up to 60 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology

• Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 196ft (60m) away at Full HD 1080p or 114ft (35m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
• Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter
• Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
• High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
• Slim profile design easily adopts into versatile application environment wall mountable housing for easy and varied installation requirements

More from the Manufacturer

• 1 x Transmitter (TX)
• 1 x Receiver (RX)
• 1 x Power Adapter with Power Cord
• IR Blaster Extension Cable & IR Receiver Extension Cable
• 4 x Mounting Ears & Screw Kit (8+4)
• 2 x RS232 Terminal Block Connectors
• User Reference Guide
