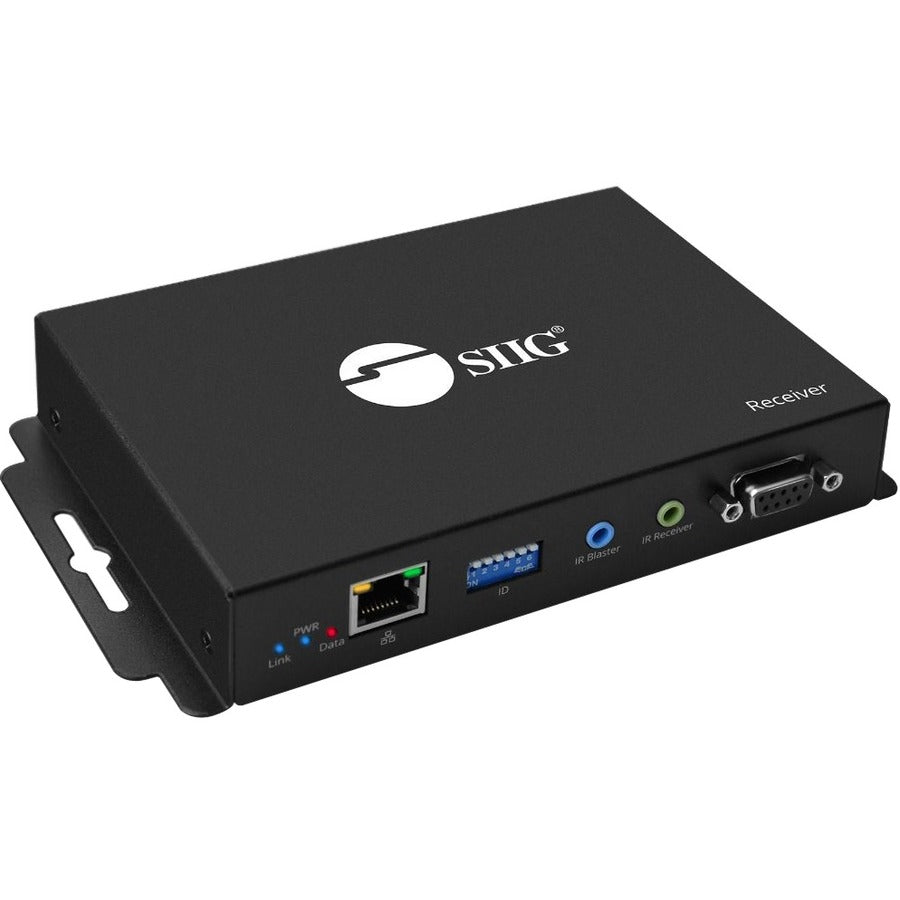

SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver

SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver

SKU: 1060289333      MFR: SIIG Inc

GTIN: 662774042886

Product Description

SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver - Supports Matrix Switching & Video Wall Function with the Controller (CE-H25411-S1) TAA Compliant

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H25311-S1

Product Details

Product TypeVideo Extender Receiver
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Twisted Pair Cable StandardCategory 5e
Maximum Operating Distance394 ft
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Receiver Height1.13"
Receiver Width4"
Receiver Depth7.09"
Receiver Weight (Approximate)1.07 lb
TAA CompliantYes
Country of OriginTaiwan
ColorBlack
Connectivity TechnologyWired
Brand NameSIIG
ManufacturerSIIG Inc
Product NameHDMI 2.0 Over IP Matrix and Video Wall - Receiver
Manufacturer Part NumberCE-H25311-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information

Extends HDMI audio/video signals through IP networks up to 394ft (120m) matrix and video wall configurable on the fly

  • HDMI 2.0a and HDCP 2.2 compliant
  • Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit HDMI output up to 4Kx2K@30Hz
  • Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
  • Supports 4K signals including High Dynamic Range (HDR) PoE Bi-directional IR path and Video Wall. Due to the video compression some distortion may occur in HDR mode
  • Supports One-to-one One-to-many and Many-to-many broadcasting architecture
  • Easy DIP switch matching for multi-casting group configuration
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Full Duplex RS-232 control up to 115200 bps
  • Supports 180° and 270° clockwise image rotation
  • Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Transmitter part # CE-H25211-S1 sold separately and HDMI 2.0 Video Wall Over IP Multicast System - Controller part # CE-H25411-S1 sold separately
Package Contents
  • HDMI 2.0 Over IP Matrix and Video Wall - Receiver
  • Power Adapter 5V/2A
  • 1 x IR Receiver Cable
  • 2 x Screw Kit
  • Insert Card
  • User Manual
Limited Warranty3 Year
