• HDMI HDBASET 4X4 4K MATRIX KIT
    HDMI HDBASET 4X4 4K MATRIX KIT
1 1

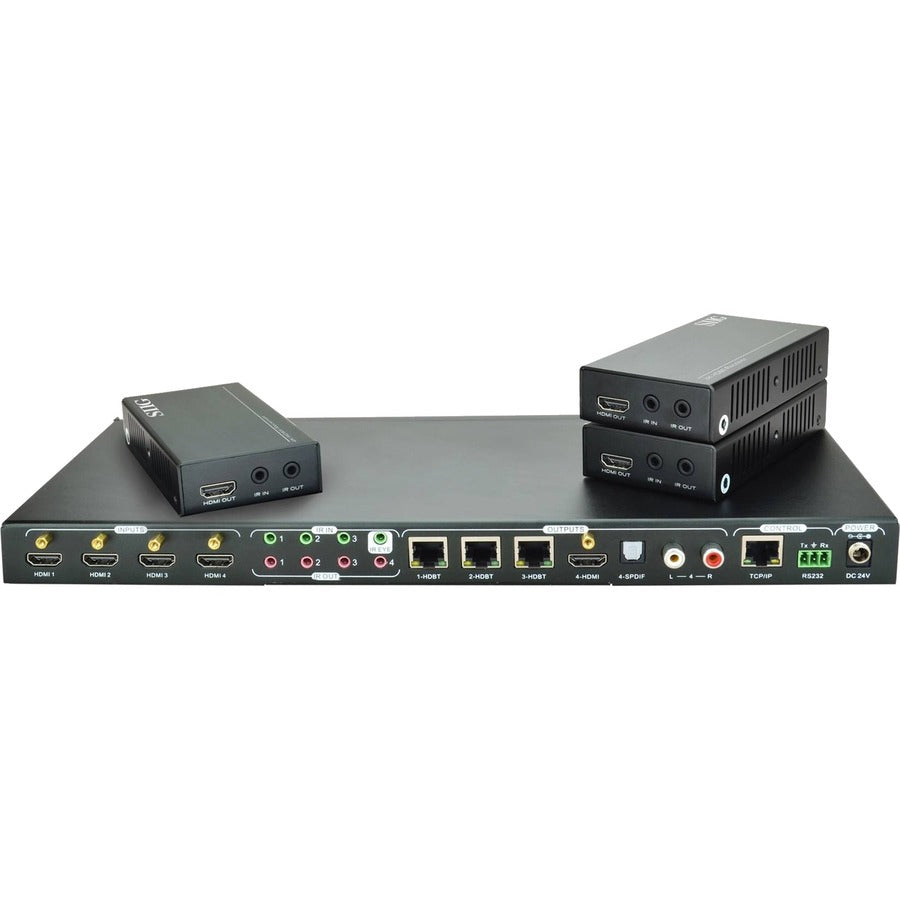

SIIG HDMI HDBaseT 4x4 4K Matrix Kit

SIIG HDMI HDBaseT 4x4 4K Matrix Kit

SKU: 1051078160      MFR: SIIG Inc

GTIN: 662774041964

Product Description

SIIG HDMI HDBaseT 4x4 4K Matrix Kit - 230ft (70m) @1080p & 131ft (40m) @4K Resolution

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H23W11-S1

Features

  • Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
  • Trouble free connection with display
  • Enjoy watching any class of content on 4096 x 2160 resolution

Product Details

Product TypeAudio/Video Switchbox
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution4096 x 2160
Maximum Operating Distance229.66 ft
Number of USB Ports1
Number of HDMI Inputs4
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Displays Supported4
Number of Input Devices Supported4
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports4
Country of OriginChina
Height1.1"
Width14.2"
Depth5.9"
Connectivity TechnologyCable
Brand NameSIIG
Form FactorRack-mountable
ManufacturerSIIG Inc
Product NameHDMI HDBaseT 4x4 4K Matrix Kit
Device SupportedDisplay
Manufacturer Part NumberCE-H23W11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

  • Select and switch between any of the 4 HDMI source devices to any of the 4 HDMI displays simultaneously
  • HDBaseT outputs supports transmission distances up to 230ft (70m) @1080p and 131ft (40m) @4K resolution
  • Compliant with HDMI 1.4 and HDCP 2.2
  • Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D resolution
  • 3 HDBaseT outputs over CAT cables with 3 included Receivers and 1 HDMI output
  • Supports Bi-directional IR control PoC powerful EDID management and manual and auto-detect HDCP management
  • Rack-mountable metal housing
  • Firmware upgradable through the Micro USB port
Package Contents
  • HDMI HDBaseT 4x4 4K Matrix Kit
  • 3 x HDBaseT Receiver
  • Power Adapter
  • IR Emitter Cable
  • IR Receiver Cable
  • IR Remote Control (without battery)
  • RS-232 Cable (Phoenix to 9-pin D-Sub)
  • 2 x Transmitter Mounting Ears
  • 6 x Screw
  • 4 x Transmitter Trapezoidal Plastic Pads
  • 6 x Receiver Mounting Ears
  • 6 x Screw
  • 12 x Receiver Round Plastic Pads
  • User Manual
Limited Warranty3 Year
Weight (Approximate)4.41 lb
View full details
$1,699.99 USD
$1,699.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

SIIG HDMI HDBaseT 4x4 4K Matrix Kit - 230ft (70m) @1080p & 131ft (40m) @4K Resolution

Manufacturer : SIIG Inc

Manufacturer Part No : CE-H23W11-S1

Features

  • Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
  • Trouble free connection with display
  • Enjoy watching any class of content on 4096 x 2160 resolution

Product Details

Product TypeAudio/Video Switchbox
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution4096 x 2160
Maximum Operating Distance229.66 ft
Number of USB Ports1
Number of HDMI Inputs4
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Displays Supported4
Number of Input Devices Supported4
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports4
Country of OriginChina
Height1.1"
Width14.2"
Depth5.9"
Connectivity TechnologyCable
Brand NameSIIG
Form FactorRack-mountable
ManufacturerSIIG Inc
Product NameHDMI HDBaseT 4x4 4K Matrix Kit
Device SupportedDisplay
Manufacturer Part NumberCE-H23W11-S1
Manufacturer Website Addresshttp://www.siig.com
Marketing Information

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

  • Select and switch between any of the 4 HDMI source devices to any of the 4 HDMI displays simultaneously
  • HDBaseT outputs supports transmission distances up to 230ft (70m) @1080p and 131ft (40m) @4K resolution
  • Compliant with HDMI 1.4 and HDCP 2.2
  • Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D resolution
  • 3 HDBaseT outputs over CAT cables with 3 included Receivers and 1 HDMI output
  • Supports Bi-directional IR control PoC powerful EDID management and manual and auto-detect HDCP management
  • Rack-mountable metal housing
  • Firmware upgradable through the Micro USB port
Package Contents
  • HDMI HDBaseT 4x4 4K Matrix Kit
  • 3 x HDBaseT Receiver
  • Power Adapter
  • IR Emitter Cable
  • IR Receiver Cable
  • IR Remote Control (without battery)
  • RS-232 Cable (Phoenix to 9-pin D-Sub)
  • 2 x Transmitter Mounting Ears
  • 6 x Screw
  • 4 x Transmitter Trapezoidal Plastic Pads
  • 6 x Receiver Mounting Ears
  • 6 x Screw
  • 12 x Receiver Round Plastic Pads
  • User Manual
Limited Warranty3 Year
Weight (Approximate)4.41 lb
