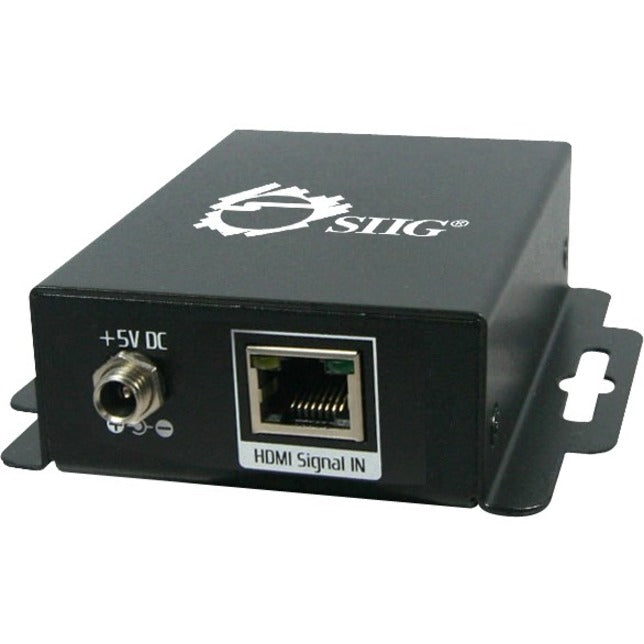

SIIG's HDMI over CAT5e Receiver is designed to receive and convert high definition video and multi-channel digital audio from HDBaseT incorporated transmitter transceiver or distribution amplifier and connect to an HDMI display via single CAT5/6 cable. This receiver supports video bandwidth up to 6.75Gbps with full HD 1080p resolution 3D video and uncompressed full-channel digital audio. To minimize possible signal distortion from long range transmission it features 8-level equalization switch to compensate for signal loss and eliminate digital noise. The wall-mountable metal housing is great for space-saving installation and provides better shielding from signal interference.

The HDMI over CAT5e Receiver is compatible with multiple SIIG's HDMI over CATx extender transceiver and distribution amplifier units. It is FCC and CE regulatory approved RoHS-compliant and backed by SIIG's limited 3-year warranty.

• HDMI over CAT5e Receiver
• Power Adapter
• Screw Kit
• User's Manual

Works with the following SIIG products:

• CE-H20311-S1: HDMI over CAT5e Transmitter
• CE-H20411-S1: HDMI over CAT5e Transceiver

• Receives HDMI signals from a transmitter or transceiver then connect to an HDMI display
• Supports HDMI Deep Color & 3D
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT5/6 cable transmission

Distance:

• 720p/1080i : 60m/200ft
• 1080p : 40m/130ft
