Adds one USB 3.0 Type-C two USB 3.0 Type-A and one B-key M.2 SSD slot to your PCIe enabled desktop computer

• Performance enhanced combination: Upgrade system performance and connection instantly with one M.2 slot (B key) one USB 3.0 Type-C and two USB 3.0 Type-A through a PCI Express slot
• Fully compliant with 2230 2242 2260 and 2280 form factor B key M.2 SATA SSDs via multiple mounting hole
• Versatile USB Type-C and Type-A connectivity combination expands system's connectivity options for maximum productivity
• Faster speeds: USB ports support UASP (USB Attached SCSI Protocol) which increases transfer speeds great for backing up data such as HD videos and high-resolution photos
• Each USB Type-A port delivers up to 900mA and Type-C up to 1.5A power output with Over-Current protection to further protect your connected peripherals
• Installs into standard height or low profile system chassis with the included bracket

• Chipset: Renesas uPD720201
• Bus connector: PCI Express x1
• Compatible with PCI Express 2.0
• Data transfer rate: Up to 5Gbps

• Type-C: Up to 1.5A
• Type-A: Up to 900mA
• Drive type: B key M.2 SATA SSD (not included)
• Not compatible with M.2 PCIe SSDs
• Compatible SSD drive form factor: 2230 / 2242 / 2260 / 2280 (30 / 42 / 60 / 80mm)

• 2 x USB 3.0 Type A Female Data
• 1 x USB 3.0 Type-C Female Data

• 1 x M.2 slot (B key)

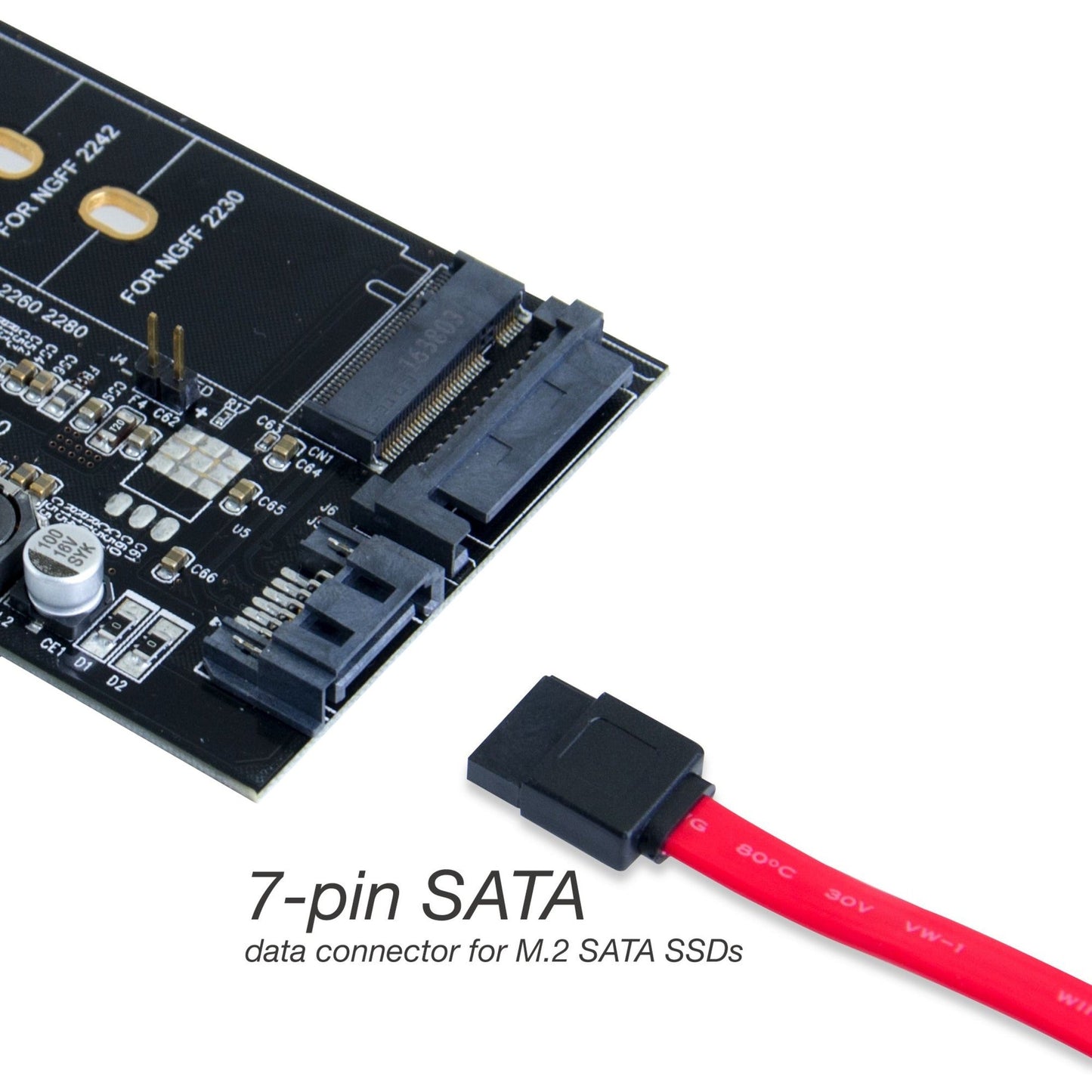

• 1 x 7-pin SATA data connector
• 1 x 15-pin SATA power connector
