Wallplate design allows you to select and switch between any of the 2 source devices 1 HDMI and 1 VGA to display on an HDMI display up to 30 meters with audio output and microphone inputs. Great for education boardrooms waiting rooms

• HDBaseT extender with wall plate designed Transmitter and Control Panel and wall mounting Receiver box
• Allows you to switch freely between your HDMI and VGA input device via push button
• IR receiver on the Control Panel controls a projector or other display device at the remote location
• Output resolutions: 1024x768 1280x720 1280x800 1360x768 1600x1200 1920x1080 or 1920x1200
• Supports transmission distance up to 98ft (30m) at 1920x1200 @60Hz over CAT cabling
• Supports PoC to power the Transmitter Control Panel and Receiver via a single power adapter connected to the Receiver
• Easy-to-use Control Panel for convenient device control in showrooms classrooms and boardrooms
• Supports IR learning of the display device's (projector TV etc.) IR remote for easy device control at the Control Panel

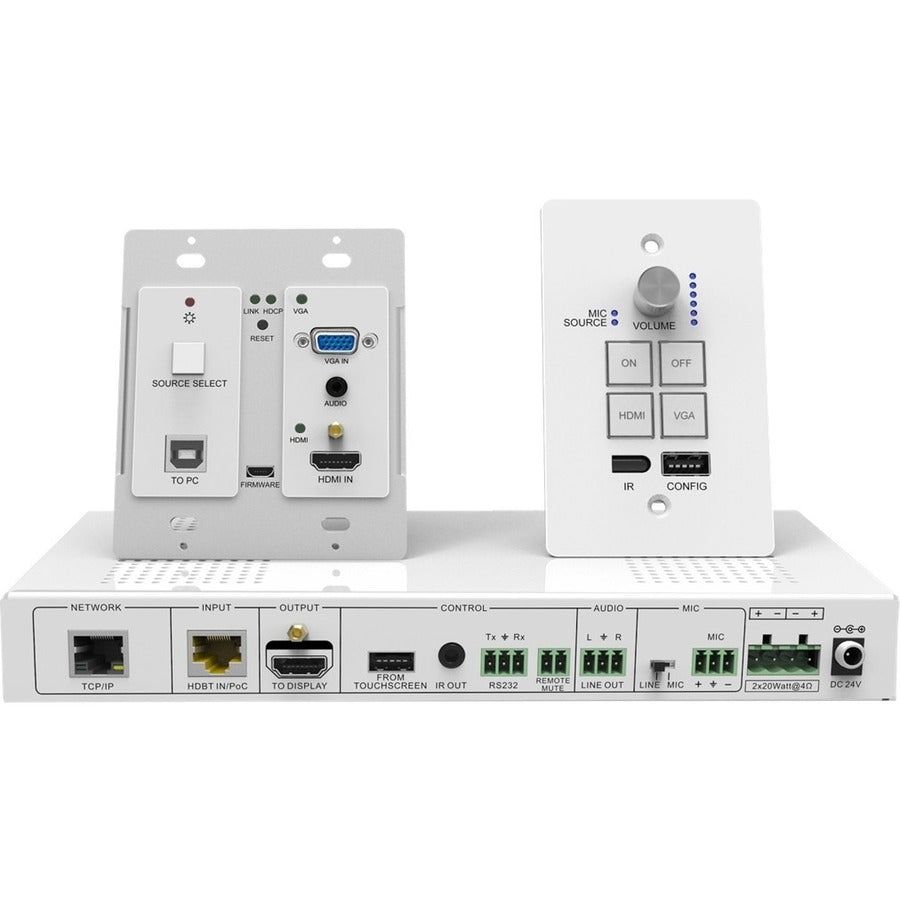

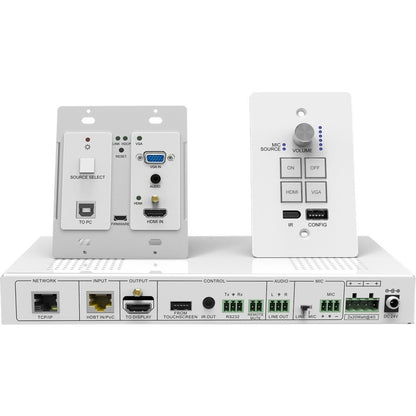

• Wallplate HDMI/VGA HDBaseT Kit (Transmitter / Receiver / Control Panel)
• Power adapter
• 2 x Receiver mounting ears
• 4 x Screws
• 4 x Receiver rubber feet
• 4-Pin Terminal Block (2x20Watt@4ohm port)
• 3 x 3-Pin Terminal Block Line out/RS-232
• 2-Pin Terminal Block Remote Mute port
• IR emitter
• USB A to B control cable
• White face plate
• User manual
