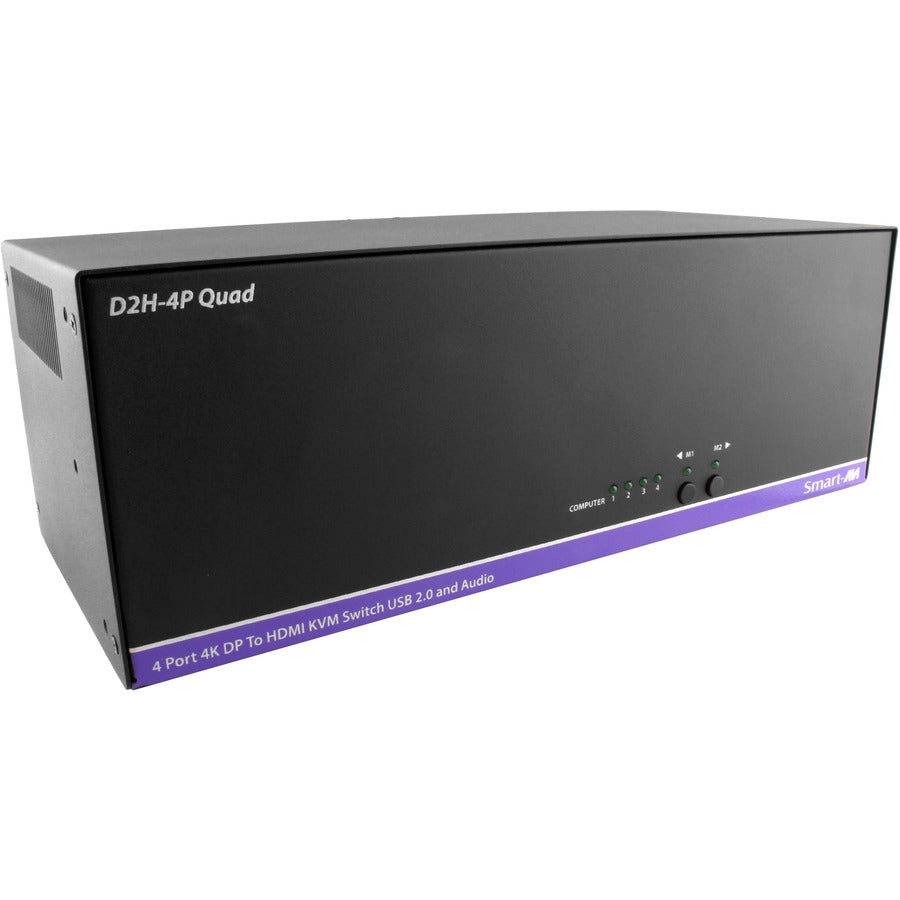

The D2H-4P-Quad is a dedicated multi-platform KVM switch capable of managing four computers with 16 4K ultra-HD video outputs through a single central workstation. Built with four 4K-ready HDMI outputs the D2H-4P-Quad is the first Displayport switch on the market to offer full video emulation directly from the device. Up until now DisplayPort switches lost emulated picture when disconnected from monitors leading to confusion and disorganization upon reconnecting. With D2H-4P-Quad full EDID-assisted HDMI video emulation ensures visual workspaces and screen resolutions are remembered every time: simple!

The D2H-4P-Quad is DisplayPort 1.2 and HDMI compliant supporting screen resolutions up to 4K Ultra-HD (3840x2160 @ 30Hz) for remarkable and responsive video emulation. Additionally the D2H-4P-Quad is USB peripheral-friendly compatible with printers keyboards and mice. The D2H-4P-Quad is also easy to control with both a simple front-panel interface as well as RS-232 functionality.

• Full EDID video emulation via four HDMI outputs
• KVM control between four connected computers from a single workstation
• Supports resolutions up to 4K (3840x2160 @30Hz)
• DisplayPort 1.2 and HDMI compliant
• Zero pixel loss with TMDS signal correction
• Supports all USB 2.0 devices including keyboard and mouse
• Supports Windows Mac and Linux
• Optionally rack mountable
• Hot key commands for quick channel selection
• Independent (asynchronous) switching of KVM and peripheral USB ports; users can scan a document and save in another computer
• Complete KVM emulation for error free booting
• Front panel keys for manual switching
• Full HDMI support and backwards compatible with prior DisplayPort versions

• 4-Port Quad-Head DisplayPort-to-HDMI KVM Switch
• PS5VDC4A Power Supply
