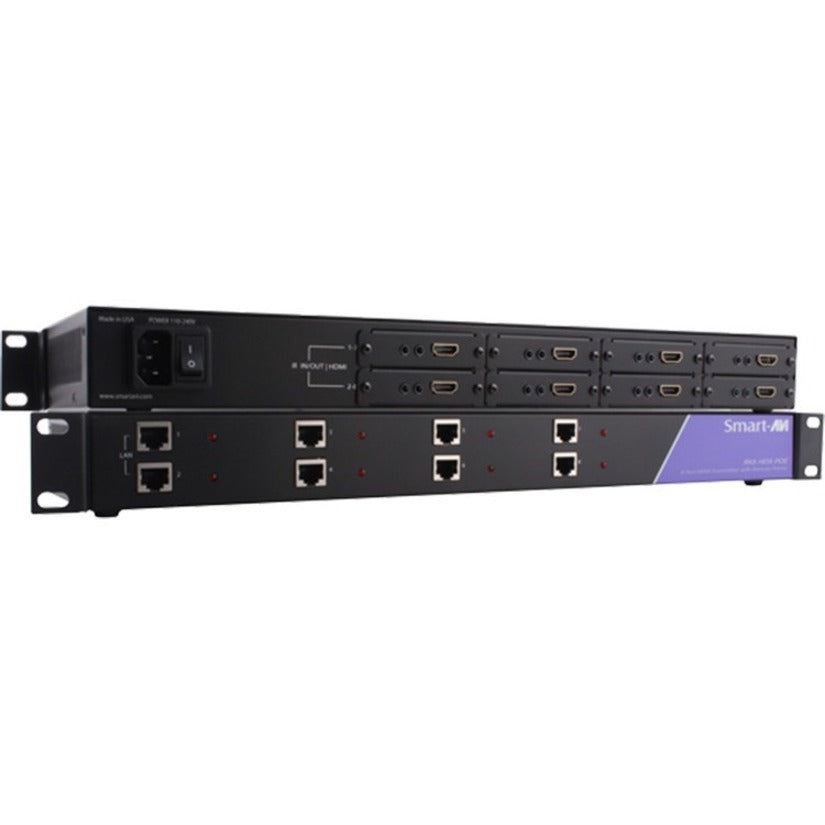

• SmartAVI Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
    SmartAVI Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
1 1

SmartAVI Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable

SmartAVI Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable

SKU: 1032275688      MFR: Smart Audio Video Innovation

GTIN: 813280011129

Product Description

SmartAVI Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable - 8 Input Device - 8 Output Device - 250 ft Range - 8 x Network (RJ-45) - 8 x HDMI In - 4K - Twisted Pair - Category 6 - Rack-mountable

Manufacturer : Smart Audio Video Innovation

Manufacturer Part No : RK8-HDX-POE-S

Features

  • Supports resolutions up to 4K Ultra HD (@30Hz)
  • Extends HDMI IR and Power Output over Cat5e/6
  • Extends IR Control Signals for Remote Control
  • Full HD support: 1080p@60Hz@48 bit/pixels
  • 1080p@120Hz@24 bit/pixels 3D 1080P60Hz and 4K x 2K@30Hz@24bit
  • Data Signals up to 3.4Gbps
  • HDMI 1.4 and HDCP Compliance
  • Power receiver from transmitter
  • Transmits Dolby TrueHD DTS-HD MA Audio Signals
  • Transmits 1080p Resolution Video up to 250 ft

Product Details

Product TypeVideo Extender Transmitter
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance250 ft
Number of Network (RJ-45) Ports8
Network (RJ-45)Yes
Number of HDMI Inputs8
HDMI InYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported8
Number of Input Devices Supported8
Transmitter Height17"
Transmitter Width6"
Transmitter Depth1.70"
Transmitter Weight (Approximate)3.26 lb
Country of OriginUnited States
Connectivity TechnologyWired
Brand NameSmartAVI
Form FactorRack-mountable
ManufacturerSmart Audio Video Innovation
Product ModelRK8-HDXPOE-TX
Product NameRack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
Manufacturer Part NumberRK8-HDX-POE-S
Manufacturer Website Addresshttp://www.smartavi.com
Marketing InformationThe RK8-HDX-POE is the perfect solution for extending HDMI signals to a remote location up to 250 feet away. It is the ideal way to consolidate up to eight workstation computers into one location. It is fully compatible with MAC PC and LINUX HDMI standards. Up to eight displays can be extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for rack components and having to find power strips or numerous power outlets for the adapters the SmartAVI rack series of extenders allows for up to eight inputs and eight outputs with only one power supply.

APPLICATIONS

MEDICAL FIELD - In the medical field where sensitive electronic devices are used isolating workstation computers can be a matter of safety. The RK8-HDX-POE allows the workstation computers to be housed in a central location away from sensitive devices.

INDUSTRIAL WORK AREAS - In industrial work areas that may be too harsh for a workstation computer the RK8-HDXPOE can consolidate the computers into a safe location.

DIGITAL SIGNAGE - When it comes to digital signage the RK8-HDX-POE is an excellent deployment option. With the RK8-HDX-POE up to eight digital signage devices can be centralized and secured from public access.

INFORMATION KIOSKS/DISPLAYS - As with most information booths and kiosks there is a risk of damage or theft. The RK8-HDX-POE is the best way to secure computer hardware by consolidating it to a secure location away from public access.
Package Contents
  • Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
  • CCWPWR
Limited Warranty1 Year
