Sonus SBC 5x10 Chassis

DSP20 modules are considered hot-swappable. They may be removed and replaced without powering down the node. For example inserting a DSP25 module which is administratively enabled results in the module booting up as normal without user further intervention. Appropriate alarms are raised and automatically cleared by the system. The current node continues to deliver service (if Active SBC) or provide protection (if Standby SBC).

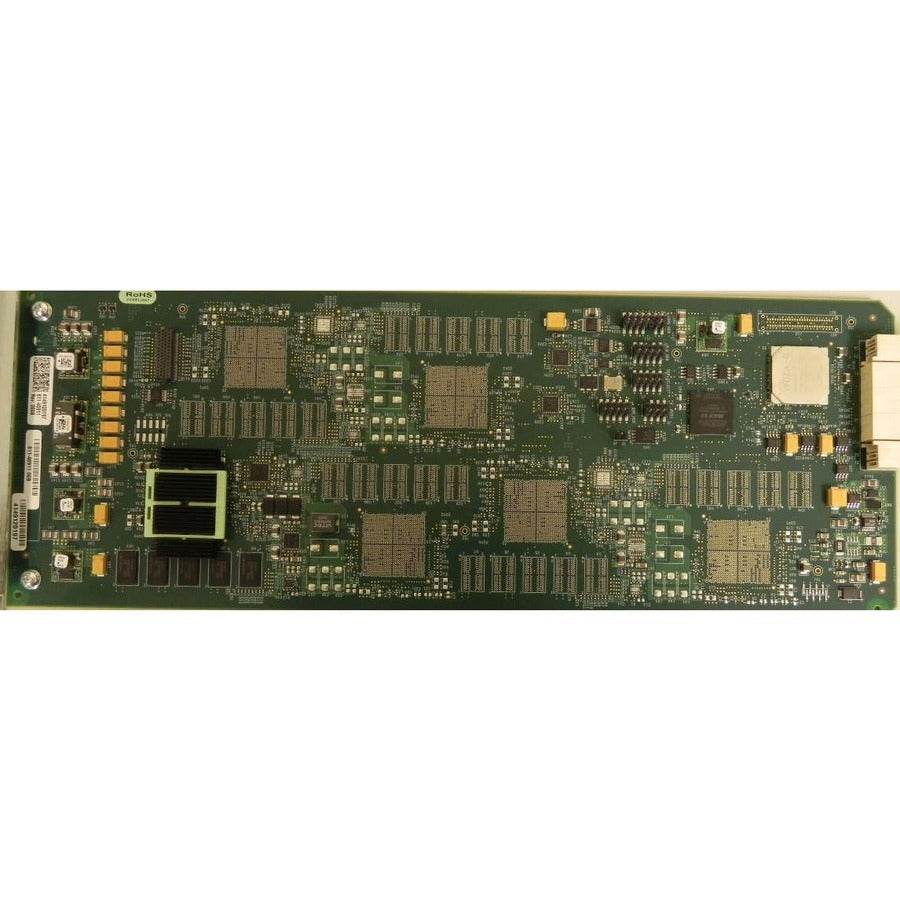

The DSP20 module is accessible from the rear of the chassis and connects to the DSP2x tray. The DSP20 module contains a single DSP device. The product codes for DSP20 modules are SBC-5X10-DSP20 and SBC-5X10-DSP20-S.

A DSP20 module is inserted/removed to either increase/decrease DSP capacity or to replace a faulty module. Before removing a DSP20 module the module must be software disabled using by CLI or EMA Navigator to avoid a node reboot. DSP20 modules are added to or removed from the SBC 5x10 platforms using one of the following methods:

• Operator inserts module(s) on active system.
• Operator performs a graceful system shutdown inserts/removes a module and powers on the system (preferred method).
