StarTech.com 16 Port Rackmount KVM Console w/ Cables - Integrated KVM Switch w/ 17" LCD - 1U LCD KVM Drawer 50000 MTBF - USB + VGA Support

StarTech.com 16 Port Rackmount KVM Console w/ Cables - Integrated KVM Switch w/ 17" LCD - 1U LCD KVM Drawer 50000 MTBF - USB + VGA Support

SKU: 1044909407      MFR: StarTech.com

GTIN: 065030872546

Product Description

StarTech.com 16 Port Rackmount KVM Console w/ Cables - Integrated KVM Switch w/ 17" LCD - 1U LCD KVM Drawer 50000 MTBF - USB + VGA Support - Rackmount KVM Console w/ 17in Active Matrix TFT LCD Monitor / 1280 x 1024 / 16 Port VGA KVM Switch / 1U LCD KVM Drawer / Set of 6ft Cables / Full Keyboard / Trackpad / OSD Hot Keys Admin/User Security - Mount Depth: 22in to 35in - 2-Yr Warranty

Manufacturer : StarTech.com

Manufacturer Part No : RKCONS1716K

Features

  • TECH SPECIFICATIONS: Rackmount KVM Console 17" Active Matrix TFT LCD Monitor 1280 x 1024 16 port VGA KVM switch w/ 6 ft. cables 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
  • PROFESSIONAL & SECURE: Customizable hot-keys on-screen display (OSD) multi-level user security user access levels / port permissions & auto scan

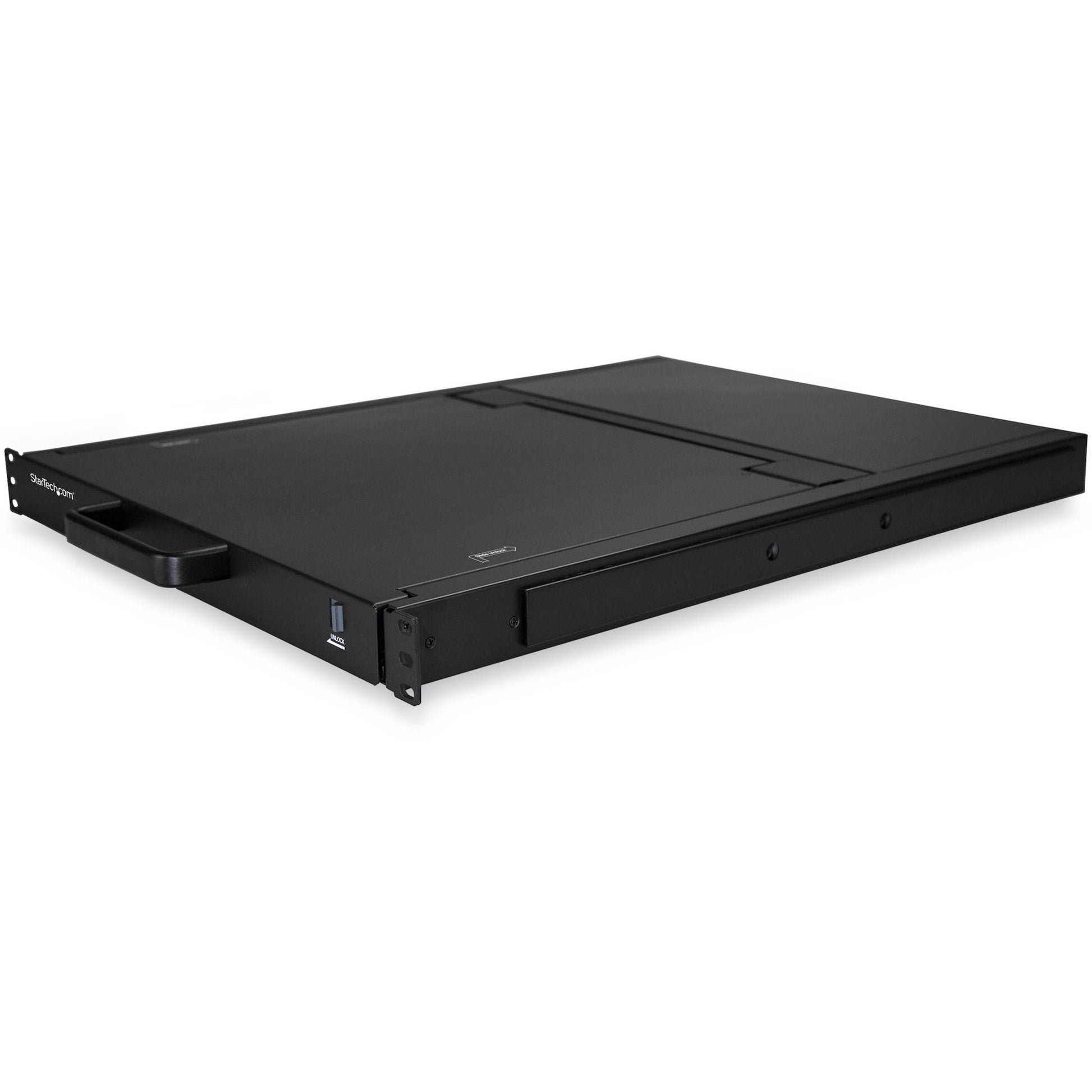

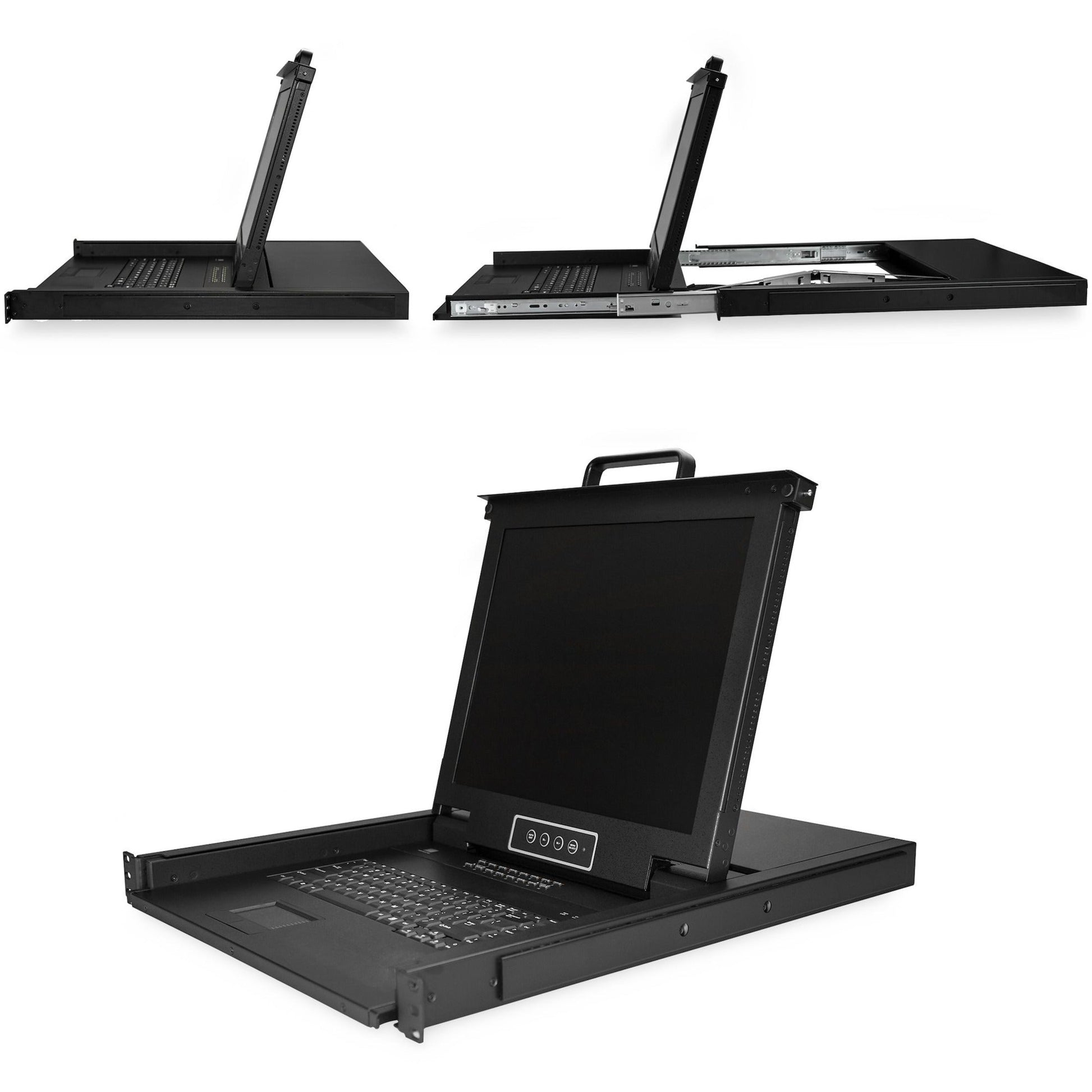

  • INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" [90 cm] (incl. mounting hardware)
  • HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50000 hours
  • TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support

Product Details

Product TypeLCD Rack Console
Environmentally FriendlyYes
Environmental CertificationRoHS
Display Screen TypeLCD
USBYes
VGAYes
Number of USB Ports2
Proprietary InterfaceYes
PS/2 PortYes
Number of PS/2 Ports2
Number of VGA Ports1
KVM SwitchYes
Number of Computers Supported16
Number of Proprietary Ports16
Country of OriginChina
Height1.7"
Width17.6"
Depth22.9"
ColorBlack
Screen ModeSXGA
Brand NameStarTech.com
Input Voltage Range100V AC to 240V AC
KeyboardYes
ManufacturerStarTech.com
Product Name16-Port Rackmount KVM Console with 17" Display
Pointing Device TypeTouchPad
Power Consumption23 W
Screen Size17"
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberRKCONS1716K
Manufacturer Website Addresshttp://www.startech.com
Marketing Information

Providing centralized control of up to 16 servers this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

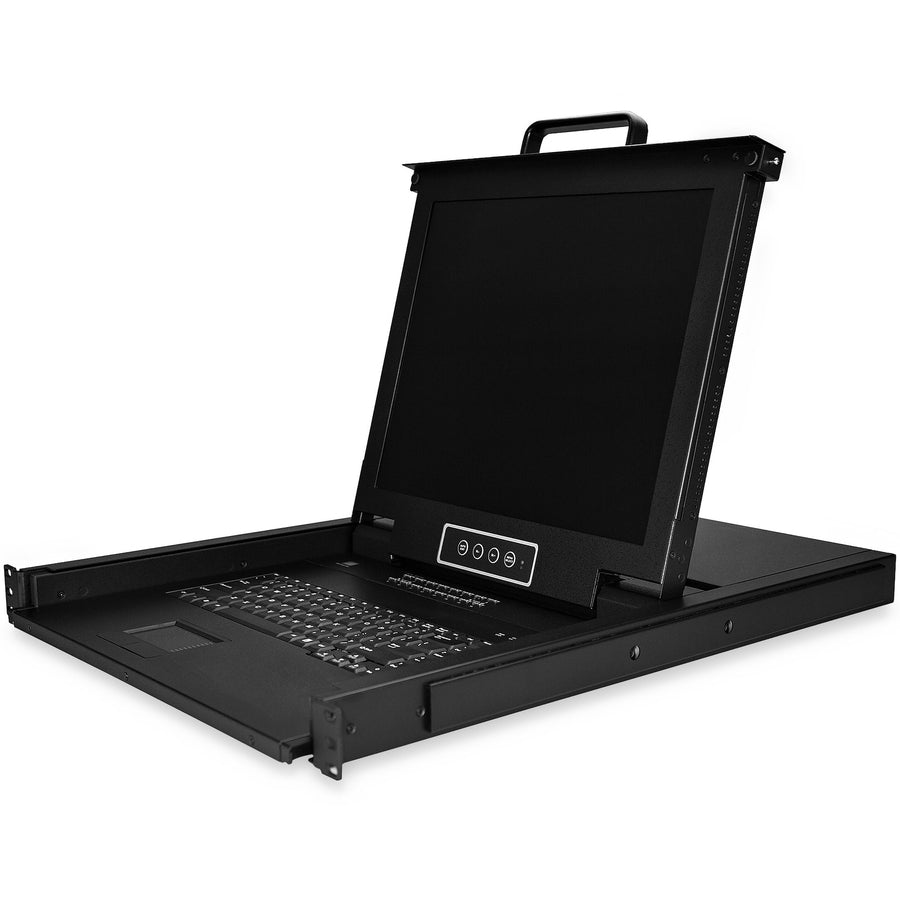

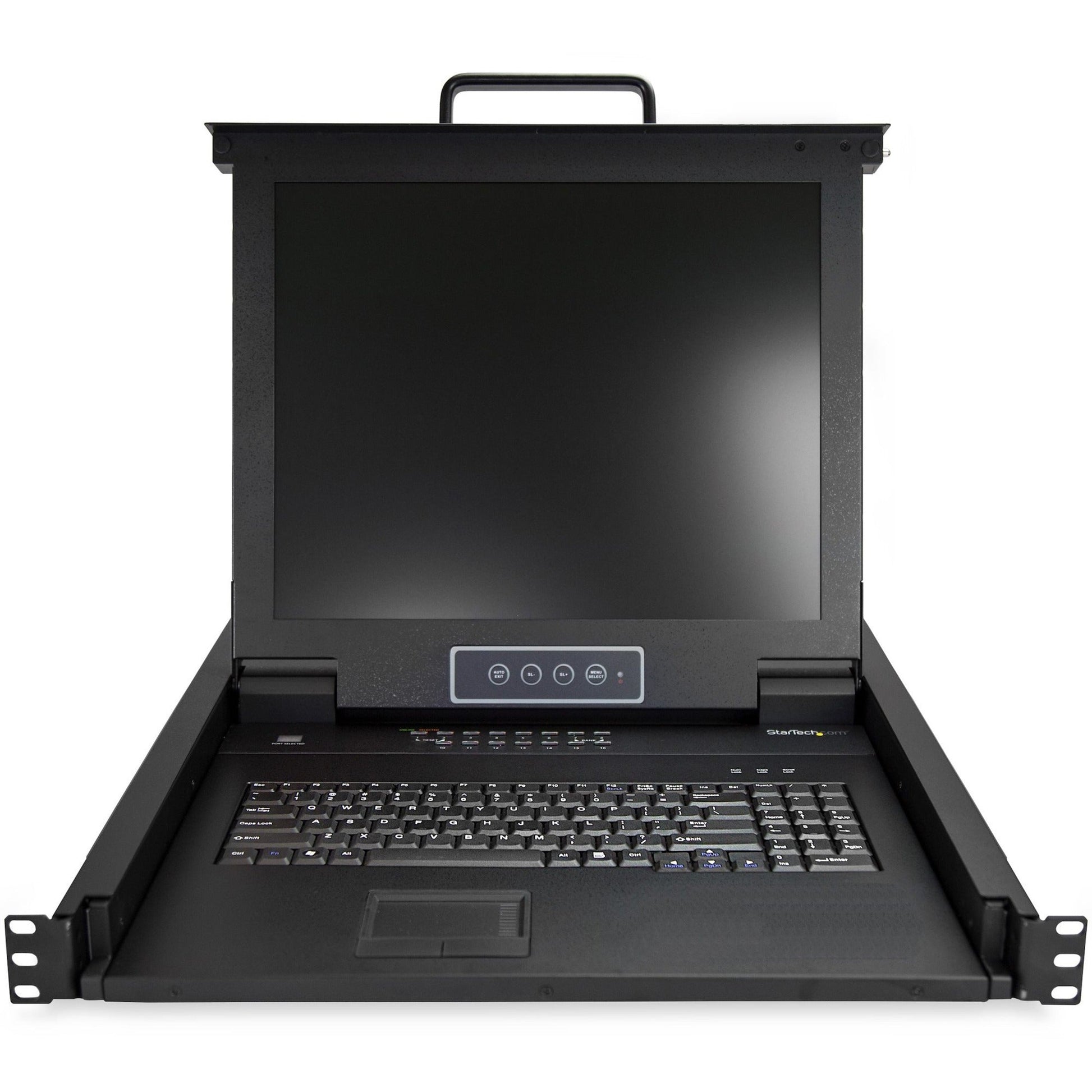

The 1U rackmount console features a built-in keyboard and a touchpad for intuitive control as well as a 17-inch LCD display that supports resolutions up to 1280x1024.

This 16-port KVM console comes with everything you need to set up right out of the box:

  • 16 VGA KVM Cables
  • Mounting Rails
  • M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display keyboard and trackpad all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Platform SupportedPC
Package Contents
  • 16-Port Rackmount KVM Console with 17" Display
  • 16 x KVM Cables
  • 8 x M5 Cage Nuts
  • 8 x M5 Screws
  • 5 x Regional Power Cords (NA JP UK EU ANZ)
  • 2 x Mounting Rails
  • 1 x Quick-Start Guide
Screen Resolution1280 x 1024
MaterialSteel
Limited Warranty2 Year
Weight (Approximate)30.30 lb
Rack Height1U
Input Voltage Range100 V AC - 240 V AC
